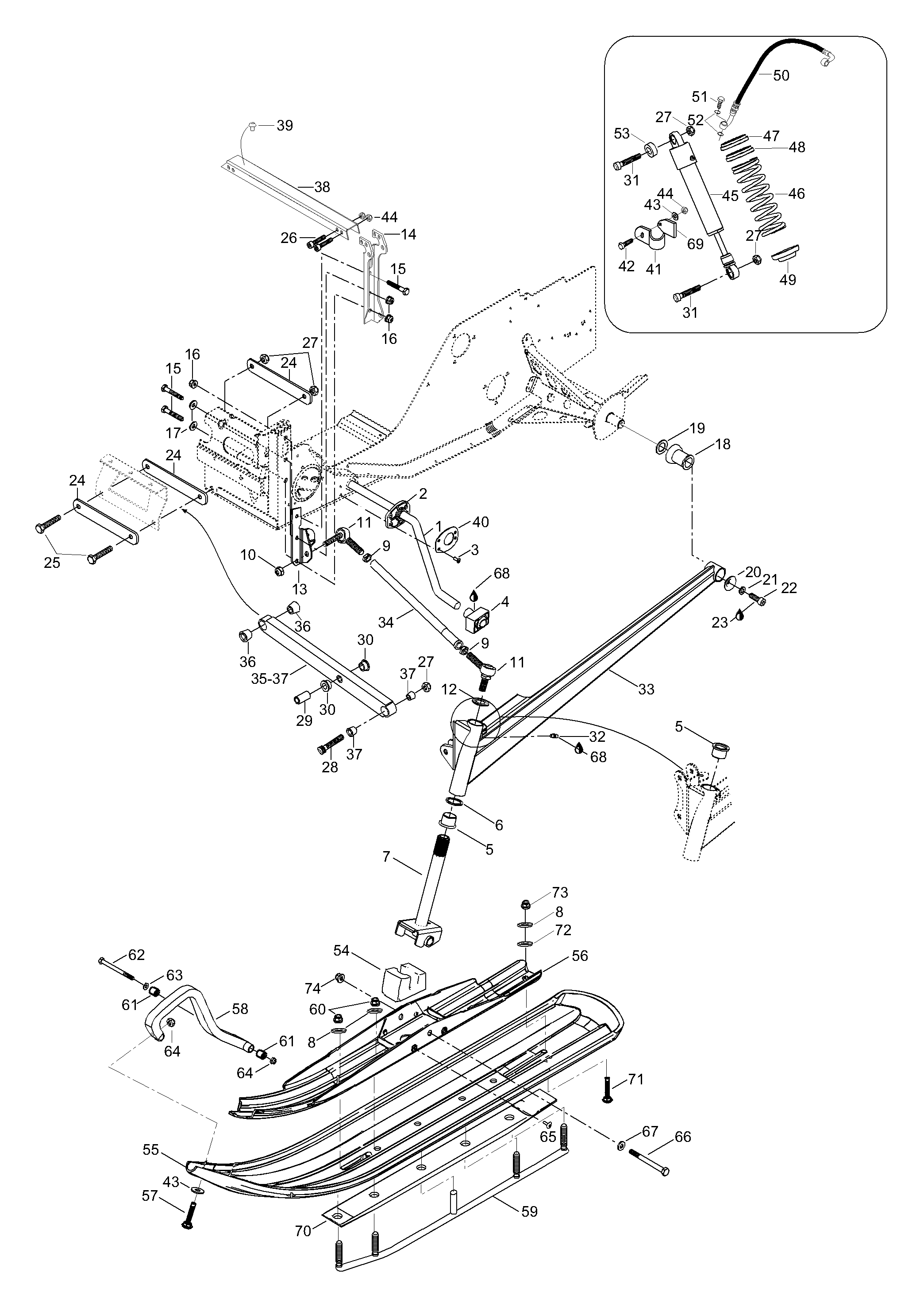

08- Front Suspension для BRP Lynx Rave Cross - 2002

  • №
    Артикул
    Название
  • 1
    5246797 Sway bar
    Sway bar
  • 2
    505070191 Sleeve
    Sleeve
  • 3
    36087 Rivet
    Rivet
  • 4
    505070117 Block-joint ball
    Block-joint ball
  • 5
    505070003 Bushing
    Bushing
  • 5
    23157 Shock LYNX. Includes items 5 thru 5
    Shock LYNX. Includes items 5 thru 5
  • 6
    505070004 Washer
    Washer
  • 7
    5245502 Ski leg
    Ski leg
  • 8
    20005 Washer
    Washer
  • 9
    33048 Jam nut M12
    Jam nut M12
  • 10
    33087 Jam nut elastic M12
    Jam nut elastic M12
  • 11
    31092 Ball joint
    Ball joint
  • 12
    20074 Lock washer
    Lock washer
  • 13
    5348064 R.H. Upper arm bracket
    R.H. Upper arm bracket
  • 13
    5348063 L.H. Upper arm bracket
    L.H. Upper arm bracket
  • 14
    5245488 Shock bracket
    Shock bracket
  • 14
    5246395 Shock bracket
    Shock bracket
  • 15
    40010 Screw M8x55
    Screw M8x55
  • 16
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 17
    20104 Washer, hardened
    Washer, hardened
  • 18
    570062200 Damper
    Damper
  • 19
    503146700 Washer
    Washer
  • 20
    506079600 Cup
    Cup
  • 21
    20014 Spring washer
    Spring washer
  • 22
    40289 Allen screw M8x25
    Allen screw M8x25
  • 23
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • 24
    5346112 Support plate
    Support plate
  • 25
    40814 Screw M10x110
    Screw M10x110
  • 26
    40345 Allen screw M6x40
    Allen screw M6x40
  • 27
    33012 Nut elastic M10
    Nut elastic M10
  • 28
    40136 Allen screw M10x50
    Allen screw M10x50
  • 29
    5441433 Bushing
    Bushing
  • 30
    31088 Bearing
    Bearing
  • 31
    40837 Allen screw M10x55
    Allen screw M10x55
  • 32
    34011 Grease fitting
    Grease fitting
  • 33
    5246683 Swing arm, R.H. red
    Swing arm, R.H. red
  • 33
    5246684 Swing arm, L.H. red
    Swing arm, L.H. red
  • 34
    5346122 Upper arm
    Upper arm
  • 35
    5246677 Lower arm, red. Includes items 35 thru 3
    Lower arm, red. Includes items 35 thru 3
  • 36
    5447769 Inner sleeve
    Inner sleeve
  • 37
    5447770 Outer sleeve
    Outer sleeve
  • 38
    5347134 Bracket
    Bracket
  • 39
    28143 Rubber damper
    Rubber damper
  • 40
    505070542 Plate
    Plate
  • 41
    5446702 Bracket
    Bracket
  • 42
    40846 Lock screw M6x16
    Lock screw M6x16
  • 43
    20009 Washer
    Washer
  • 44
    33010 Nut elastic M6
    Nut elastic M6
  • 46
    230057 Spring
    Spring
  • 47
    230053 Adjusting ring
    Adjusting ring
  • 48
    230054 Guide spring
    Guide spring
  • 49
    230076 Guide spring
    Guide spring
  • 50
    230062 Hose
    Hose
  • 51
    415093810 Screw
    Screw
  • 52
    415038700 O-ring
    O-ring
  • 53
    230055 Rubber bushing
    Rubber bushing
  • 54
    570070400 Stopper-ski
    Stopper-ski
  • 55
    5242167 Ski liner
    Ski liner
  • 56
    5247048 Bridge assy
    Bridge assy
  • 57
    40064 Locking screw M6x40
    Locking screw M6x40
  • 58
    572101000 Plastic handle
    Plastic handle
  • 59
    5344019 Runner
    Runner
  • 60
    33012 Elastic nut M10
    Elastic nut M10
  • 61
    39001 Hose
    Hose
  • 62
    40086 Screw M6x100
    Screw M6x100
  • 63
    20003 Washer
    Washer
  • 64
    33200 Elastic flanged nut M6
    Elastic flanged nut M6
  • 65
    36083 Rivet
    Rivet
  • 66
    40814 Screw M10x110
    Screw M10x110
  • 67
    20105 Washer, hardened
    Washer, hardened
  • 68
    413711500 Synthetic grease
    Synthetic grease
  • 69
    5448228 Bracket
    Bracket
  • 70
    5343731 Lathe
    Lathe
  • 71
    40857 Locking screw M10x30
    Locking screw M10x30
  • 72
    20047 Spring washer
    Spring washer
  • 73
    33004 Nut M10
    Nut M10
  • 74
    33074 Elastic flanged nut M10
    Elastic flanged nut M10
