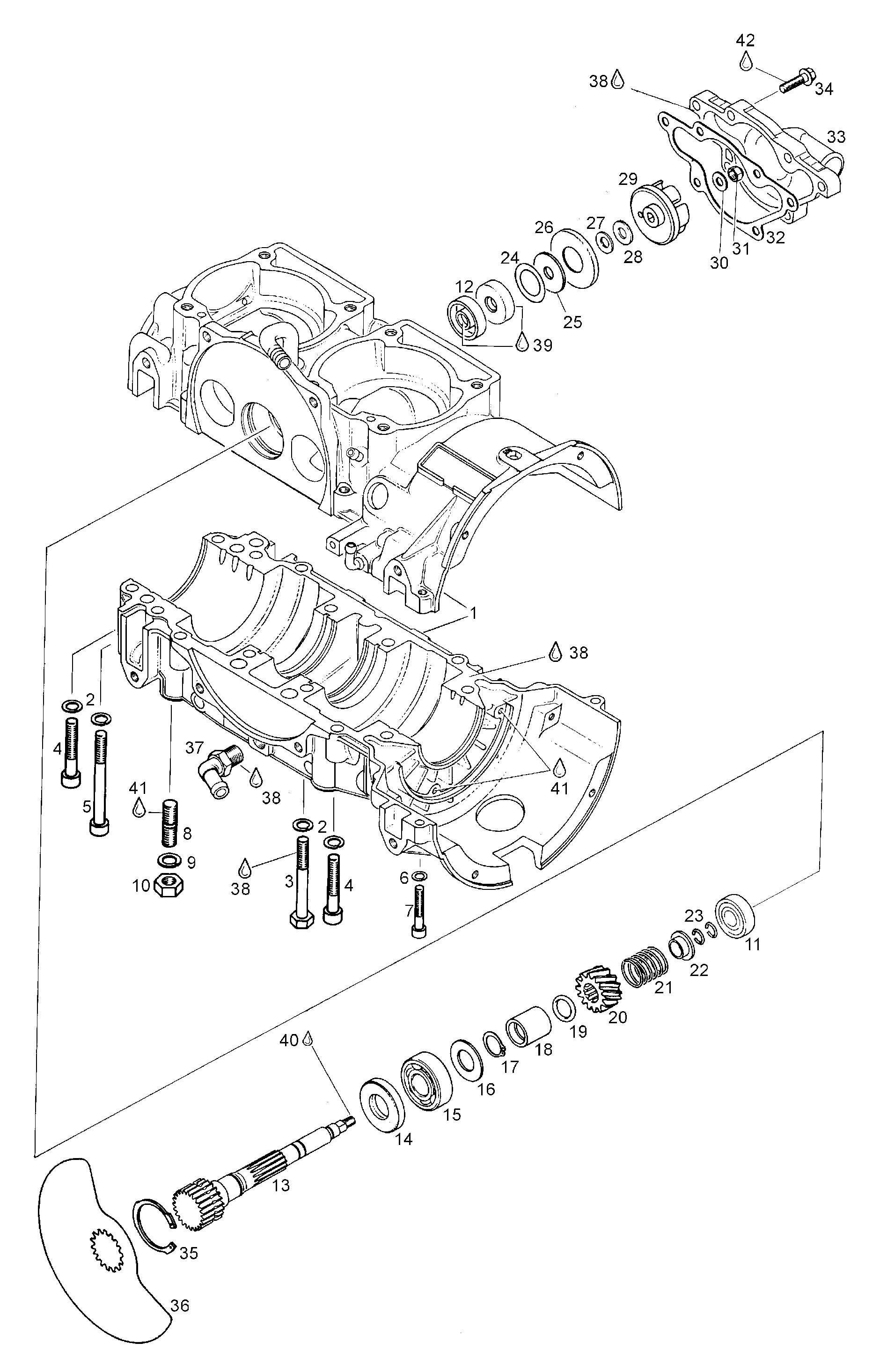

05- Crankcase для BRP Lynx G-Touring 600 - 1999

№

Артикул

Название
1

420888091 Crankcase assy. Includes items 1 thru 7

Crankcase assy. Includes items 1 thru 7
2

20014 Lock washer

Lock washer
3

420841301 Screw M8x65

Screw M8x65
4

420841561 Allen screw M8x45

Allen screw M8x45
5

420841831 Allen screw M8x75

Allen screw M8x75
6

20052 Lock washer

Lock washer
7

420241811 Allen screw M6x35

Allen screw M6x35
8

420940190 Stud M10x29

Stud M10x29
9

20015 Lock washer

Lock washer
10

33004 Nut M10

Nut M10
11

420932797 Bearing 6201-Z

Bearing 6201-Z
12

420850710 Oil seal

Oil seal
13

420837243 Rotary valve shaft

Rotary valve shaft
14

420930580 Oil seal

Oil seal
15

420932032 Bearing 6203

Bearing 6203
16

420227439 Shim

Shim
17

420845450 Sleeve

Sleeve
18

420847282 Shim

Shim
19

420831500 O-ring

O-ring
20

420935735 Rotary valve gear Z=14

Rotary valve gear Z=14
21

420938810 Spring

Spring
22

420827430 Spring holding cup

Spring holding cup
23

420845160 Circlip

Circlip
24

420944462 Shim, 0.5 mm

Shim, 0.5 mm
25

420850890 Rubber washer

Rubber washer
26

420827970 Supporting plate

Supporting plate
27

420227945 Thrust washer

Thrust washer
28

420227155 Friction washer

Friction washer
29

420922036 Impeller

Impeller
30

420244211 Washer

Washer
31

33010 Lock nut M6

Lock nut M6
32

420931355 Gasket

Gasket
33

420922551 Pump housing

Pump housing
34

420240031 Screw M6x25

Screw M6x25
35

420845260 Snap ring

Snap ring
36

420924502 Rotary valve, 159 degr.

Rotary valve, 159 degr.
37

420922245 Angular tube

Angular tube
38

420899784 Loctite 574/orange

Loctite 574/orange
39

420899010 Transmission oil

Transmission oil
40

420899788 Loctite 648/green

Loctite 648/green
41

420899785 Loctite 221/viol.

Loctite 221/viol.
42

420897651 Loctite 243/blue

Loctite 243/blue
