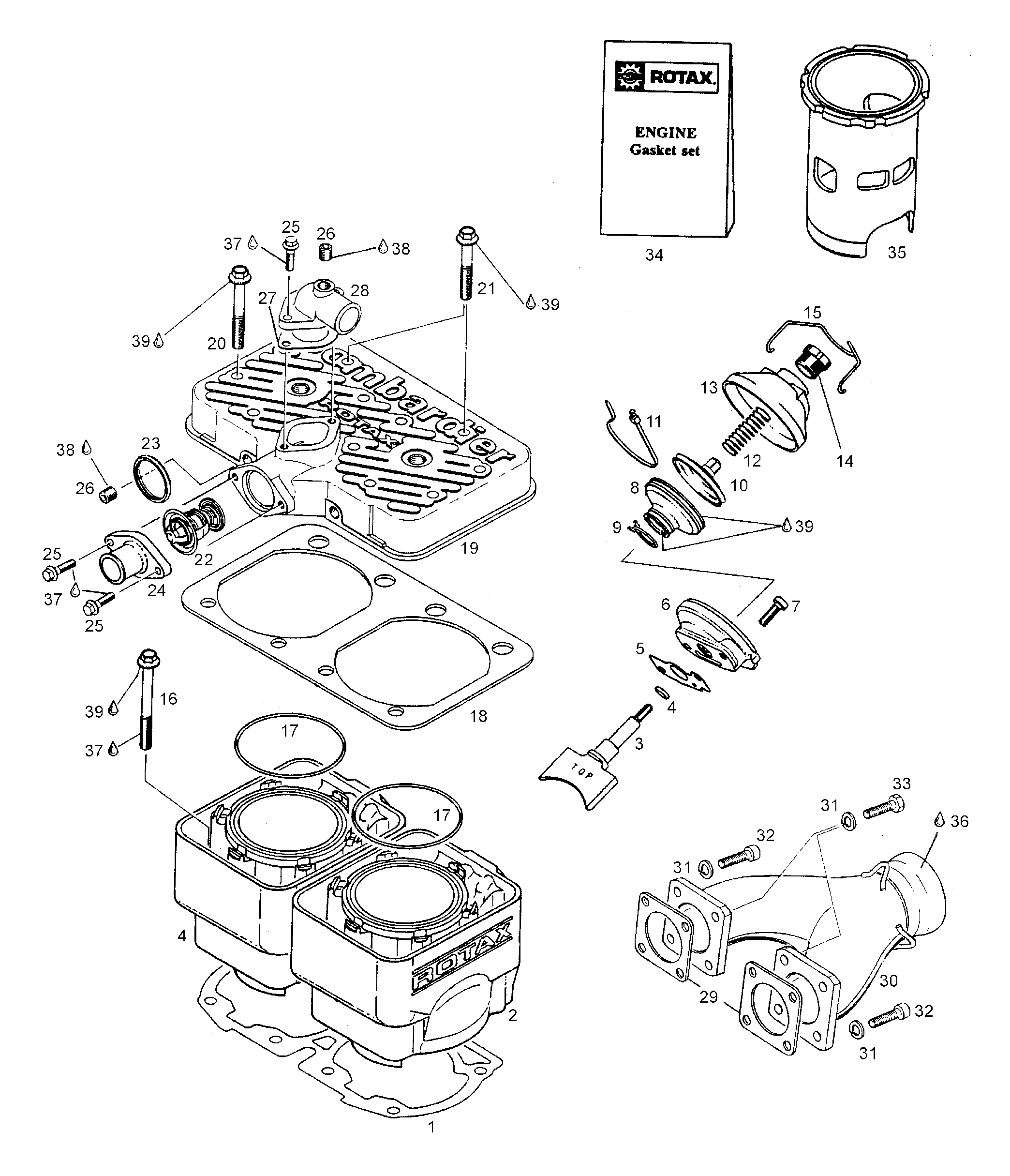

01- Cylinder для BRP Lynx G-Touring 600 - 1999
-
№АртикулНазвание
-
1420931185 Double gasket 0.3mmDouble gasket 0.3mm
-
2420923670 Cylinder with sleeve assyCylinder with sleeve assy
-
3420854310 Exhaust valveExhaust valve
-
4420430110 O-ringO-ring
-
5420230256 GasketGasket
-
6420253275 Valve rod housingValve rod housing
-
7420241236 Allen screw M6x16Allen screw M6x16
-
8420260721 BellowsBellows
-
9420838190 Clamp 21mmClamp 21mm
-
10420854447 Valve pistonValve piston
-
11420251920 Clamp 77mmClamp 77mm
-
12420239948 Compression springCompression spring
-
13420911551 Valve coverValve cover
-
14420241220 Adjustment screwAdjustment screw
-
15420838082 Spring clipSpring clip
-
16420440366 Collar hex.screw M8x90Collar hex.screw M8x90
-
17420850540 O-ringO-ring
-
18420850560 Rubber gasketRubber gasket
-
19420923053 Cylinderhead viper redCylinderhead viper red
-
20420841306 Collar hex.screw M8x65Collar hex.screw M8x65
-
21420941621 Collar hex.screw M8x56.2Collar hex.screw M8x56.2
-
22420922515 Thermostat 42 degr.Thermostat 42 degr.
-
23420931270 Thermostat gasketThermostat gasket
-
24420922025 Water outlet socketWater outlet socket
-
25420940566 Screw M6x20Screw M6x20
-
26420240480 Plug-screwPlug-screw
-
27420850336 Gasket 1.0mmGasket 1.0mm
-
28420922062 Bent outlet socketBent outlet socket
-
29420850552 GasketGasket
-
30420973982 Exhaust manifold assyExhaust manifold assy
-
3120052 Lock washerLock washer
-
3240276 Allen screw M6x25Allen screw M6x25
-
3340031 Hex. screw M6x25Hex. screw M6x25
-
34420997805 Gasket setGasket set
-
35420913088 Spare cylinder sleeveSpare cylinder sleeve
-
36420297434 Loctite anti-seizeLoctite anti-seize
-
37420899785 Loctite 221/viol.Loctite 221/viol.
-
38420899784 Loctite 574/orangeLoctite 574/orange
