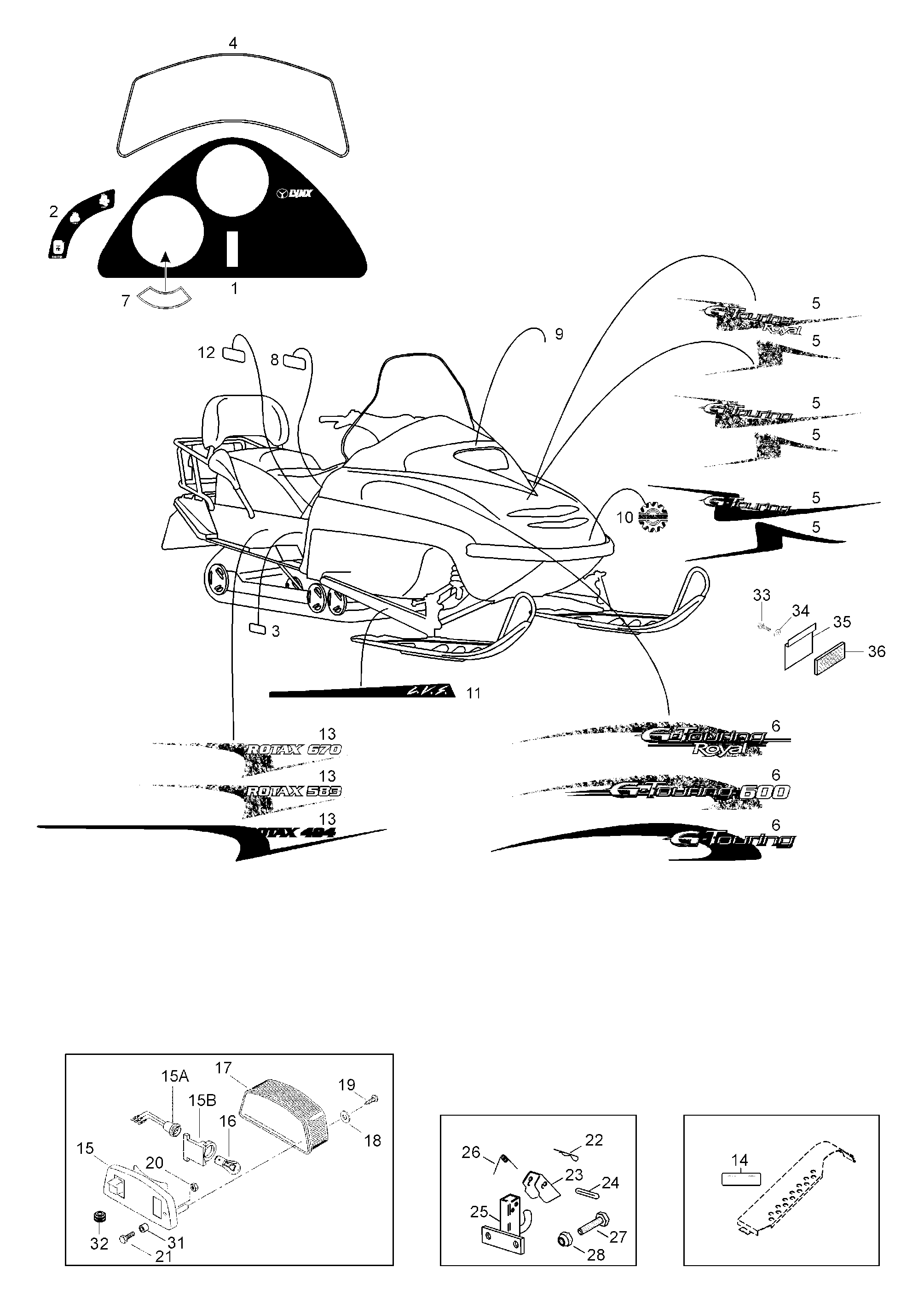

09- Decals для BRP Lynx G-Touring 500 - 1999
-
№АртикулНазвание
-
5144239 G-Touring 500, hood (1, 2, 5, 6, 9, 10)G-Touring 500, hood (1, 2, 5, 6, 9, 10)
-
5144240 G-Touring 500, frame ( 11 and 13)G-Touring 500, frame ( 11 and 13)
-
5341727 G-Touring 500, inst. dec. (3, 4, 12, 14, x)G-Touring 500, inst. dec. (3, 4, 12, 14, x)
-
15241570 Control panel decalControl panel decal
-
25444818 Grip heater decalGrip heater decal
-
3418002200 CE-decalCE-decal
-
45241725 Instruction DecalInstruction Decal
-
55244579 Decal upper, hood L.H.Decal upper, hood L.H.
-
55244580 Decal upper, hood R.H.Decal upper, hood R.H.
-
65244578 Decal G-Touring R.H.Decal G-Touring R.H.
-
65244577 Decal G-Touring L.H.Decal G-Touring L.H.
-
75443977 Decal RPM limitsDecal RPM limits
-
85344503 Instuction StickerInstuction Sticker
-
95444539 Decal LYNX, hoodDecal LYNX, hood
-
10516000282 Decal BombardierDecal Bombardier
-
115244584 Decal L.V.S. L.H.Decal L.V.S. L.H.
-
115244583 Decal L.V.S. R.H.Decal L.V.S. R.H.
-
12544068 Oil check decalOil check decal
-
135244582 Frame decal L.H.Frame decal L.H.
-
135244581 Frame decal R.H.Frame decal R.H.
-
14546820 Pulley decalPulley decal
-
15b414979411 Rubber damperRubber damper
-
155341214 Taillamp assy. Includes items 15 thru 20Taillamp assy. Includes items 15 thru 20
-
15414979400 Taillamp housingTaillamp housing
-
15a414979410 SocketSocket
-
16410504000 BulbBulb
-
17414513700 LensLens
-
18414516400 WasherWasher
-
1940613 ScrewScrew
-
2033200 Nut M6Nut M6
-
2140065 Screw M6x45Screw M6x45
-
2241029 Needle pinNeedle pin
-
225343991 Hitch assy. Includes items 22 thru 28Hitch assy. Includes items 22 thru 28
-
23545225 LatchLatch
-
2441012 CotterCotter
-
25545224 Draw hookDraw hook
-
26545693 SpringSpring
-
2740314 Screw M10x30Screw M10x30
-
2833012 Nut elastic M10Nut elastic M10
-
31549103 SleeveSleeve
-
3228032 GrommetGrommet
-
3340073 Screw 3.5x16Screw 3.5x16
-
3420037 WasherWasher
-
355442484 Bracket of reflectorBracket of reflector
-
3621060 Reflector Decal kitsReflector Decal kits
