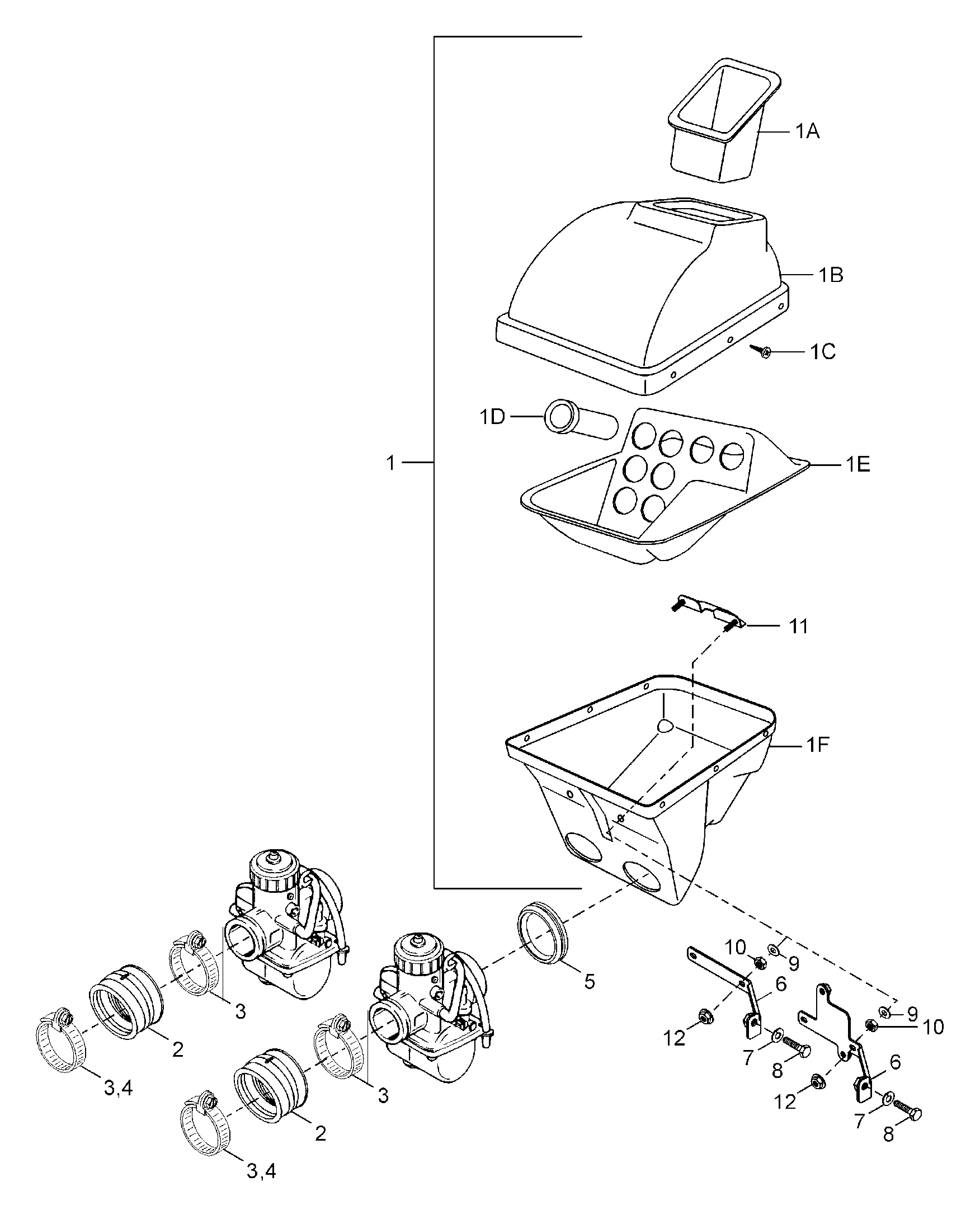

01- Air Silencer для BRP Lynx G-Touring 500 - 1999
-
№АртикулНазвание
-
15243650 Air silancerAir silancer
-
1a5343654 Suction InletSuction Inlet
-
1b5343652 Plastic CoverPlastic Cover
-
1c414644300 Dart windshieldDart windshield
-
1d5444445 Inlet pipeInlet pipe
-
1e5343653 Plastic WallPlastic Wall
-
1f5343651 Plastic BottomPlastic Bottom
-
2570039400 Rubber flangeRubber flange
-
3414532800 ClampClamp
-
4414532700 ClampClamp
-
5570039700 Intake adaptor VM34Intake adaptor VM34
-
65444000 SupportSupport
-
720061 Lock washerLock washer
-
840115 Screw M6x12Screw M6x12
-
920009 WasherWasher
-
1033010 Nut elastic M6Nut elastic M6
-
115443981 SupportSupport
