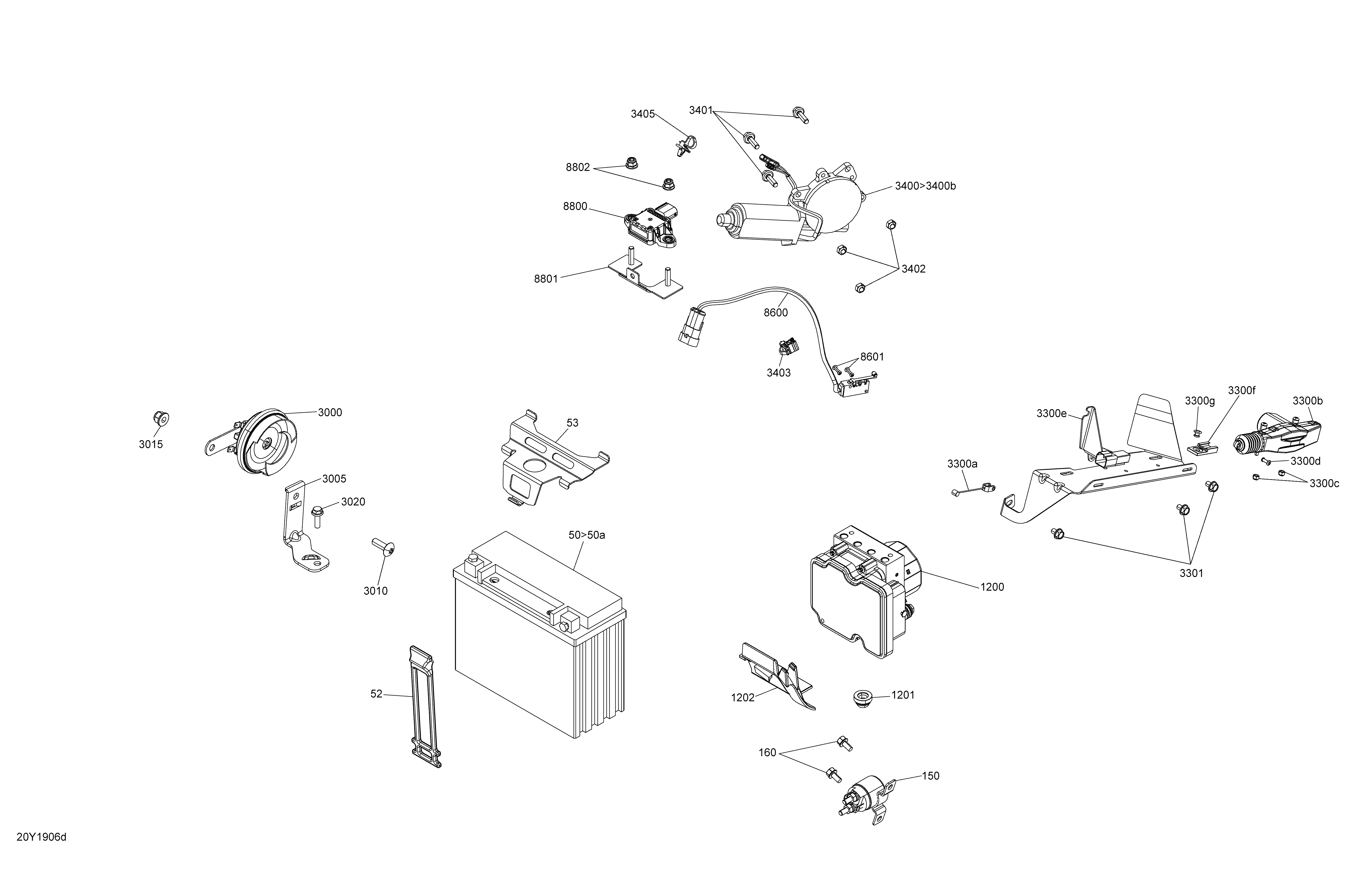

10- Electrical System - Frame для BRP 002 - RT STD SE6 - 2019

  • №
    Артикул
    Название
  • 50>50a
    219800460 Battery Kit. Except Autralia. Includes 50 TO 50a
    Battery Kit. Except Autralia. Includes 50 TO 50a
  • 50>50a
    410922962 Battery Kit. Autralia. Includes 50 TO 50a
    Battery Kit. Autralia. Includes 50 TO 50a
  • 50a
    250000282 Battery Bolt Kit. Contains 2 bolts, 2 washers and 2 nuts (not shown)
    Battery Bolt Kit. Contains 2 bolts, 2 washers and 2 nuts (not shown)
  • 52
    520000528 Latch
    Latch
  • 53
    710002893 Battery Holder
    Battery Holder
  • 150
    710001364 Starter Relay
    Starter Relay
  • 160
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 1200>1201
    219800437 VCM Module and Damper. Includes item 12200 TO 1201
    VCM Module and Damper. Includes item 12200 TO 1201
  • 1201
    710003279 Damper Shock
    Damper Shock
  • 1202
    710003996 VCM Harness Protector
    VCM Harness Protector
  • 3000
    710004940 Horn
    Horn
  • 3005
    710005769 Horn Support
    Horn Support
  • 3010
    250000874 Torx Truss M8 X 25
    Torx Truss M8 X 25
  • 3015
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 3020
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 3300a
    710002889 Reverse Cable
    Reverse Cable
  • 3300b
    710003776 Actuator
    Actuator
  • 3300c
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 3300d
    390403000 Pop Rivet 5/32
    Pop Rivet 5/32
  • 3300e
    710005642 Reverse Actuator Support
    Reverse Actuator Support
  • 3300f
    270000141 Clip
    Clip
  • 3300g
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 3301
    210261050 Screw-Forming Hex.Hd.Fl.Din.7500D
    Screw-Forming Hex.Hd.Fl.Din.7500D
  • 3400>3400b
    278003071 Control Gear Motor. Includes 3400 TO 3400b
    Control Gear Motor. Includes 3400 TO 3400b
  • 3400a
    278000231 Insulation Sheath. Not illustrated
    Insulation Sheath. Not illustrated
  • 3400b
    278000230 Male Terminal. Not illustrated
    Male Terminal. Not illustrated
  • 3401
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 3402
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 3403
    710002896 Tie-Rap Clip
    Tie-Rap Clip
  • 3405
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 8600
    710001379 Brake Pressure Switch Ass'y
    Brake Pressure Switch Ass'y
  • 8601
    293150150 Pop Rivet
    Pop Rivet
  • 8800
    710005658 Yaw Rate Sensor
    Yaw Rate Sensor
  • 8801
    710003494 YRS Holder
    YRS Holder
  • 8802
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
