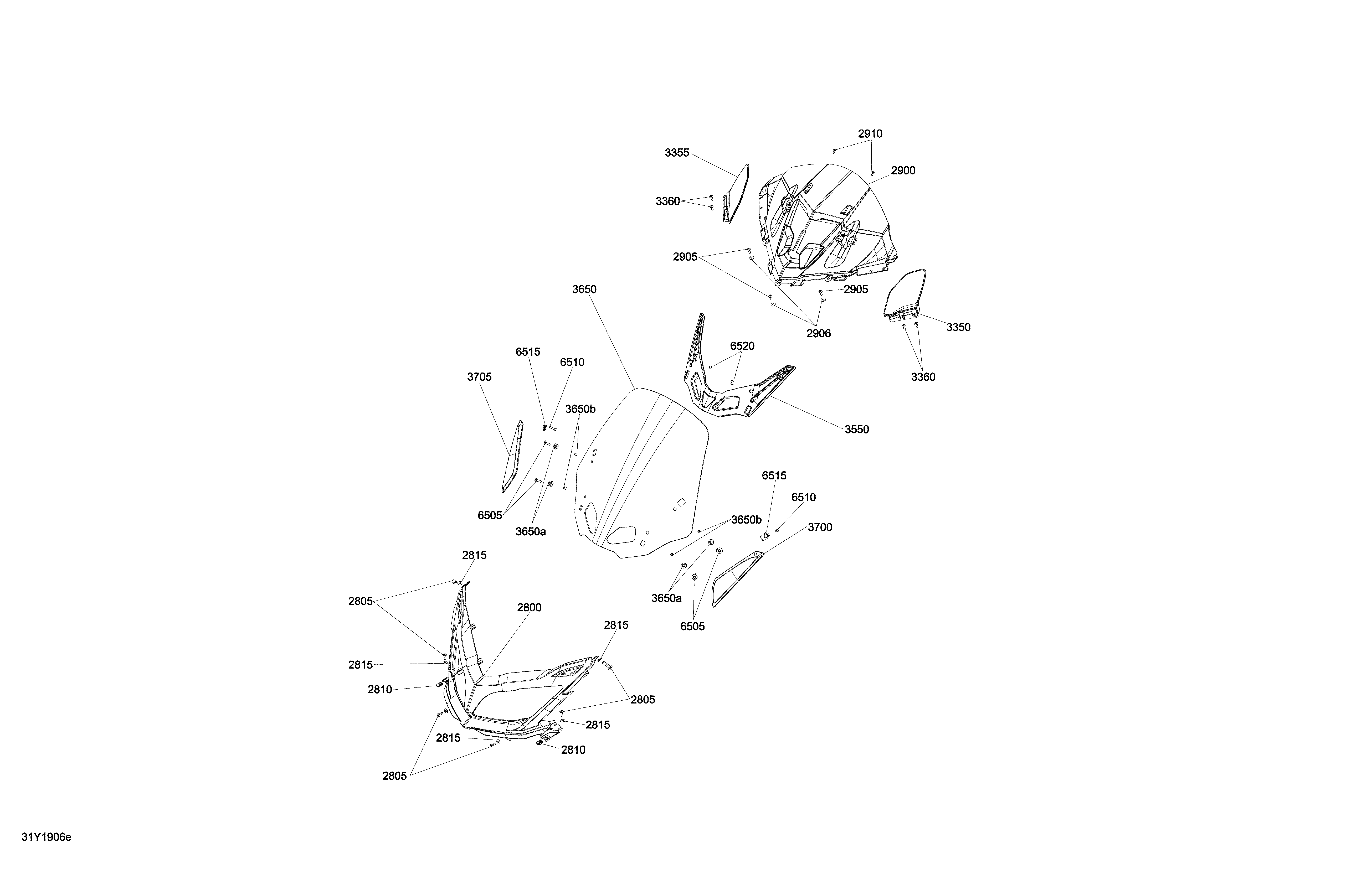

09- System Console - Upper Console & Windshield для BRP 002 - RT STD SE6 - 2019
-
№АртикулНазвание
-
2800705009172 Front Console,Vegas White B-313Front Console,Vegas White B-313
-
2805250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2810250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
2815250200164 Flat washer M6Flat washer M6
-
2900705006186 Upper ConsoleUpper Console
-
2905250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2906250200164 Flat washer M6Flat washer M6
-
2910250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
3350705002841 LH Upper Air DeflectorLH Upper Air Deflector
-
3355705002842 RH Upper Air DeflectorRH Upper Air Deflector
-
3360250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3550708400223 Windshield Suuport, Carbon BlackWindshield Suuport, Carbon Black
-
3650>3650b219400415 Windshield. Includes 3650 TO 3650bWindshield. Includes 3650 TO 3650b
-
3650a705003756 Windshield GrommetWindshield Grommet
-
3650b705005756 SleeveSleeve
-
3700705007411 Windshield Cap LH, Black Deep B-160Windshield Cap LH, Black Deep B-160
-
3705705007412 Windshield Cap RH, Black Deep B-160Windshield Cap RH, Black Deep B-160
-
6505250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6510250000455 Torx Screw M5 X 25Torx Screw M5 X 25
-
6515250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
6520705005666 Windshield Rubber BumperWindshield Rubber Bumper
