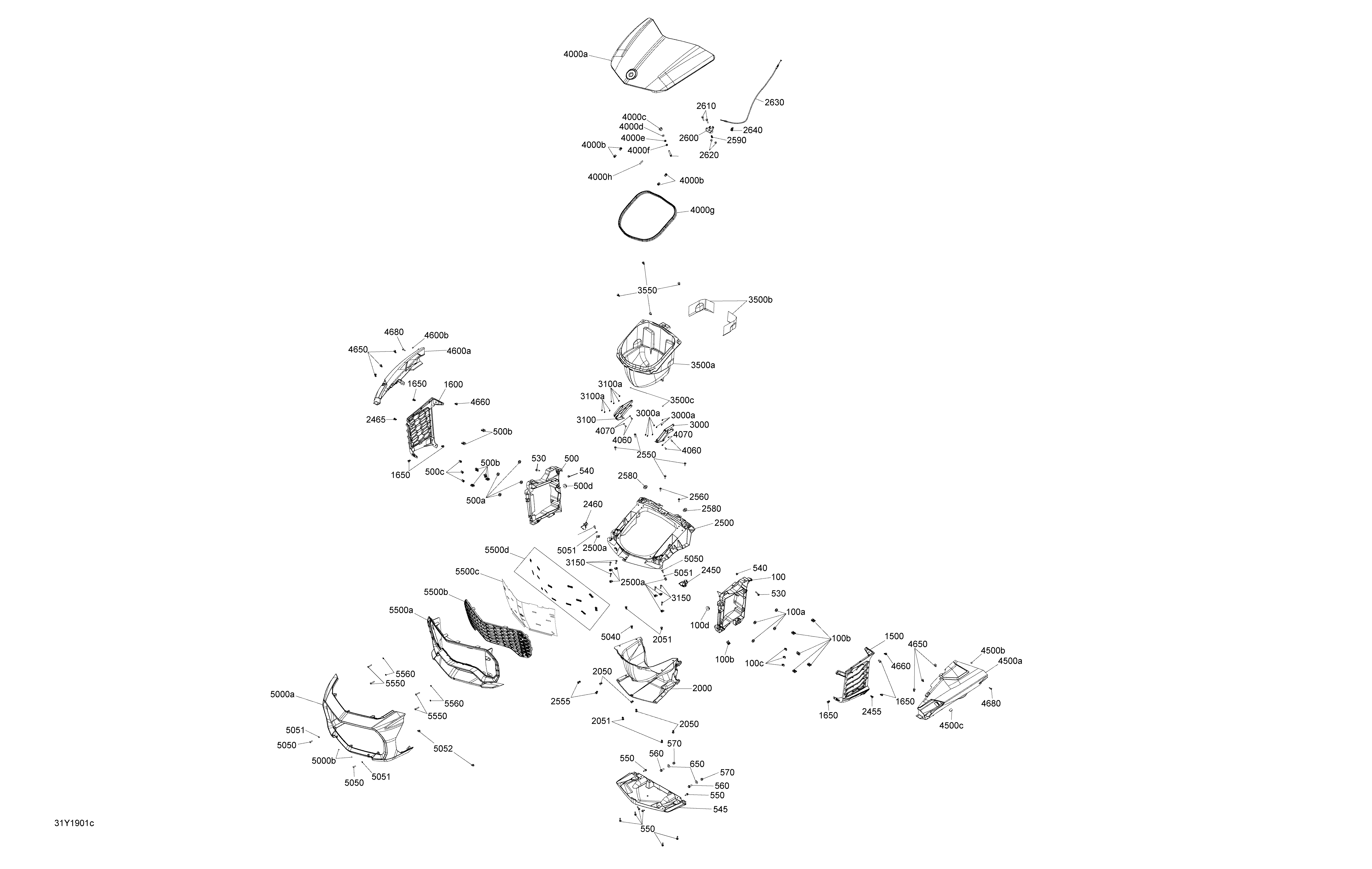

09- Body And Accessories Storage Tray для BRP 001 - F3 STD SE6 - 2019
-
№АртикулНазвание
-
100>100d708200437 LH Breakaway Lateral Tower Leg. Includes 100 TO 100dLH Breakaway Lateral Tower Leg. Includes 100 TO 100d
-
100a293720053 GrommetGrommet
-
100b250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
100c250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
100d414916600 Black Nylon CapBlack Nylon Cap
-
500>500d708200438 RH Breakaway Lateral Tower Leg. Includes 500 TO 500dRH Breakaway Lateral Tower Leg. Includes 500 TO 500d
-
500a293720053 GrommetGrommet
-
500b250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
500c250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
500d414916600 Black Nylon CapBlack Nylon Cap
-
530207663054 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
540233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
545708200405 Front Skid PlateFront Skid Plate
-
550207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
560207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
565234082430 Flat Washer M8Flat Washer M8
-
570233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1500708200860 LH Side VentLH Side Vent
-
1600708200859 RH Side VentRH Side Vent
-
1650293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2000708200362 Front Air Duct ModuleFront Air Duct Module
-
2050293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2051293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2450708200493 LH Front Union LinkLH Front Union Link
-
2455293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2460708200494 RH Front Union LinkRH Front Union Link
-
2465293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2500>2500a708200446 Sub-Frame Type Structure. Includes 2500 TO 2500aSub-Frame Type Structure. Includes 2500 TO 2500a
-
2500a250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
2550207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2555293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2560210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2580705000321 Oval WasherOval Washer
-
2590219400242 SpringSpring
-
2600705007379 LatchLatch
-
2610207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
2620233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
2630517305742 Hood CableHood Cable
-
2640710002896 Tie-Rap ClipTie-Rap Clip
-
3000>3000a708200673 LH Hood Hinge. Includes 3000 TO 3000aLH Hood Hinge. Includes 3000 TO 3000a
-
3000a234051670 Flat Washer M5Flat Washer M5
-
3100>3100a708200674 RH Hood Hinge. Includes 3100 TO 3100aRH Hood Hinge. Includes 3100 TO 3100a
-
3100a234051670 Flat Washer M5Flat Washer M5
-
3150250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
3500a708200403 Storage BinStorage Bin
-
3500b708200490 Heat Shield SheetHeat Shield Sheet
-
3500c705006633 StopperStopper
-
3550293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4000a708200379 Steel Black HoodSteel Black Hood
-
4000a708200544 Black Monolith HoodBlack Monolith Hood
-
4000a708200667 Oxford Blue - HoodOxford Blue - Hood
-
4000a708200677 Vegas White Pearl - HoodVegas White Pearl - Hood
-
4000a708200836 Liquid Titan - HoodLiquid Titan - Hood
-
4000a708200837 Phoenix Orange - HoodPhoenix Orange - Hood
-
4000b250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
4000c269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
4000d234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4000e232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
4000f705002223 LugLug
-
4000g293250047 Neoprene Seal ( 3Meter pack )Neoprene Seal ( 3Meter pack )
-
4000h515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
4060250000578 Torx Truss Screw M5 X 16, T25Torx Truss Screw M5 X 16, T25
-
4070234051670 Flat Washer M5Flat Washer M5
-
4500a708200450 Steel Black - LH Vent PanelSteel Black - LH Vent Panel
-
4500a708200558 Monolith Black-LH Vent PanelMonolith Black-LH Vent Panel
-
4500a708200669 Oxford Blue LH Vent PanelOxford Blue LH Vent Panel
-
4500a708200679 Vegas White Pearl-LH Vent PanelVegas White Pearl-LH Vent Panel
-
4500a708200840 Phoenix Orange-LH Vent PanelPhoenix Orange-LH Vent Panel
-
4500a708200841 Liquid Titan - LH Vent PanelLiquid Titan - LH Vent Panel
-
4500b705006634 Polyurethane StopperPolyurethane Stopper
-
4500c293830143 Rubber PadRubber Pad
-
4600a708200451 Steel Black - RH Vent PanelSteel Black - RH Vent Panel
-
4600a708200559 Monolith Black - RH Vent PanelMonolith Black - RH Vent Panel
-
4600a708200671 Oxford Blue - RH Vent PanelOxford Blue - RH Vent Panel
-
4600a708200680 Vegas White Pearl - RH Vent PanelVegas White Pearl - RH Vent Panel
-
4600a708200842 Phoenix Orange - RH Vent PanelPhoenix Orange - RH Vent Panel
-
4600a708200843 Liquide Titan - RH Vent PanelLiquide Titan - RH Vent Panel
-
4600b705006634 Polyurethane StopperPolyurethane Stopper
-
4650293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4660293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4680250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
5000a708200665 Oxford Blue Front FasciaOxford Blue Front Fascia
-
5000a708200691 Vegas White Front FasciaVegas White Front Fascia
-
5000a708200693 Monolith Black Front FasciaMonolith Black Front Fascia
-
5000a708200694 Steel Black - Front FasciaSteel Black - Front Fascia
-
5000a708200851 Phoenix Orange - Fronot FasciaPhoenix Orange - Fronot Fascia
-
5000a708200852 Liquid Titan - Front FasciaLiquid Titan - Front Fascia
-
5000b705006633 StopperStopper
-
5040293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5050250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
5051234051670 Flat Washer M5Flat Washer M5
-
5052293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5500a705009339 Molded FrameMolded Frame
-
5500b705009340 Front GrilleFront Grille
-
5500c708200937 GrilleGrille
-
5500d705004838 Flat ClipFlat Clip
-
5500f705004838 Flat ClipFlat Clip
-
5550250000732 Torx Screw NylonTorx Screw Nylon
-
5560234051670 Flat Washer M5Flat Washer M5
