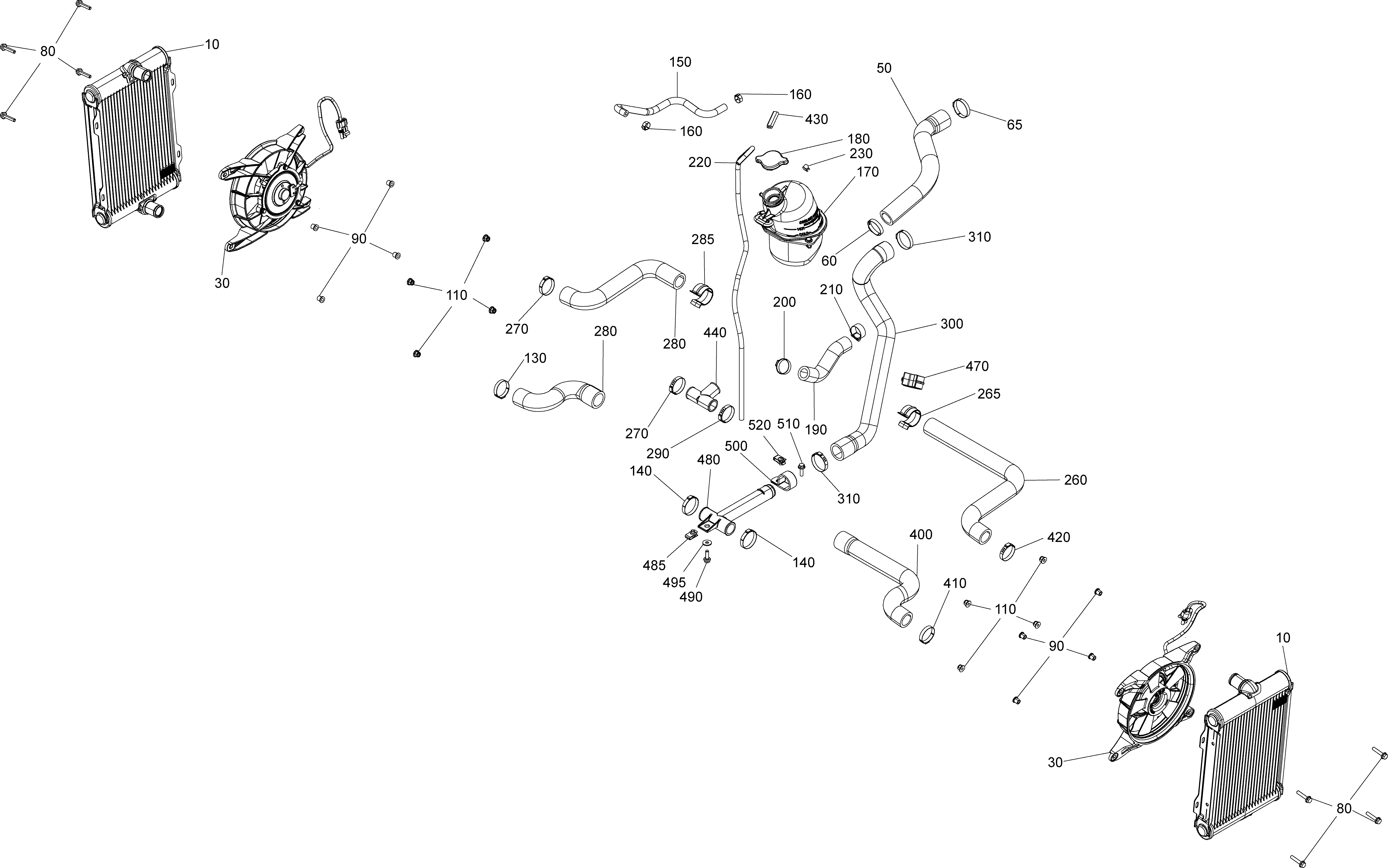

01- Cooling System для BRP 001 - F3 STD SE6 - 2019
-
№АртикулНазвание
-
10709200529 RadiatorRadiator
-
30709200523 FanFan
-
50709200871 Hose Water Pump Upper FormedHose Water Pump Upper Formed
-
60509000045 Oetiker Gear ClampOetiker Gear Clamp
-
65293650199 Oetiker Gear ClampOetiker Gear Clamp
-
80207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
90709200553 SleeveSleeve
-
110233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
120709200872 Hose Radiator Lower RH FormedHose Radiator Lower RH Formed
-
130509000045 Oetiker Gear ClampOetiker Gear Clamp
-
140293650199 Oetiker Gear ClampOetiker Gear Clamp
-
150709200873 Hose Coolant Tank Upper FormedHose Coolant Tank Upper Formed
-
160293650046 Oetiker ClampOetiker Clamp
-
170709200749 Tank CoolantTank Coolant
-
180509000187 Pressure CapPressure Cap
-
190709200874 Hose Coolant Tank Lower FormedHose Coolant Tank Lower Formed
-
200293650165 Oetiker Gear ClampOetiker Gear Clamp
-
210293650051 Tridon Gear ClampTridon Gear Clamp
-
220415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
-
230414554800 Spring ClampSpring Clamp
-
260709200875 Hose Radiator Upper LHHose Radiator Upper LH
-
265275500951 ClipClip
-
270509000045 Oetiker Gear ClampOetiker Gear Clamp
-
280709200876 Hose Radiator Upper RH FormedHose Radiator Upper RH Formed
-
285275500951 ClipClip
-
290509000045 Oetiker Gear ClampOetiker Gear Clamp
-
300709200877 Hose Water Pump Lower FormedHose Water Pump Lower Formed
-
310293650199 Oetiker Gear ClampOetiker Gear Clamp
-
380705003668 Oblong GrommetOblong Grommet
-
390293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
400709200878 Hose Radiator Lower LH FormedHose Radiator Lower LH Formed
-
410509000045 Oetiker Gear ClampOetiker Gear Clamp
-
420293650199 Oetiker Gear ClampOetiker Gear Clamp
-
430271001530 TrimTrim
-
440509000219 T-FittingT-Fitting
-
470275500590 RetainerRetainer
-
480709200580 ManifoldManifold
-
485250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
490207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
495234062410 Flat Washer 6 mmFlat Washer 6 mm
-
500293750035 Open ClampOpen Clamp
-
510207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
520250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
