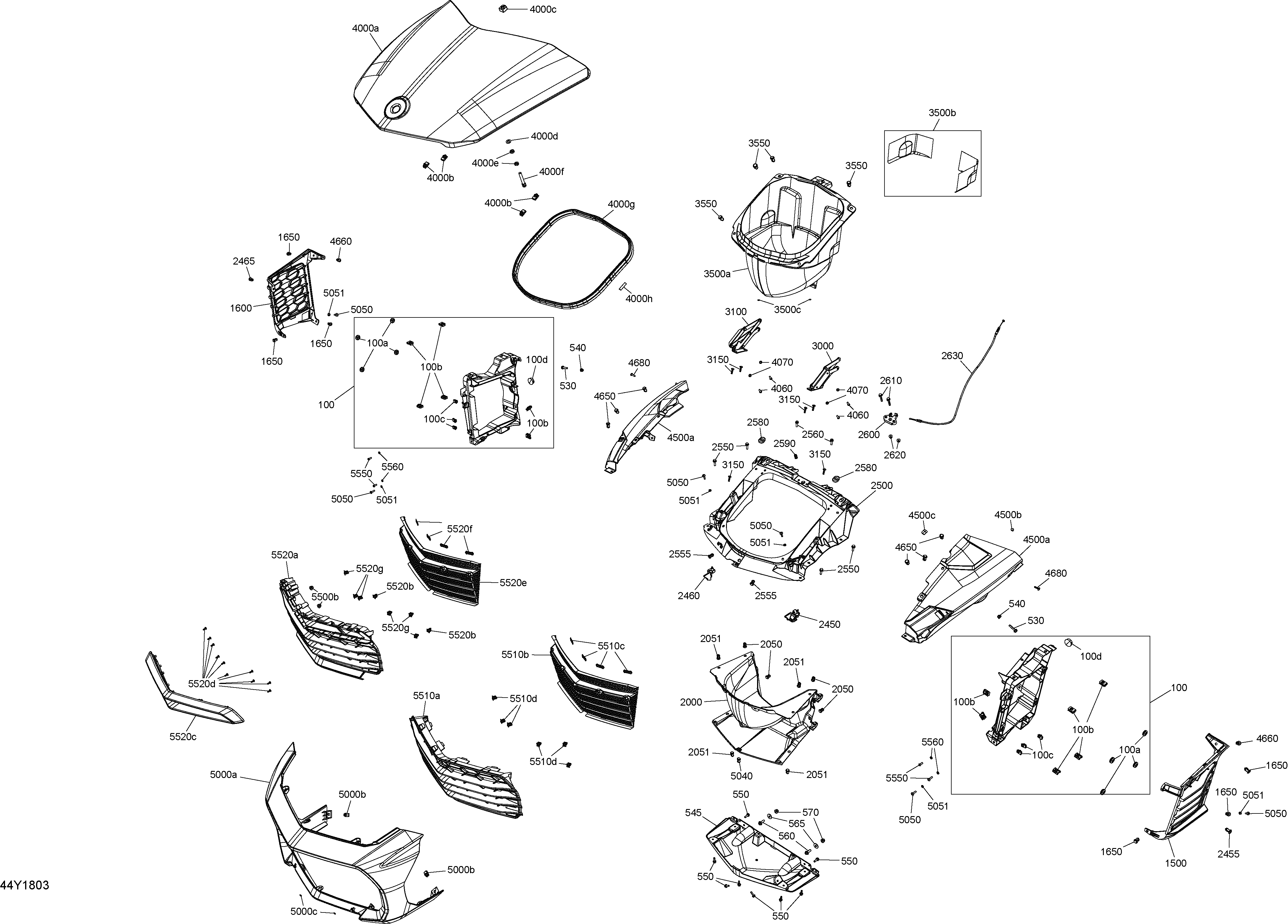

09- Storage Compartments для BRP F3 T SE6 - 2018
-
№АртикулНазвание
-
100708200437 LH Breakaway Lateral Tower Leg. Includes 100 to 100dLH Breakaway Lateral Tower Leg. Includes 100 to 100d
-
100708200438 RH Breakaway Lateral Tower Leg. Includes 100 to 100dRH Breakaway Lateral Tower Leg. Includes 100 to 100d
-
100a293720053 GrommetGrommet
-
100b250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
100c250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
100d414916600 Nylon CapNylon Cap
-
530207663054 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
540233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
545708200405 Front Skid PlateFront Skid Plate
-
550207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
560207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
565234082430 Flat Washer M8Flat Washer M8
-
570233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1500708200406 LH Front Lateral VentLH Front Lateral Vent
-
1600708200407 RH Front Lateral VentRH Front Lateral Vent
-
1650293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2000708200362 Front Air Duct ModuleFront Air Duct Module
-
2050293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2051293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2450708200493 LH Front Union LinkLH Front Union Link
-
2455293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2460708200494 RH Front Union LinkRH Front Union Link
-
2465293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2500708200446 Sub-Frame Type Structure. Includes 2500 to 2500aSub-Frame Type Structure. Includes 2500 to 2500a
-
2500a250100176 Panel Nut M5 X 0.8. Not ShownPanel Nut M5 X 0.8. Not Shown
-
2550207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2555293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
2560210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2580705000321 Oval WasherOval Washer
-
2590219400242 SpringSpring
-
2600705007379 LatchLatch
-
2610207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
2620233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2630517305742 Hood CableHood Cable
-
2640710002896 Tie-Rap Clip. Not ShownTie-Rap Clip. Not Shown
-
3000708200673 LH Hood Hinge. Includes 3000 to 3000aLH Hood Hinge. Includes 3000 to 3000a
-
3000a234051670 Flat Washer M5. Not ShownFlat Washer M5. Not Shown
-
3100708200674 RH Hood Hinge. Includes 3100 to 3100aRH Hood Hinge. Includes 3100 to 3100a
-
3100a234051670 Flat Washer M5. Not ShownFlat Washer M5. Not Shown
-
3150250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
3500a708200403 Storage BinStorage Bin
-
3500b708200490 Heat Shield SheetHeat Shield Sheet
-
3500c705006633 StopperStopper
-
3550293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4000a708200544 Black Monolith Hood. Model Monolith BlackBlack Monolith Hood. Model Monolith Black
-
4000a708200667 Oxford Blue Hood. Model Oxford BlueOxford Blue Hood. Model Oxford Blue
-
4000a708200677 Vegas White Pearl Hood. Model Vegas WhiteVegas White Pearl Hood. Model Vegas White
-
4000a708200803 Intense Red, Hood. Model Intense RedIntense Red, Hood. Model Intense Red
-
4000b250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
4000c269501943 Elastic Nut Housing M8. Includes 4000c to 4000c1Elastic Nut Housing M8. Includes 4000c to 4000c1
-
4000c1232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
4000d234081410 Flat Washer 8 mmFlat Washer 8 mm
-
4000e232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
4000f705002223 LugLug
-
4000g293250047 Neoprene SealNeoprene Seal
-
4000h515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
4060250000578 Torx Truss Screw M5 X 16Torx Truss Screw M5 X 16
-
4070234051670 Flat Washer M5Flat Washer M5
-
4500a708200558 Lh Vent Panel. Model Monolith BlackLh Vent Panel. Model Monolith Black
-
4500a708200669 Oxford Blue LH Vent Panel. Model Oxford BlueOxford Blue LH Vent Panel. Model Oxford Blue
-
4500a708200679 Vegas White Pearl LH Vent Fairing. Model Vegas WhiteVegas White Pearl LH Vent Fairing. Model Vegas White
-
4500a708200804 Intense Red, LH Vent Panel. Model Intense RedIntense Red, LH Vent Panel. Model Intense Red
-
4500a708200559 Rh Vent Panel. Model Monolith BlackRh Vent Panel. Model Monolith Black
-
4500a708200671 Oxford Blue RH Vent Panel. Model Oxford BlueOxford Blue RH Vent Panel. Model Oxford Blue
-
4500a708200680 Vegas White Pearl RH Vent Fairing. Model Vegas WhiteVegas White Pearl RH Vent Fairing. Model Vegas White
-
4500a708200805 Intense Red, RH Vent Panel. Model Intense RedIntense Red, RH Vent Panel. Model Intense Red
-
4500b705006634 Polyurethane StopperPolyurethane Stopper
-
4500c293830143 Rubber PadRubber Pad
-
4650293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4660293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4680250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
5000a708200665 Oxford Blue Front FasciaOxford Blue Front Fascia
-
5000a708200666 Circuit Yellow Front FasciaCircuit Yellow Front Fascia
-
5000a708200691 Vegas White Front FasciaVegas White Front Fascia
-
5000a708200693 Monolith Black Front FasciaMonolith Black Front Fascia
-
5000a708200694 Front FasciaFront Fascia
-
5000a708200747 Jet Black, Front FasciaJet Black, Front Fascia
-
5000a708200806 Front FasciaFront Fascia
-
5000b250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5000c705006633 StopperStopper
-
5040293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5050250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
5051234051670 Flat Washer M5Flat Washer M5
-
5520a708200404 Front GrillFront Grill
-
5520b517302785 ClipClip
-
5520c708200468 Front Mouth. P-T&FB-393. Modele Noir MonolitheFront Mouth. P-T&FB-393. Modele Noir Monolithe
-
5520c708200533 Hyper Silver Front Grill Trim. P-T&FB-313. Modele Blanc VegasHyper Silver Front Grill Trim. P-T&FB-313. Modele Blanc Vegas
-
5520c708200533 Hyper Silver Front Grill Trim. P-T&FB-372. Modele Rouge IntenseHyper Silver Front Grill Trim. P-T&FB-372. Modele Rouge Intense
-
5520c708200533 Hyper Silver Front Grill Trim. P-T&FB-406. Modele Bleu OxfordHyper Silver Front Grill Trim. P-T&FB-406. Modele Bleu Oxford
-
5520d250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
5520e708200393 Front Deflector GrillFront Deflector Grill
-
5520f705004838 Flat ClipFlat Clip
-
5520g517302785 ClipClip
-
5550250000578 Torx Truss Screw M5 X 16Torx Truss Screw M5 X 16
-
5560234051670 Flat Washer M5Flat Washer M5
