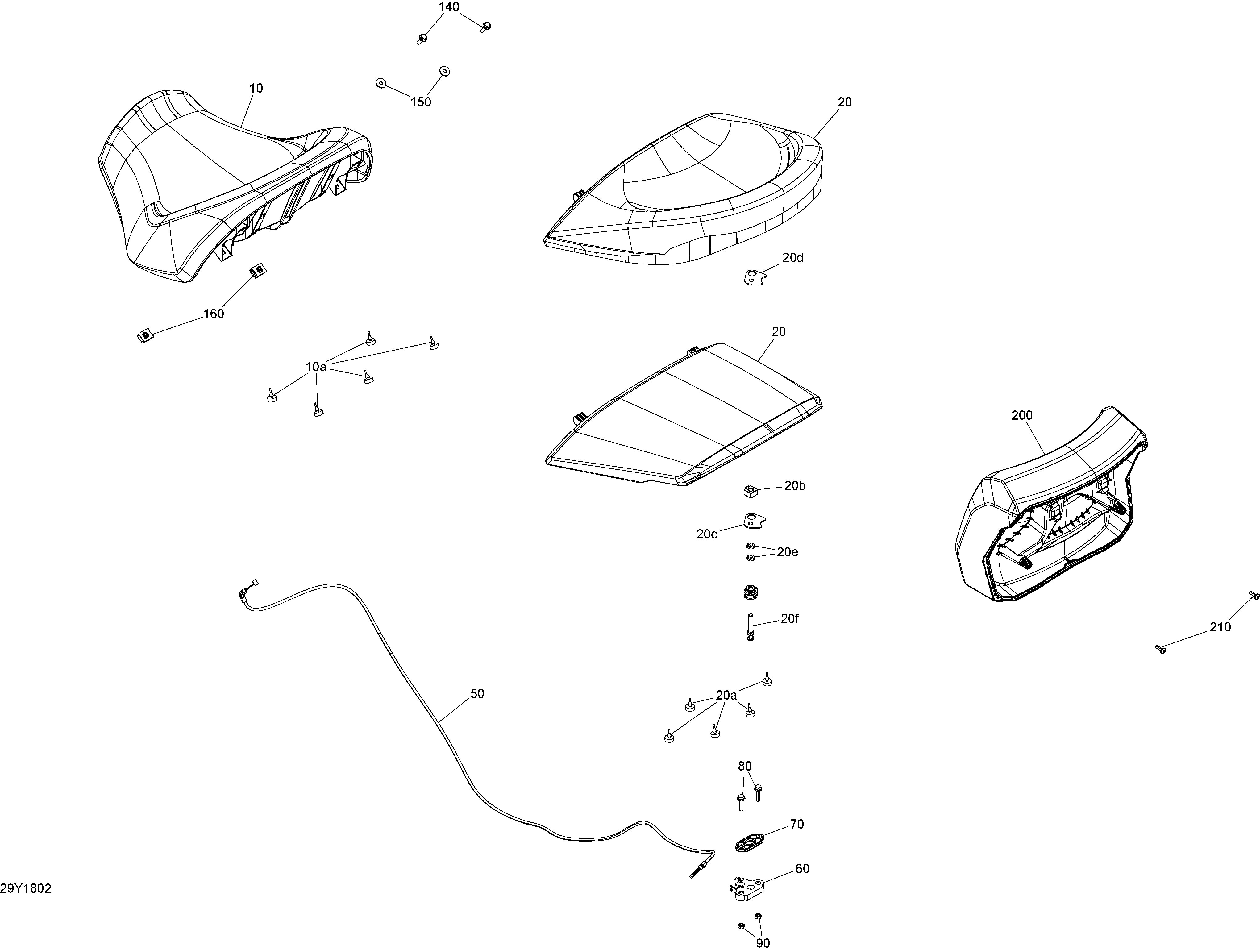

09- Seat для BRP F3 T SE6 - 2018

  • №
    Артикул
    Название
  • 10
    708002806 Seat Driver Assy. Includes 10 to 10a
    Seat Driver Assy. Includes 10 to 10a
  • 10a
    708000759 Rubber Stopper
    Rubber Stopper
  • 20
    708002779 Seat Passenger Assy. Includes 20 to 20g
    Seat Passenger Assy. Includes 20 to 20g
  • 20a
    708000759 Rubber Stopper
    Rubber Stopper
  • 20b
    269501943 Elastic Nut Housing M8. Includes 20b to 20b1
    Elastic Nut Housing M8. Includes 20b to 20b1
  • 20b1
    232581200 Hex. Elastic Nut M8, Brass. Not Shown
    Hex. Elastic Nut M8, Brass. Not Shown
  • 20c
    708001909 Washer
    Washer
  • 20e
    232180600 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 20f
    708001741 Lug
    Lug
  • 20g
    250000725 Screw M4 X 16. Not Shown
    Screw M4 X 16. Not Shown
  • 50
    708001743 Seat Cable
    Seat Cable
  • 60
    705007379 Latch
    Latch
  • 70
    708001771 Brace
    Brace
  • 80
    207562556 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 90
    232061414 Hex. Nut M6
    Hex. Nut M6
  • 140
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 150
    250200082 Flat Washer
    Flat Washer
  • 160
    250100169 Panel Nut M6 X 1
    Panel Nut M6 X 1
