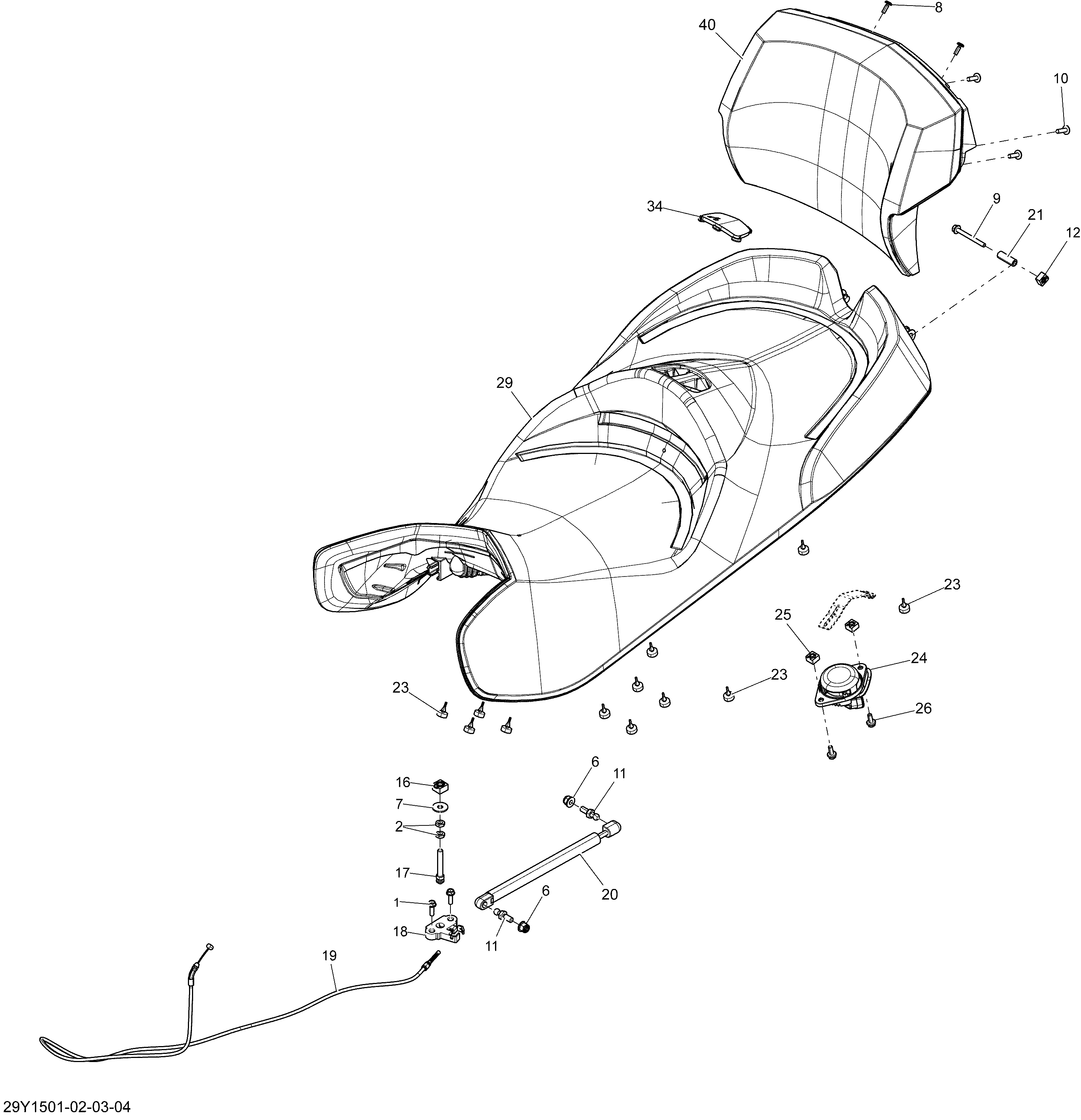

09- Seat _29Y1504 для BRP Spyder RTS Special Series SE6 - 2015
-
№АртикулНазвание
-
1210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
2232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7234082410 Flat Washer 8 mmFlat Washer 8 mm
-
8250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
9250000397 Hex. Flanged Screw M6 X 60Hex. Flanged Screw M6 X 60
-
10250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11250300039 Ball Head StudBall Head Stud
-
12269500725 Nut Housing Ass'yNut Housing Ass'y
-
16269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
17705002223 LugLug
-
18705007379 LatchLatch
-
19708001743 Seat CableSeat Cable
-
20708000658 Gaz ShockGaz Shock
-
21708000664 SpacerSpacer
-
23708000759 Rubber StopperRubber Stopper
-
24710001346 Passenger Detection SwitchPassenger Detection Switch
-
25269501166 Nut Housing Ass'yNut Housing Ass'y
-
26207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
29708001777 Black/Red Seat Ass'yBlack/Red Seat Ass'y
-
29708001617 Burgundy Seat Ass'yBurgundy Seat Ass'y
-
34708001634 Burgundy CapBurgundy Cap
-
40708001774 Black Backrest Ass'y SPEBlack Backrest Ass'y SPE
-
40708001773 Burgundy Backrest Ass'yBurgundy Backrest Ass'y
