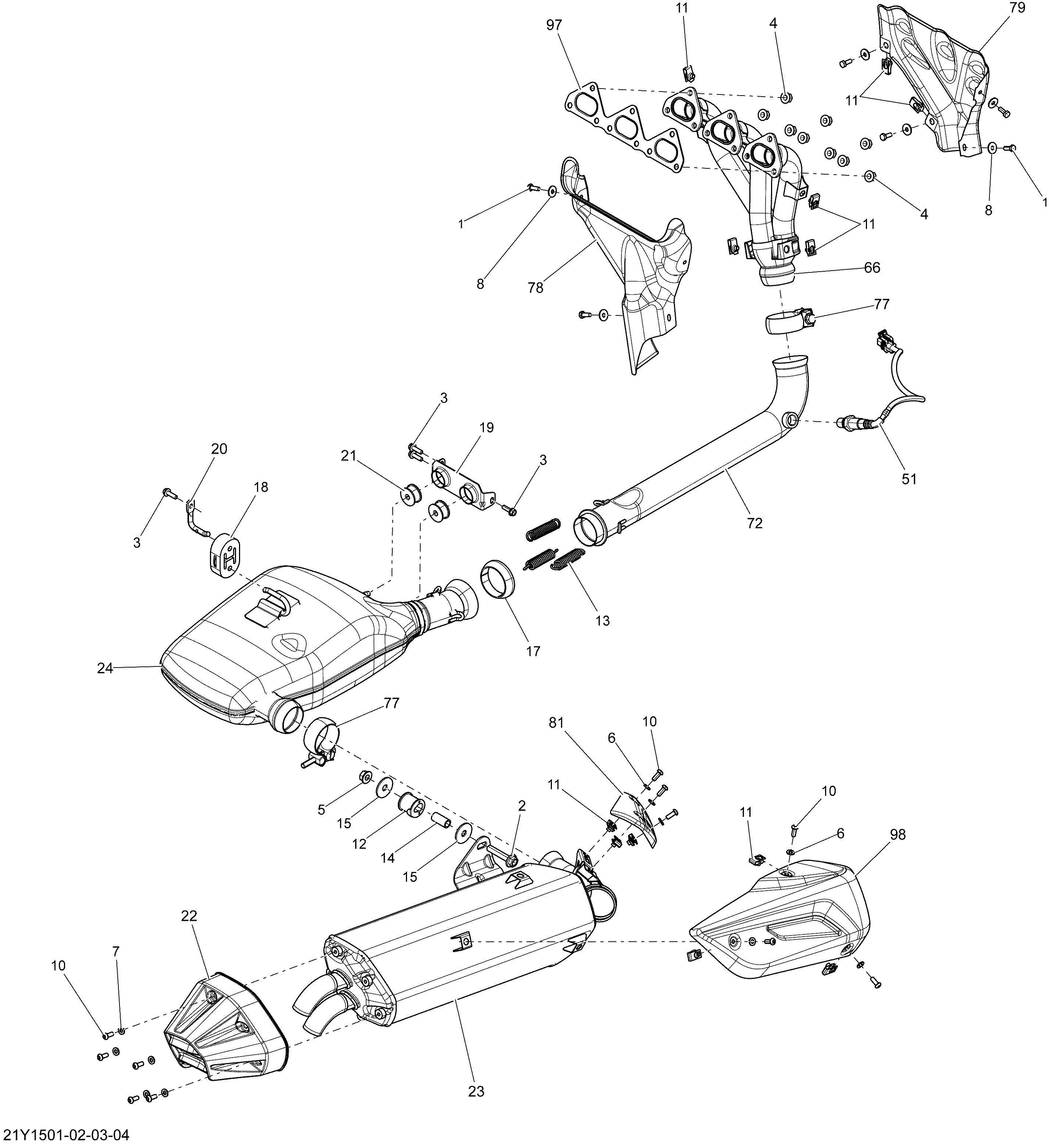

01- Exhaust System _21Y1504 для BRP Spyder RTS Special Series SE6 - 2015

  • №
    Артикул
    Название
  • 1
    207361660 Hex. Screw M6 X 16, Scotch Grip
    Hex. Screw M6 X 16, Scotch Grip
  • 2
    207505046 Hex. Flanged Screw M10 X 50, Scotch Grip
    Hex. Flanged Screw M10 X 50, Scotch Grip
  • 3
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 4
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 5
    233101600 Hex. Flanged Nut M10
    Hex. Flanged Nut M10
  • 6
    234061670 Flat Washer 6 mm
    Flat Washer 6 mm
  • 7
    234061670 Flat Washer 6 mm
    Flat Washer 6 mm
  • 8
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 10
    250000616 Socket Screw, M6 X 16
    Socket Screw, M6 X 16
  • 11
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 12
    293830162 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 13
    415107100 Spring
    Spring
  • 14
    503189282 Bushing
    Bushing
  • 15
    506150000 Washer 10 mm
    Washer 10 mm
  • 17
    514054174 Exhaust Gasket
    Exhaust Gasket
  • 18
    707600638 Rubber Bumper
    Rubber Bumper
  • 19
    707600661 Front Bracket
    Front Bracket
  • 20
    707600666 Retaining Rod
    Retaining Rod
  • 21
    707600702 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 22
    707601048 Carbon Black Muffler End Cap
    Carbon Black Muffler End Cap
  • 23
    707601341 Carbon Black Muffler Ass'y
    Carbon Black Muffler Ass'y
  • 24
    707600793 Primary Muffler
    Primary Muffler
  • 51
    707600872 Oxygen Sensor
    Oxygen Sensor
  • 66
    707600937 Exhaust Manifold
    Exhaust Manifold
  • 72
    707600942 Exhaust Tuned Pipe
    Exhaust Tuned Pipe
  • 77
    707600980 Exhaust Clamp
    Exhaust Clamp
  • 78
    707601028 Inner Heat Deflector
    Inner Heat Deflector
  • 79
    707601029 External Heat Deflector
    External Heat Deflector
  • 81
    707601054 Carbon Black Heat Shield
    Carbon Black Heat Shield
  • 97
    707601257 Exhaust Seal
    Exhaust Seal
  • 98
    707601381 Carbon Black Heat Shield
    Carbon Black Heat Shield
