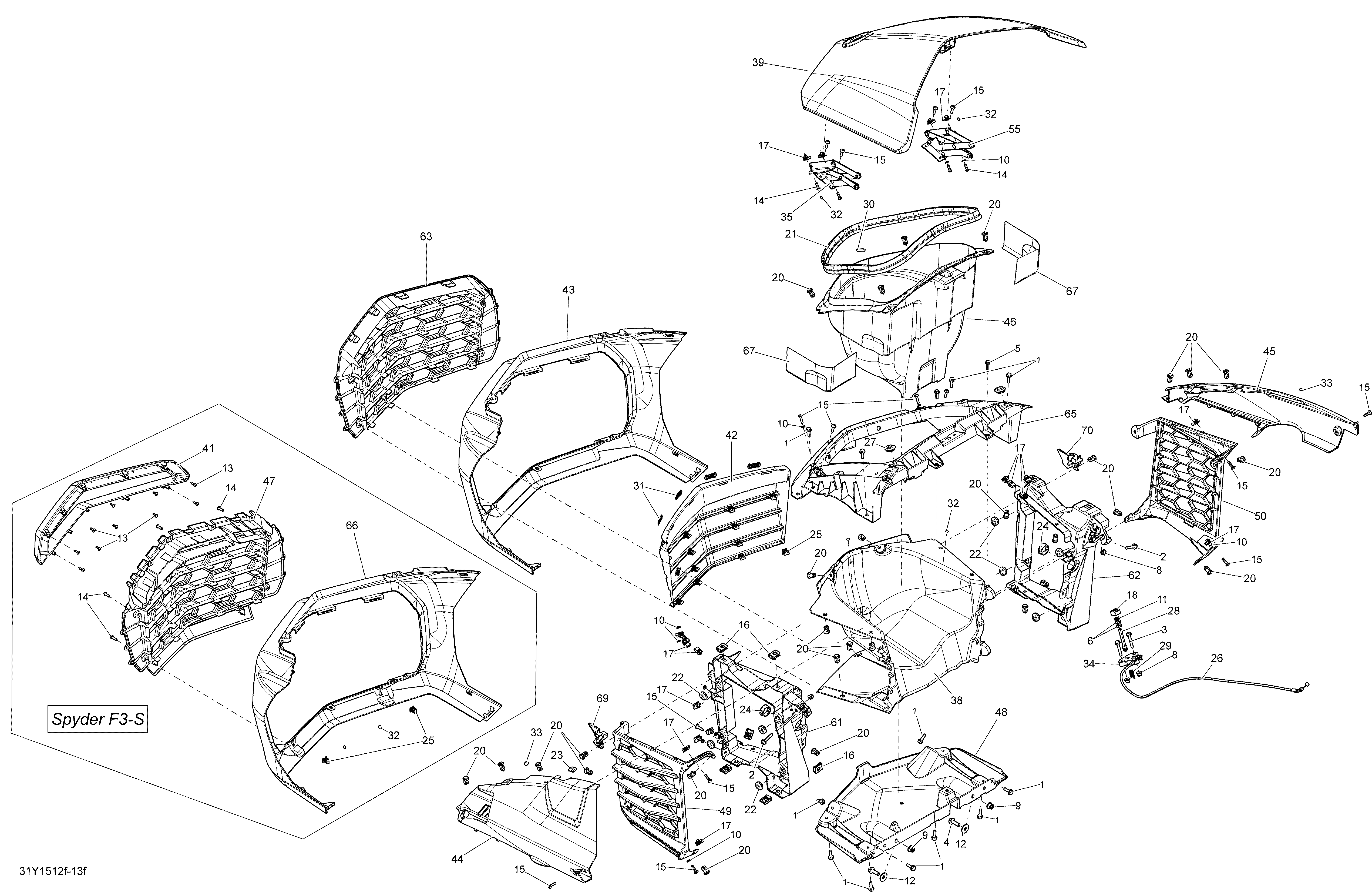

09- Body And Accessories Front Storage_31Y1512f для BRP Spyder F3 SE6 - 2015
-
№АртикулНазвание
-
1207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207663054 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
3207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
4207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
5210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
6232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10234051670 Flat Washer M5Flat Washer M5
-
11234081410 Flat Washer 8 mmFlat Washer 8 mm
-
12234082430 Flat Washer M8Flat Washer M8
-
14250000578 Torx Truss Screw M5 X 16Torx Truss Screw M5 X 16
-
15250000715 Torx Truss Screw M5 X 20Torx Truss Screw M5 X 20
-
16250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
17250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
18269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
20293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
21293250047 Neoprene SealNeoprene Seal
-
22293720053 GrommetGrommet
-
23293830143 Rubber PadRubber Pad
-
24414916600 Nylon CapNylon Cap
-
25517302785 ClipClip
-
26517305742 Hood CableHood Cable
-
27705000321 Oval WasherOval Washer
-
28705002223 LugLug
-
29219400242 SpringSpring
-
30515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
31705004838 Flat ClipFlat Clip
-
32705006633 StopperStopper
-
33705006634 Polyurethane StopperPolyurethane Stopper
-
34705007379 LatchLatch
-
35708200348 LH Hinge HoodLH Hinge Hood
-
38708200362 Front Air Duct ModuleFront Air Duct Module
-
39708200379 Steel Black HoodSteel Black Hood
-
39708200470 Vegas White HoodVegas White Hood
-
42708200393 Front Deflector GrillFront Deflector Grill
-
43708200400 Steel Black Front FasciaSteel Black Front Fascia
-
43708200479 Vegas White Front FasciaVegas White Front Fascia
-
44708200450 LH Steel Black Vent Front PanelLH Steel Black Vent Front Panel
-
44708200473 LH Vegas White Vent Front PanelLH Vegas White Vent Front Panel
-
45708200451 RH Steel Black Vent Front PanelRH Steel Black Vent Front Panel
-
45708200476 RH Vegas White Vent Front PanelRH Vegas White Vent Front Panel
-
46708200403 Storage BinStorage Bin
-
48708200405 Front Skid PlateFront Skid Plate
-
49708200406 LH Front Lateral VentLH Front Lateral Vent
-
50708200407 RH Front Lateral VentRH Front Lateral Vent
-
55708200417 RH Hinge HoodRH Hinge Hood
-
61708200437 LH Breakaway Lateral Tower LegLH Breakaway Lateral Tower Leg
-
62708200438 RH Breakaway Lateral Tower LegRH Breakaway Lateral Tower Leg
-
63708200443 Front Radiator GrillFront Radiator Grill
-
65708200446 Sub-Frame Type StructureSub-Frame Type Structure
-
67708200490 Heat Shield SheetHeat Shield Sheet
-
69708200493 LH Front Union LinkLH Front Union Link
-
70708200494 RH Front Union LinkRH Front Union Link
