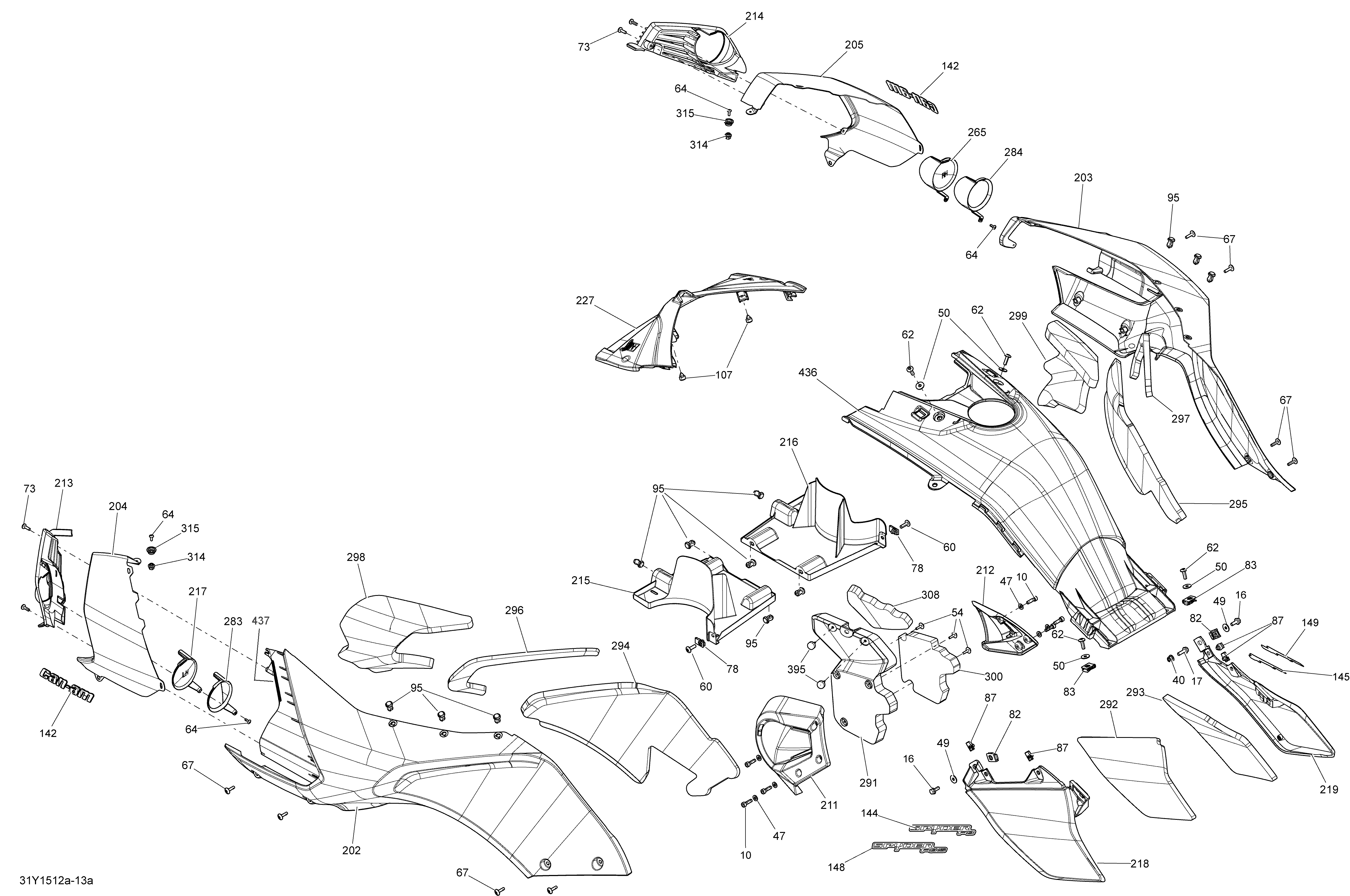

09- Body And Accessories Fairing_31Y1512a для BRP Spyder F3 SE6 - 2015
-
№АртикулНазвание
-
10205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
16207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
17207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
40250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
47234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
49234062410 Flat Washer 6 mmFlat Washer 6 mm
-
50234062670 Flat Washer, StainlessFlat Washer, Stainless
-
54250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
60250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
62250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
64250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
67250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
73250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
78250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
82250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
83250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
87250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
95293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
107293830005 Rubber BumperRubber Bumper
-
142704904675 Brillant Chrome CAN-AM LogoBrillant Chrome CAN-AM Logo
-
144704904667 Spyder F3 DecalSpyder F3 Decal
-
145704904667 Spyder F3 DecalSpyder F3 Decal
-
202705010348 LH Steel Black FairingLH Steel Black Fairing
-
202705010352 LH White Vegas FairingLH White Vegas Fairing
-
203705010349 RH Steel Black FairingRH Steel Black Fairing
-
203705010353 RH White Vegas FairingRH White Vegas Fairing
-
204705010340 LH Full Moon Air DuctLH Full Moon Air Duct
-
205705010341 RH Full Moon Air DuctRH Full Moon Air Duct
-
211705007780 LH Engine FairingLH Engine Fairing
-
212705007781 RH Engine FairingRH Engine Fairing
-
213705010137 LH Vent GridLH Vent Grid
-
214705010138 RH Vent GridRH Vent Grid
-
215705007785 LH Front Skid PlateLH Front Skid Plate
-
216705007786 RH Front Skid PlateRH Front Skid Plate
-
217705007787 LH Cap LigthLH Cap Ligth
-
218705008254 LH Steel Black Low FairingLH Steel Black Low Fairing
-
218705009242 LH White Vegas Low FairingLH White Vegas Low Fairing
-
219705008255 RH Steel Black Low FairingRH Steel Black Low Fairing
-
219705009245 RH White Vegas Low FairingRH White Vegas Low Fairing
-
227705008058 Service Center FairingService Center Fairing
-
265705008963 RH Cap LigthRH Cap Ligth
-
283705008995 LH Heat ShieldLH Heat Shield
-
284705008996 RH Heat ShieldRH Heat Shield
-
291705009144 LH Acoustic FairingLH Acoustic Fairing
-
292705009153 Acoustic FoamAcoustic Foam
-
293705009154 Acoustic FoamAcoustic Foam
-
294705009155 Acoustic FoamAcoustic Foam
-
295705009156 Acoustic FoamAcoustic Foam
-
296705009157 Acoustic FoamAcoustic Foam
-
297705009158 Acoustic FoamAcoustic Foam
-
298705009159 Acoustic FoamAcoustic Foam
-
299705009160 Acoustic FoamAcoustic Foam
-
300705009162 Acoustic FoamAcoustic Foam
-
308705009344 Acoustic FoamAcoustic Foam
-
314705009430 Anchor PinAnchor Pin
-
315705009431 Shouldered BushingShouldered Bushing
-
395708000759 Rubber StopperRubber Stopper
-
436705008246 Steel Black Fuel Tank CoverSteel Black Fuel Tank Cover
-
436705009235 White Vegas Fuel Tank CoverWhite Vegas Fuel Tank Cover
-
437293250143 SealSeal
