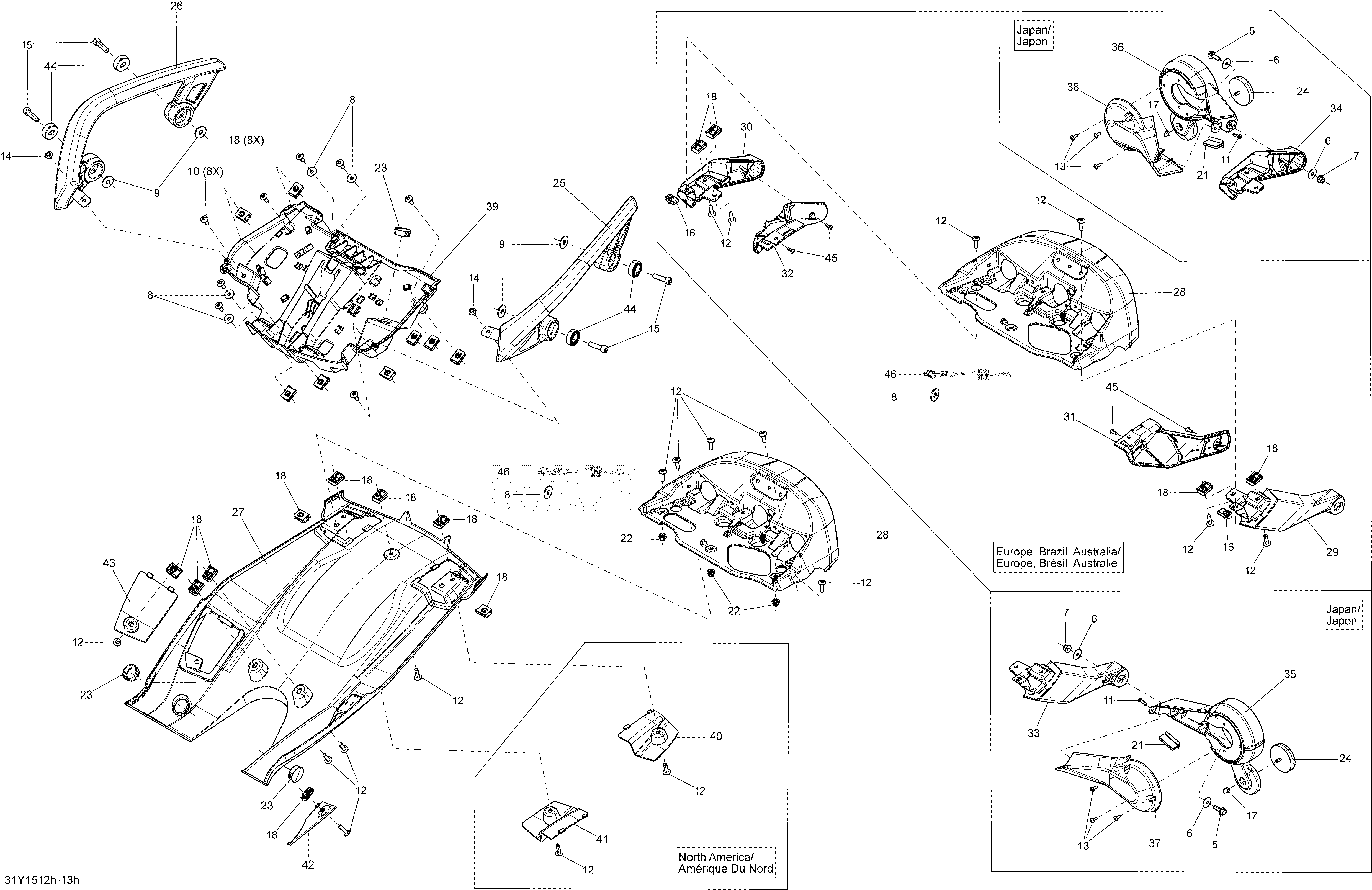

09- Body And Accessories Rear Grab Handle_31Y1513h для BRP Spyder F3-S SE6 - 2015
-
№АртикулНазвание
-
5207662044 Hex. Flanged Screw M6 X 20. Model-JapanHex. Flanged Screw M6 X 20. Model-Japan
-
6224060201 Flat Washer. Model-JapanFlat Washer. Model-Japan
-
7233261414 Hex. Flanged Elastic Nut M6. Model-JapanHex. Flanged Elastic Nut M6. Model-Japan
-
8234062670 Flat Washer, StainlessFlat Washer, Stainless
-
9234082670 Flat Washer, StainlessFlat Washer, Stainless
-
10250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
11250000287 Flanged Torx Screw K40 X 16. Model-JapanFlanged Torx Screw K40 X 16. Model-Japan
-
12250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
13250000577 Torx Truss K40 X 12. Model-JapanTorx Truss K40 X 12. Model-Japan
-
14250000585 Plastite Screw K-40 M4 X 10Plastite Screw K-40 M4 X 10
-
15250000823 Socket Head Screw M8 X 30, Scotch GripSocket Head Screw M8 X 30, Scotch Grip
-
16250100113 Panel Nut, M6 X 1.0. Model-Europe, Brazil, AustraliaPanel Nut, M6 X 1.0. Model-Europe, Brazil, Australia
-
17250100152 Cap Nut M5. Model-JapanCap Nut M5. Model-Japan
-
18250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
21293250047 Neoprene Seal. Model-JapanNeoprene Seal. Model-Japan
-
22293450232 InsertInsert
-
23414916600 Nylon CapNylon Cap
-
24705002408 Red Reflector. Model-JapanRed Reflector. Model-Japan
-
25708001413 LH Passenger HandleLH Passenger Handle
-
26708001414 RH Passenger HandleRH Passenger Handle
-
27708001415 Under Tail CoverUnder Tail Cover
-
28708001492 Rear SupportRear Support
-
29708001622 LH Support. Model-Europe, Brazil, AustraliaLH Support. Model-Europe, Brazil, Australia
-
30708001623 RH Support. Model-Europe, Brazil, AustraliaRH Support. Model-Europe, Brazil, Australia
-
31708001624 LH Support Cap. Model-Europe, Brazil, AustraliaLH Support Cap. Model-Europe, Brazil, Australia
-
32708001625 RH Support Cap. Model-Europe, Brazil, AustraliaRH Support Cap. Model-Europe, Brazil, Australia
-
33708001787 LH Support. Model-JapanLH Support. Model-Japan
-
34708001788 RH Support. Model-JapanRH Support. Model-Japan
-
35708001789 LH Cap. Model-JapanLH Cap. Model-Japan
-
36708001790 RH Cap. Model-JapanRH Cap. Model-Japan
-
37708001802 LH Cover. Model-JapanLH Cover. Model-Japan
-
38708001803 RH Cover. Model-JapanRH Cover. Model-Japan
-
39708301422 Rear SupportRear Support
-
40708301449 LH Rear Cap. Model-North AmericaLH Rear Cap. Model-North America
-
41708301450 RH Rear Cap. Model-North AmericaRH Rear Cap. Model-North America
-
42708301513 LH Front CapLH Front Cap
-
43708301514 RH Front CapRH Front Cap
-
44708301686 BushingBushing
-
45250000577 Torx Truss K40 X 12. Model-Europe, Brazil, AustraliaTorx Truss K40 X 12. Model-Europe, Brazil, Australia
-
46708001910 LanyardLanyard
