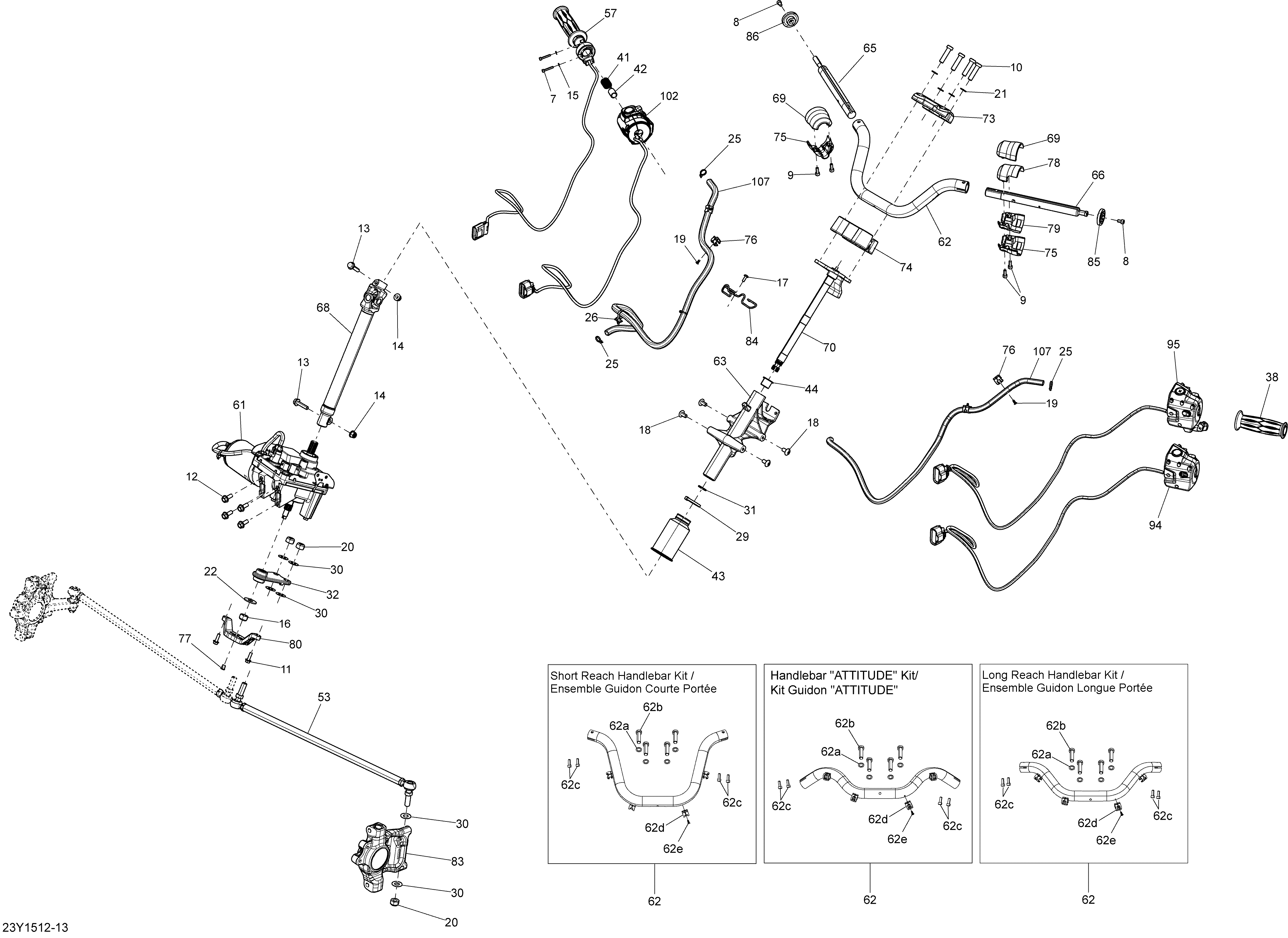

07- Steering _23Y1513 для BRP Spyder F3-S SE6 - 2015

№

Артикул

Название
7

205042594 Socket Screw, M4 X 25

Socket Screw, M4 X 25
8

205061094 Socket Screw, M6 X 10

Socket Screw, M6 X 10
9

205561660 Socket Head Screw M6 X 16, Scotch Grip

Socket Head Screw M6 X 16, Scotch Grip
10

250000456 Thin Socket Screw M10 X 40, Scotch Grip

Thin Socket Screw M10 X 40, Scotch Grip
11

207562034 Hex. Flanged Screw M6 X 20, Scotch Grip

Hex. Flanged Screw M6 X 20, Scotch Grip
12

207582044 Hex. Flanged Screw M8 X 20, Scotch Grip

Hex. Flanged Screw M8 X 20, Scotch Grip
13

207583587 Flanged Hex. Screw M8 X 35, Scotch Grip

Flanged Hex. Screw M8 X 35, Scotch Grip
14

232081417 Hex. Nut M8

Hex. Nut M8
14a

503189157 Washer

Washer
15

234040600 Flat Washer 4 mm

Flat Washer 4 mm
16

250100089 Hex. Elastic Hex. Nut M12

Hex. Elastic Hex. Nut M12
17

250000145 Torx Screw M5 X 14

Torx Screw M5 X 14
18

250000198 Torx Truss Screw M8 X 16

Torx Truss Screw M8 X 16
19

250000453 Torx Cutting Screw, M4 X 10

Torx Cutting Screw, M4 X 10
20

250100089 Hex. Elastic Hex. Nut M12

Hex. Elastic Hex. Nut M12
21

250200105 Stainless Flat Washer, 10 mm

Stainless Flat Washer, 10 mm
22

250200113 Flat Washer, 12 mm

Flat Washer, 12 mm
25

293750001 Tie-Rap 94 mm

Tie-Rap 94 mm
26

293750009 Tie-Rap 173 mm

Tie-Rap 173 mm
29

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
30

250200086 Flat Washer

Flat Washer
31

709000089 O-Ring

O-Ring
32

709401417 Pitman Arm

Pitman Arm
38

709401054 Handle Grip

Handle Grip
41

709400773 Spring

Spring
42

709400782 Bushing

Bushing
43

709400790 Bellows

Bellows
53

709401482 Tie Rod Ass'y

Tie Rod Ass'y
57

709401055 Throttle Handle Grip

Throttle Handle Grip
61

709401564 Power Steering

Power Steering
62

709401431 Carbon Black Handlebar. Factory Installed

Carbon Black Handlebar. Factory Installed
62

219400546 Short Reach Handlebar Kit

Short Reach Handlebar Kit
62

219400549 Long Reach Handlebar Kit

Long Reach Handlebar Kit
62

219400551 Handlebar Attitude Kit

Handlebar Attitude Kit
62a

250200105 Stainless Flat Washer, 10 mm

Stainless Flat Washer, 10 mm
62b

250000456 Thin Socket Screw M10 X 40, Scotch Grip

Thin Socket Screw M10 X 40, Scotch Grip
62c

205561660 Socket Head Screw M6 X 16, Scotch Grip

Socket Head Screw M6 X 16, Scotch Grip
62d

709401425 Wire Guide

Wire Guide
62e

250000453 Torx Cutting Screw, M4 X 10

Torx Cutting Screw, M4 X 10
63

709401340 Support Ass'y. Include Cushions

Support Ass'y. Include Cushions
65

709401343 RH Handle BarTube

RH Handle BarTube
66

709401344 LH Handle BarTube

LH Handle BarTube
68

709401345 Lower Column Steering

Lower Column Steering
69

709401475 Carbon Black Upper Clamp. Model-SE6

Carbon Black Upper Clamp. Model-SE6
69

709401475 Carbon Black Upper Clamp. Model-SM6

Carbon Black Upper Clamp. Model-SM6
70

709401397 Upper Column Steering

Upper Column Steering
73

709401434 Handle Clamp

Handle Clamp
74

709401437 Handle Clamp

Handle Clamp
75

709401476 Carbon Black Lower Clamp. Model-SE6

Carbon Black Lower Clamp. Model-SE6
75

709401476 Carbon Black Lower Clamp. Model-SM6

Carbon Black Lower Clamp. Model-SM6
76

709401425 Wire Guide

Wire Guide
77

709401474 Sensor Sleave

Sensor Sleave
78

709401477 Carbon Black Upper Clamp. Model-SM6

Carbon Black Upper Clamp. Model-SM6
79

709401479 Carbon Black Lower Clamp. Model-SM6

Carbon Black Lower Clamp. Model-SM6
80

709401486 Sensor Support

Sensor Support
83

709401583 RH Knuckle Ass'y

RH Knuckle Ass'y
83

709401584 LH Knuckle Ass'y

LH Knuckle Ass'y
84

709401619 Wire Guide

Wire Guide
85

709400793 LH Handlebar End Piece

LH Handlebar End Piece
86

709400765 RH Handlebar End Piece

RH Handlebar End Piece
94

710003937 LH Housing Switch. SM6

LH Housing Switch. SM6
95

710003938 LH Housing Switch. SE6

LH Housing Switch. SE6
102

710004146 RH Switch Housing. Package-S

RH Switch Housing. Package-S
107

710004489 Braided Sleeve

Braided Sleeve
