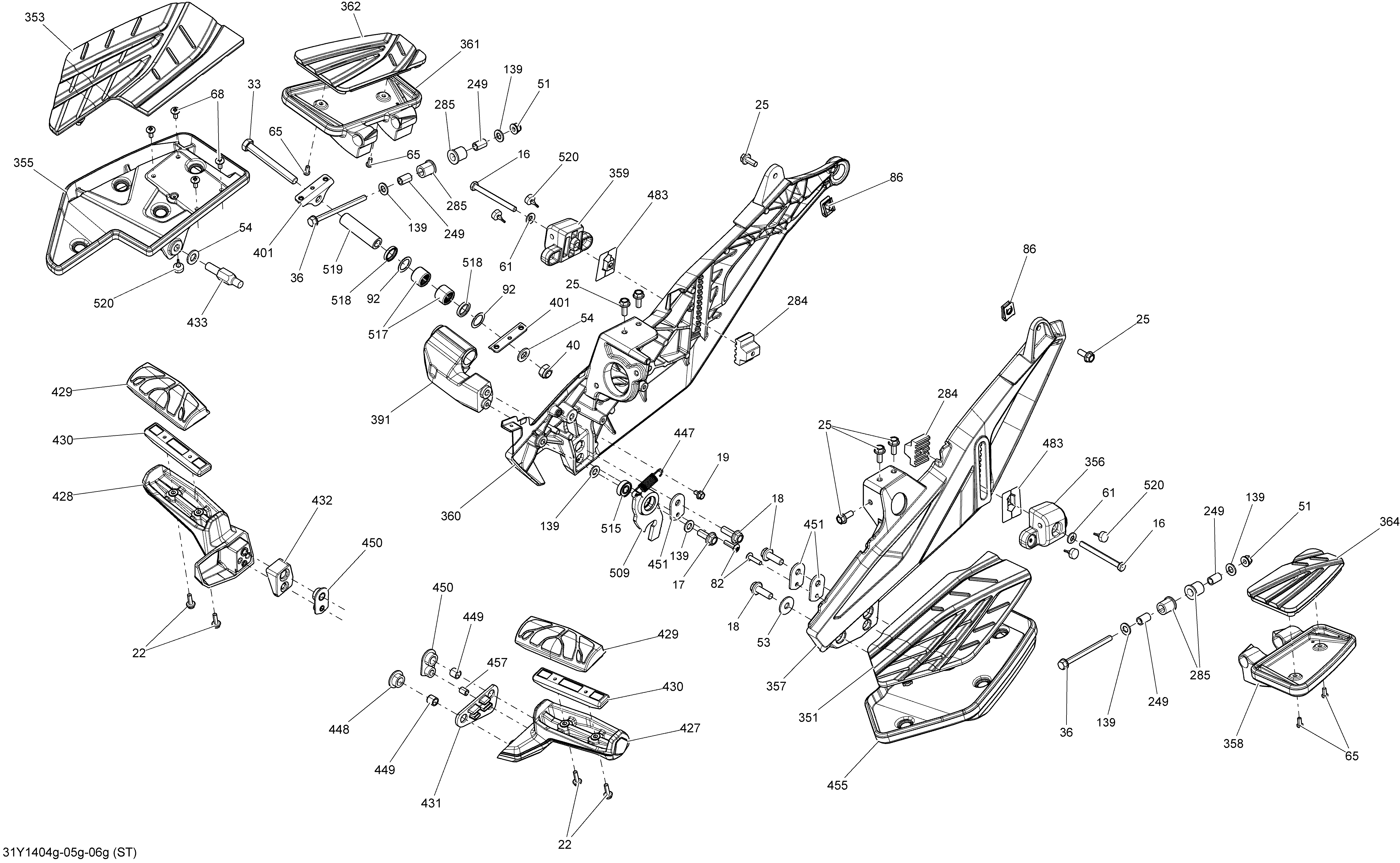

09- Body And Accessories Footrest_31Y1404g для BRP Spyder ST SM5 - 2014
-
№АртикулНазвание
-
16207189060 Hex. Screw M8 x 90. Model-STHex. Screw M8 x 90. Model-ST
-
18207503046 Hex. Flanged Screw M10 X 30, Scotch Grip. Model-STHex. Flanged Screw M10 X 30, Scotch Grip. Model-ST
-
22207562044 Flanged Screw M6 X 20, Scotch Grip. Model-STFlanged Screw M6 X 20, Scotch Grip. Model-ST
-
25207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Model-STHex. Flanged Screw M8 X 20, Scotch Grip. Model-ST
-
36230681034 Hex. Flanged Screw M8 X 110. Model-STHex. Flanged Screw M8 X 110. Model-ST
-
51233281434 Hex. Flanged Elastic Nut M8. Model-STHex. Flanged Elastic Nut M8. Model-ST
-
53234002600 Flat Washer 10 mm, Stainless. Model-STFlat Washer 10 mm, Stainless. Model-ST
-
61234281704 Spring Washer M8. Model-STSpring Washer M8. Model-ST
-
65250000099 Allen Plastite Screw #12. Model-STAllen Plastite Screw #12. Model-ST
-
82250000630 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
86250100069 Panet Nut M8 X 1.25. Model-STPanet Nut M8 X 1.25. Model-ST
-
139503183800 Washer. Model-STWasher. Model-ST
-
249705002153 Bushing. Model-STBushing. Model-ST
-
284705003013 Adjuster Block. Model-STAdjuster Block. Model-ST
-
285705003018 Rubber Bushing. Model-STRubber Bushing. Model-ST
-
356705005337 LH Sliding Block. Model-ST STDLH Sliding Block. Model-ST STD
-
357705005339 LH Rear Foot Support. Model-ST STDLH Rear Foot Support. Model-ST STD
-
358705005341 LH Rear Footrest. Model-ST STDLH Rear Footrest. Model-ST STD
-
359705005344 RH Sliding Block. Model-ST STDRH Sliding Block. Model-ST STD
-
360705007975 RH Footrest Support, Silver. Model-ST STDRH Footrest Support, Silver. Model-ST STD
-
361705005348 RH Footrest Support. Model-ST STDRH Footrest Support. Model-ST STD
-
362705005350 RH Rear Rubber Pad. Model-STRH Rear Rubber Pad. Model-ST
-
364705005351 LH Rear Rubber Pad. Model-STLH Rear Rubber Pad. Model-ST
-
427705006288 LH Front Footrest Ass'y. Model-ST STDLH Front Footrest Ass'y. Model-ST STD
-
428705006294 RH Front Footrest Ass'y. Model-ST STDRH Front Footrest Ass'y. Model-ST STD
-
429705006297 LH Front Rubber Pad. Model-ST STDLH Front Rubber Pad. Model-ST STD
-
430705006388 Vibration Dampener. Model-ST STDVibration Dampener. Model-ST STD
-
431705006423 LH Rubber Bushing. Model-ST STDLH Rubber Bushing. Model-ST STD
-
432705006424 RH Rubber Bushing. Model-ST STDRH Rubber Bushing. Model-ST STD
-
448705006554 Cushion. Model-ST STDCushion. Model-ST STD
-
449705006555 Bushing. Model-ST STDBushing. Model-ST STD
-
450705006556 Cushion. Model-ST STDCushion. Model-ST STD
-
451705006557 Retaining Plate. Model-STRetaining Plate. Model-ST
-
457705006696 Bushing. Model-ST STDBushing. Model-ST STD
-
483705007473 Lock Plate. Model-STLock Plate. Model-ST
-
520708000759 Rubber Stopper. Model-STRubber Stopper. Model-ST
