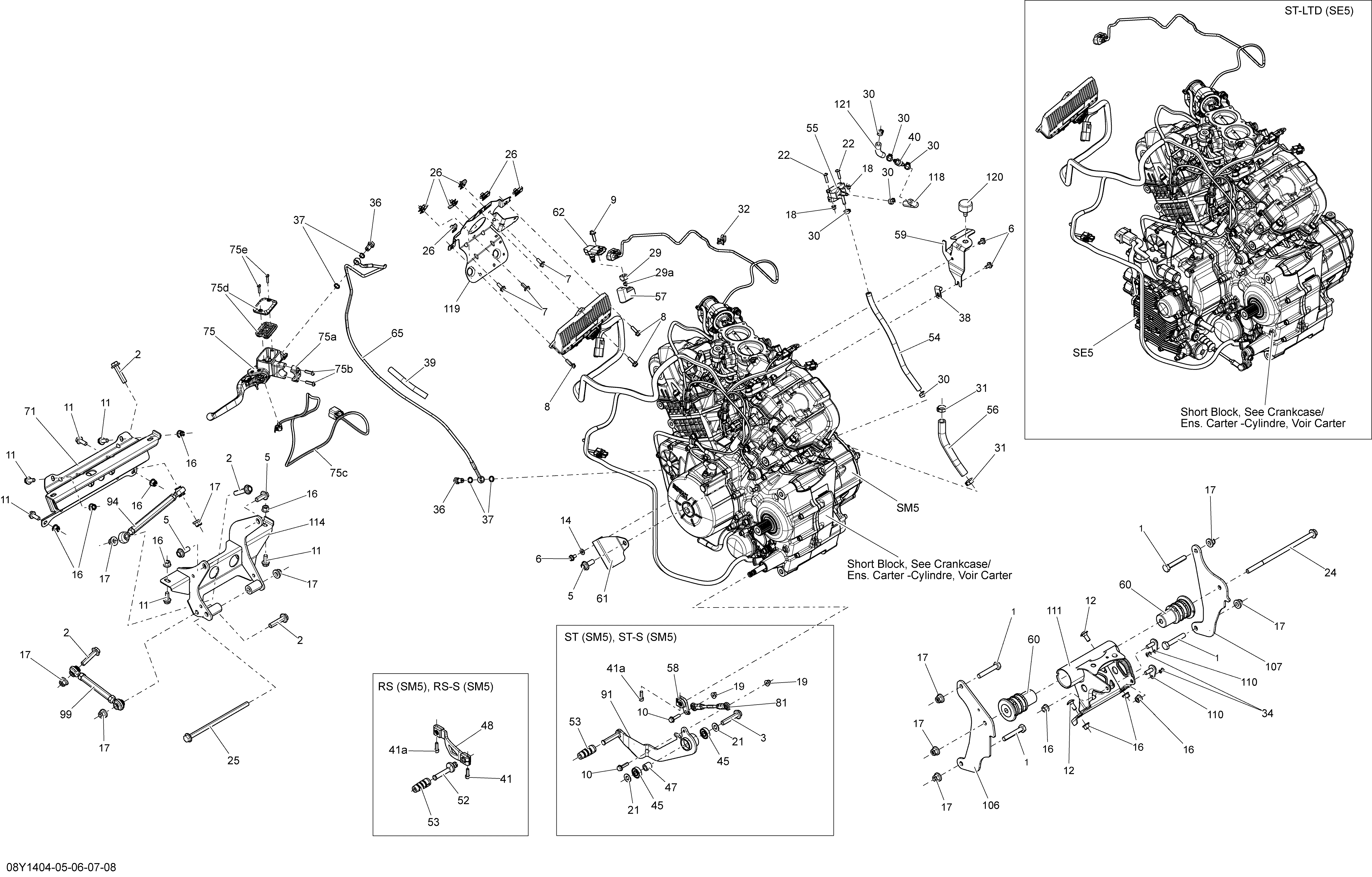

01- Engine SM5_08Y1404 для BRP Spyder ST SM5 - 2014
-
№АртикулНазвание
-
1207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
2207504546 Hex. Flanged Screw, M10 X 45 Scotch GripHex. Flanged Screw, M10 X 45 Scotch Grip
-
3207505044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
5207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
6207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
7207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
11207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
12207782046 Carriage Bolt M8 X 20Carriage Bolt M8 X 20
-
14224061121 Flat WasherFlat Washer
-
16233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
17233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
18233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21234001410 Flat Washer 10 mmFlat Washer 10 mm
-
22250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
24250000507 Flanged Hex Screw M10 X 220Flanged Hex Screw M10 X 220
-
25250000583 Hex. Flanged Screw M10 X 200Hex. Flanged Screw M10 X 200
-
26250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
29269500725 Nut Housing Ass'y. Includes 29 to 29aNut Housing Ass'y. Includes 29 to 29a
-
29a232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
30293650042 Oetiker ClampOetiker Clamp
-
31293650186 Oetiker ClampOetiker Clamp
-
32293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
34390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
36414920500 Banjo BoltBanjo Bolt
-
37414920600 WasherWasher
-
38415052400 AttacheAttache
-
39409901700 Tubing 9 mmTubing 9 mm
-
40513033469 Check ValveCheck Valve
-
41a514054626 Socket Screw M6 X 22, Scotch GripSocket Screw M6 X 22, Scotch Grip
-
45705600458 BearingBearing
-
47705601083 BushingBushing
-
53707000456 End Clutch PedalEnd Clutch Pedal
-
54513033565 HoseHose
-
55707000530 Solenoid ValveSolenoid Valve
-
56707000484 HoseHose
-
57707000586 FilterFilter
-
58707000649 Shifter ArmShifter Arm
-
59707000756 Intake SupportIntake Support
-
60707000814 Rubber MountRubber Mount
-
61707000845 DeflectorDeflector
-
62707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
65707001050 HoseHose
-
71707001056 Front Rubber MountFront Rubber Mount
-
75707001084 Clutch Lever Ass'y. Includes 75 to 75eClutch Lever Ass'y. Includes 75 to 75e
-
75a719000049 Clamps Kit. Includes 75a to 75bClamps Kit. Includes 75a to 75b
-
75b250000433 Torx Screw M6 X 20Torx Screw M6 X 20
-
75c219800297 MicroswitchMicroswitch
-
75d219800096 Cap Set. Includes 75d to 75eCap Set. Includes 75d to 75e
-
75e415129356 Screw M4 X 20Screw M4 X 20
-
81707001128 Linkage RodLinkage Rod
-
91707001226 LeverLever
-
94707001357 Connecting RodConnecting Rod
-
99707001358 Connecting RodConnecting Rod
-
106707001238 LH Engine SupportLH Engine Support
-
107707001239 RH Engine SupportRH Engine Support
-
110707001292 AttachAttach
-
111707001331 ExtentionExtention
-
114707001336 Front Engine SupportFront Engine Support
-
118707001465 Formed HoseFormed Hose
-
119707800469 BracketBracket
-
120708000758 Rubber StopperRubber Stopper
-
121513033565 HoseHose
