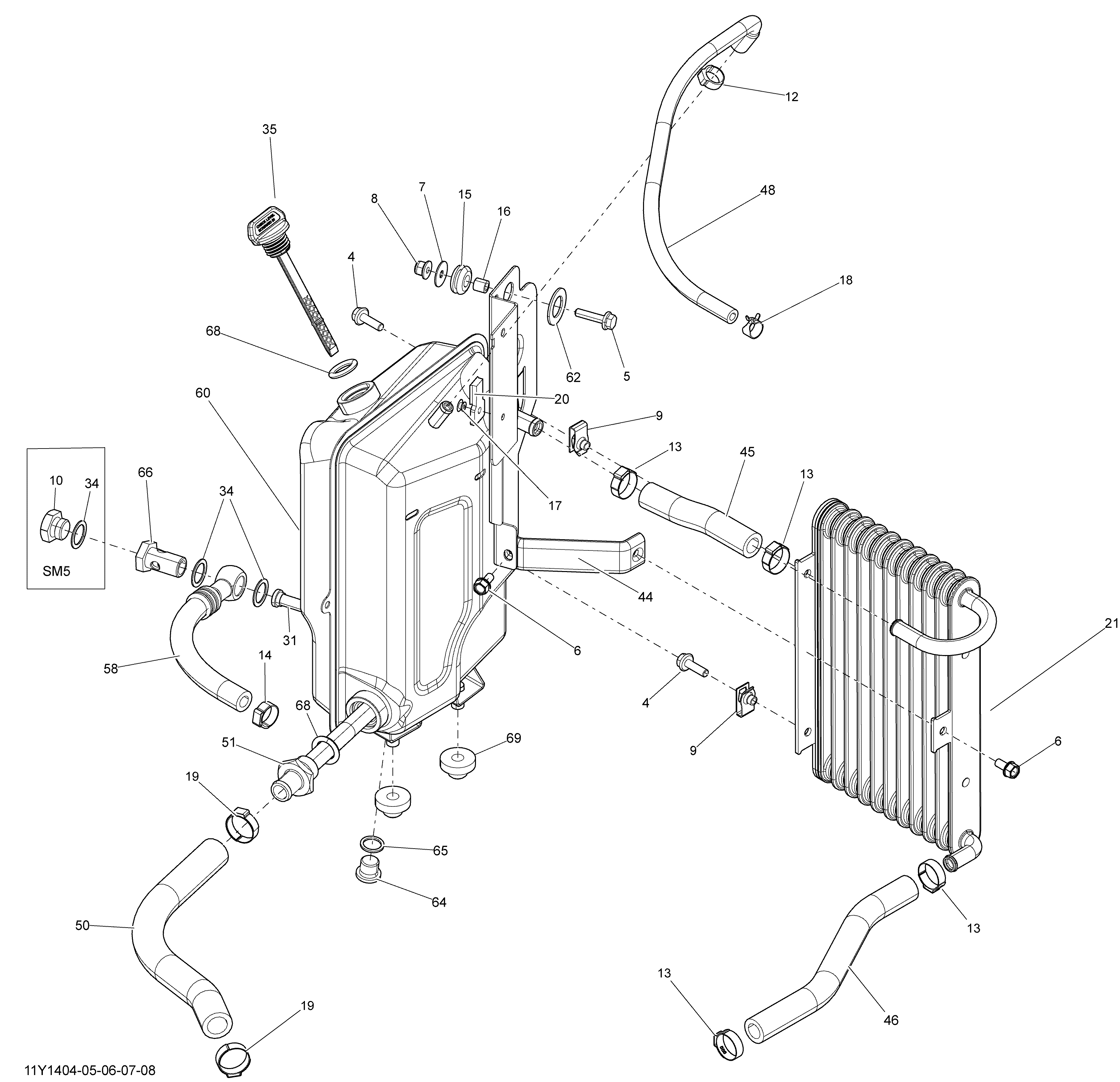

02- Oil System _11Y1408 для BRP Spyder RSS SE5 - 2014
-
№АртикулНазвание
-
4207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
7224060201 Flat WasherFlat Washer
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10250100114 Hex. Head Plug M16 X 1.5Hex. Head Plug M16 X 1.5
-
12293650140 Oetiker ClampOetiker Clamp
-
13293650186 Oetiker ClampOetiker Clamp
-
14293650235 Crimp ClampCrimp Clamp
-
15293720053 GrommetGrommet
-
16293900105 BushingBushing
-
17390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
18414415200 Spring ClampSpring Clamp
-
19509000552 Gear ClampGear Clamp
-
20515176209 Deutsch Gray ClipDeutsch Gray Clip
-
21519000123 Oil RadiatorOil Radiator
-
31519000144 Strainer. SE5Strainer. SE5
-
34519000148 Copper WasherCopper Washer
-
35519000155 Oil CapOil Cap
-
44519000175 Radiator SupportRadiator Support
-
45519000199 12,7 mm Hose12,7 mm Hose
-
46519000199 12,7 mm Hose12,7 mm Hose
-
48519000208 Formed HoseFormed Hose
-
50519000200 15,9 mm Hose15,9 mm Hose
-
51519000219 StrainerStrainer
-
58519000287 Hose. SE5Hose. SE5
-
60519000293 Oil TankOil Tank
-
62519000295 WasherWasher
-
64705500504 Fill Level PlugFill Level Plug
-
65705500506 Copper WasherCopper Washer
-
66705600527 Banjo Bolt. SE5Banjo Bolt. SE5
-
68709000218 O-RingO-Ring
-
69709200285 GrommetGrommet
