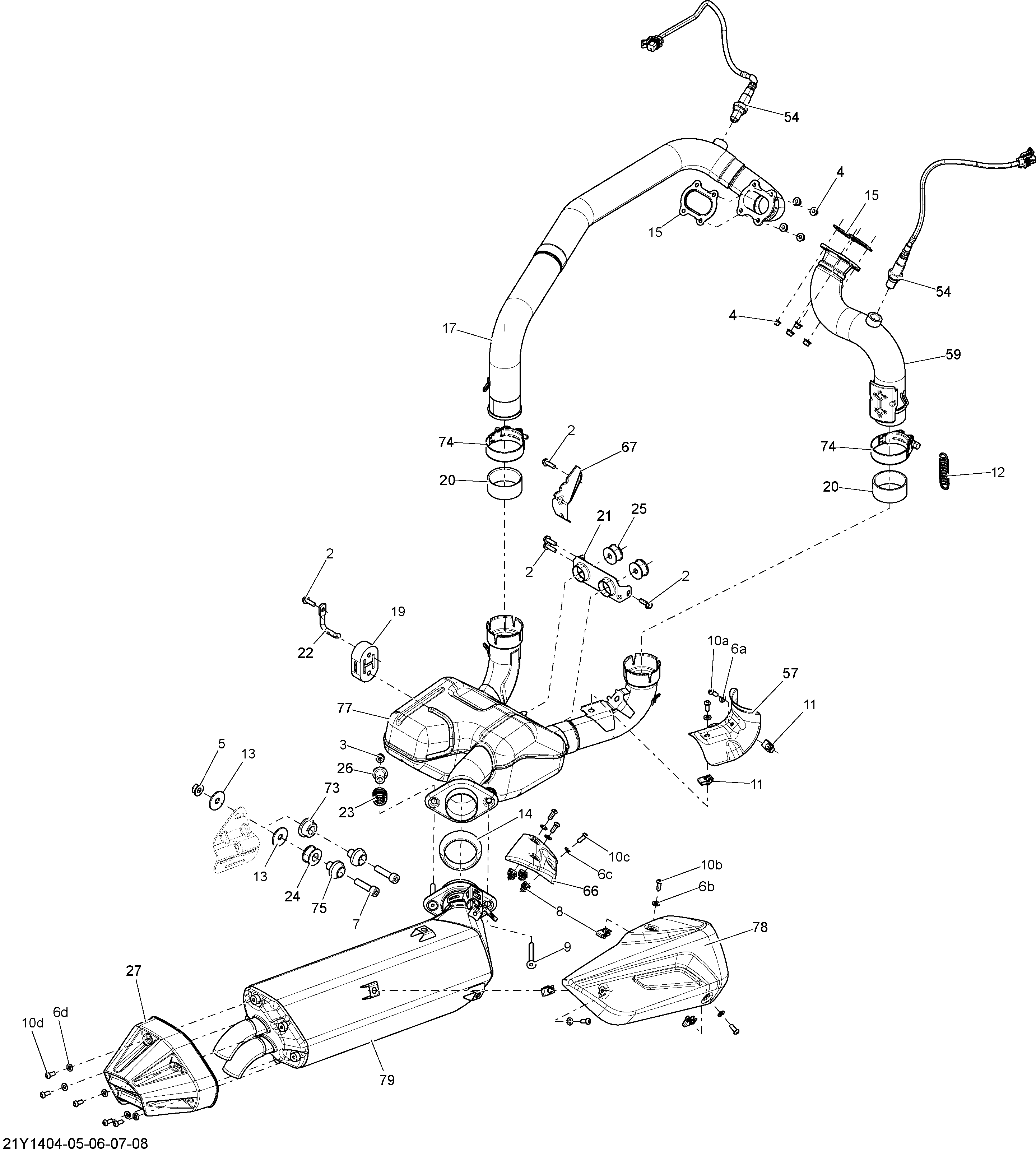

01- Exhaust System _21Y1408 для BRP Spyder RSS SE5 - 2014
-
№АртикулНазвание
-
2210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
3232581600 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
4233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
5233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
6a234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
6b234061670 Flat Washer 6 mmFlat Washer 6 mm
-
6c234061670 Flat Washer 6 mmFlat Washer 6 mm
-
6D234061670 Flat Washer 6 mmFlat Washer 6 mm
-
7244004060 Hex. Screw M10 X 40, Scotch GripHex. Screw M10 X 40, Scotch Grip
-
8250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
8250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
9250000404 Socket Screw, M8 X 75Socket Screw, M8 X 75
-
10a250000437 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
10b250000616 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
10c250000616 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
10d250000616 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
11250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
12415107100 SpringSpring
-
13506150000 Washer 10 mmWasher 10 mm
-
14514053677 Exhaust GasketExhaust Gasket
-
15707600296 SealSeal
-
17707600634 Front Exhaust Tuned PipeFront Exhaust Tuned Pipe
-
19707600638 Rubber BumperRubber Bumper
-
20707600650 Pipe Slip JointPipe Slip Joint
-
21707600661 Front BracketFront Bracket
-
22707600666 Retaining RodRetaining Rod
-
23707600682 SpringSpring
-
25707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
26707600750 BushingBushing
-
27707601048 Muffler End Cap, Carbon BlackMuffler End Cap, Carbon Black
-
54707600872 Oxygen SensorOxygen Sensor
-
57707601042 Heat ShieldHeat Shield
-
59707601367 Rear Exhaust Tuned PipeRear Exhaust Tuned Pipe
-
66707601054 Heat Shield, Carbon BlackHeat Shield, Carbon Black
-
67707601111 DeflectorDeflector
-
73707601236 BushingBushing
-
74707601249 CollarCollar
-
75707601276 BushingBushing
-
77707601357 Muffler Ass'yMuffler Ass'y
-
78707601381 Heat Shield, Cargon BlackHeat Shield, Cargon Black
-
79707601386 Muffler Ass'yMuffler Ass'y
