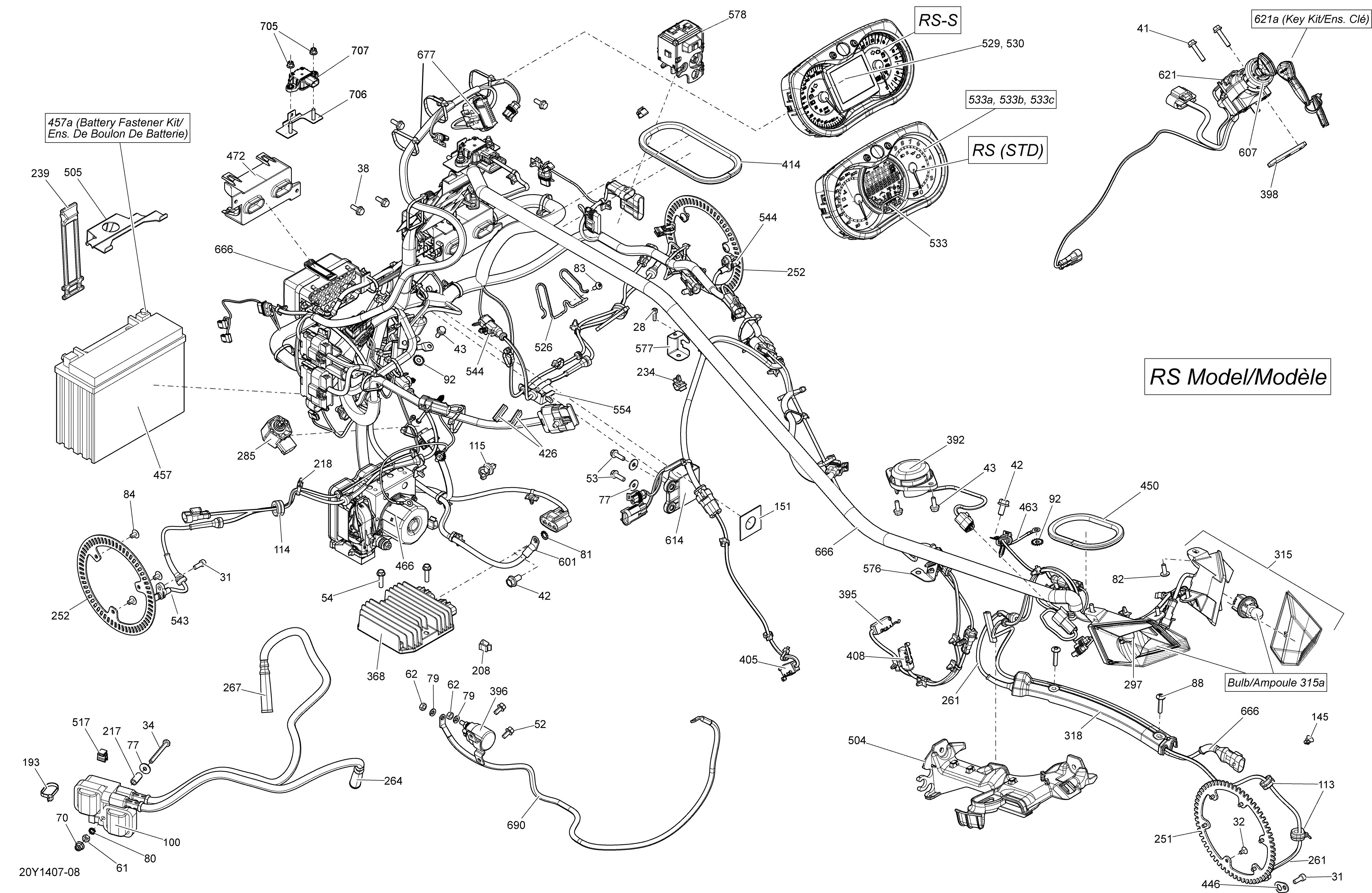

10- Electrical System _20Y1407 для BRP Spyder RS SE5 - 2014
-
№АртикулНазвание
-
28205051644 Socket Screw M5 X 16Socket Screw M5 X 16
-
31205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
32205851036 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
34207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
38207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
41207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
42207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
43207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
52210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
53210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
54210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
61232061414 Hex. Nut M6Hex. Nut M6
-
62232061600 Hex. Nut M6Hex. Nut M6
-
70233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
77234062410 Flat Washer 6 mmFlat Washer 6 mm
-
79234161601 Lock Washer Helical M6Lock Washer Helical M6
-
80234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
81234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
82250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
83250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
84250000210 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
88250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
92250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
100278001546 Ignition CoilIgnition Coil
-
106293150150 Pop RivetPop Rivet
-
113293720084 GrommetGrommet
-
114293720095 GrommetGrommet
-
115293730018 Mount DartMount Dart
-
145293750044 Tie Rap MountTie Rap Mount
-
151293830091 Rubber BumperRubber Bumper
-
208414227300 ClipClip
-
217512059812 SpacerSpacer
-
218515175220 Tie RapTie Rap
-
234515176795 ClipClip
-
239520000528 LatchLatch
-
251705601062 Wheel SensorWheel Sensor
-
252705601191 Front Tone WheelFront Tone Wheel
-
261706200560 Speed SensorSpeed Sensor
-
264707000399 Cable Ass'yCable Ass'y
-
267707000518 Cable Ass'yCable Ass'y
-
285709401171 Posi-Steer SensorPosi-Steer Sensor
-
297710000706 LH Tail Light Ass'yLH Tail Light Ass'y
-
315515176849 RH Tail Light Ass'yRH Tail Light Ass'y
-
315a415129425 BulbBulb
-
318710001035 ProtectorProtector
-
368710001191 Voltage RegulatorVoltage Regulator
-
392710001346 Passenger Detection SwitchPassenger Detection Switch
-
395710001357 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
396710001364 Starter RelayStarter Relay
-
398710001365 Switch SupportSwitch Support
-
405710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
408710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
414271001530 TrimTrim
-
426271001530 TrimTrim
-
446710002024 ShimShim
-
450271001530 TrimTrim
-
457410922962 Battery, 12 Volts, 21 AmperesBattery, 12 Volts, 21 Amperes
-
457a295500849 Battery Fastener KitBattery Fastener Kit
-
463710002374 Fuel Tank Negative CableFuel Tank Negative Cable
-
466219800333 Module VCMModule VCM
-
472710002388 Fuse Holder SupportFuse Holder Support
-
493a219800280 Rubber Cap ProtectorRubber Cap Protector
-
493b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
504710002860 Rear SupportRear Support
-
505710002893 Battery HolderBattery Holder
-
517710002899 Clip Tie-RapClip Tie-Rap
-
526710003017 Grommet SpindleGrommet Spindle
-
533710003526 Multifunction Speedometer. RS STDMultifunction Speedometer. RS STD
-
533a415129355 Speedometer Button. RS STDSpeedometer Button. RS STD
-
533b415129348 Gauge Ring. RS STDGauge Ring. RS STD
-
533c415129349 Lens. RS STDLens. RS STD
-
543710003091 Speed SensorSpeed Sensor
-
544710003091 Speed SensorSpeed Sensor
-
576710003305 Connectors BracketConnectors Bracket
-
577710003306 Knock Holder SupportKnock Holder Support
-
578710003310 Connector SupportConnector Support
-
601710003550 Ground CableGround Cable
-
607710003594 Switch CoverSwitch Cover
-
614710004190 D.E.S.S.TM (Digitally Encoded Module)D.E.S.S.TM (Digitally Encoded Module)
-
621710003598 Ignition SwitchIgnition Switch
-
621a710003596 Ignition key With SleeveIgnition key With Sleeve
-
666710003656 Harnness Frame, RS/SM5. SM5Harnness Frame, RS/SM5. SM5
-
666710003657 Harnness Frame, RS/SE5. SE5Harnness Frame, RS/SE5. SE5
-
677710003663 Console Harness. International, EuropeConsole Harness. International, Europe
-
677710003665 Console HarnessConsole Harness
-
690710003820 Starter CableStarter Cable
-
705233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
706710003494 YRS HolderYRS Holder
-
707710002677 Yaw Rate SensorYaw Rate Sensor
