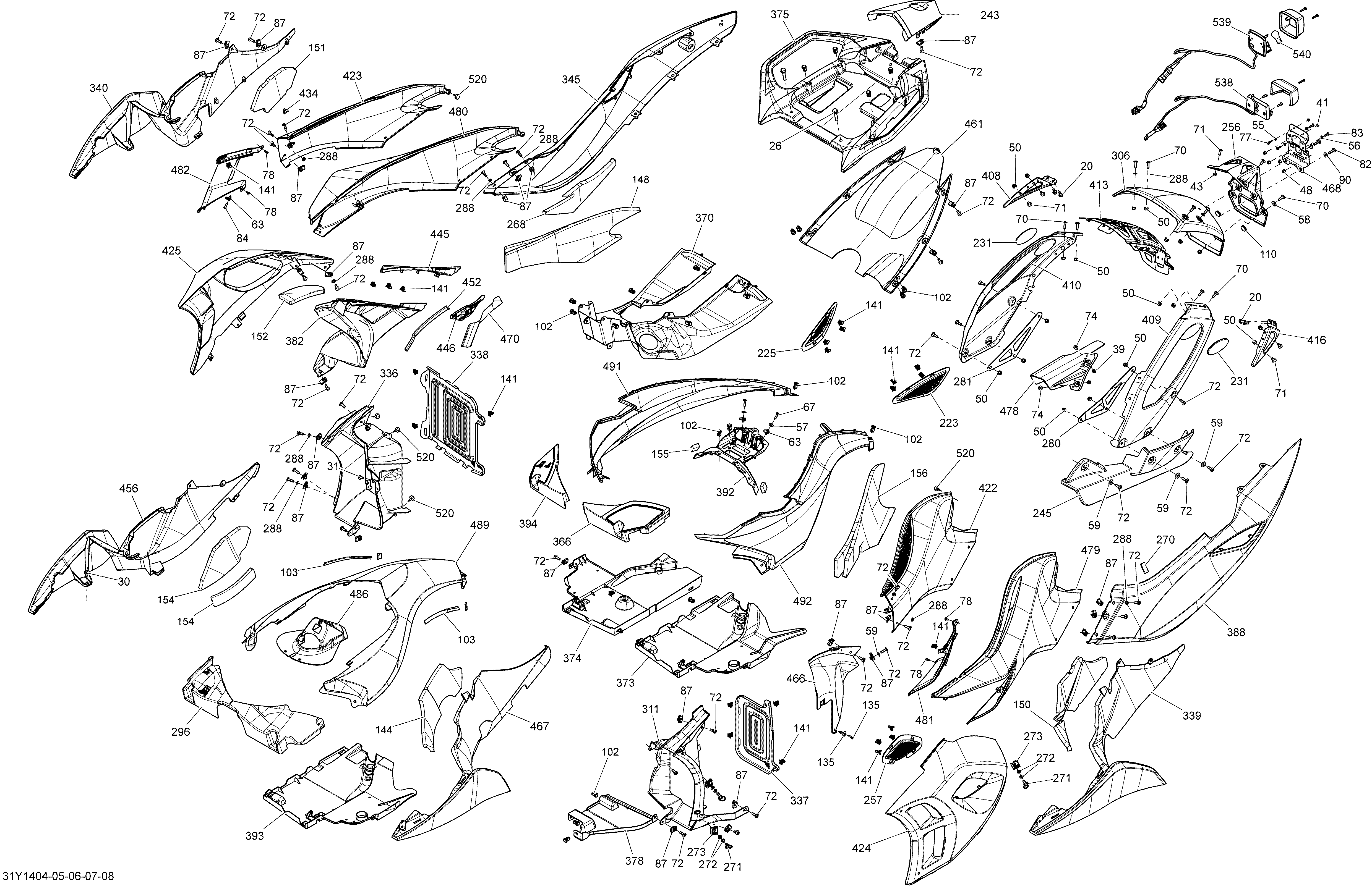

09- Body And Accessories _31Y1407 для BRP Spyder RS SE5 - 2014
-
№АртикулНазвание
-
20207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
26207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
31210261680 Hex. Flanged Screw M6 X 16. Model-RSHex. Flanged Screw M6 X 16. Model-RS
-
39232361600 Nut M6. Model-Australie, Brezil, EuropeNut M6. Model-Australie, Brezil, Europe
-
41232541484 Elastic Stop Nut M4. Model-AustralieElastic Stop Nut M4. Model-Australie
-
43232561494 Elastic Stop Nut M6. Model-Australie, Brezil, EuropeElastic Stop Nut M6. Model-Australie, Brezil, Europe
-
48233251494 Elastic Flanged Nut M5. Model-AustralieElastic Flanged Nut M5. Model-Australie
-
50233261494 Hex. Elastic Flanged Nut M6. Model-North AmericaHex. Elastic Flanged Nut M6. Model-North America
-
55234041480 Flat Washer 4 mm. Model-AustralieFlat Washer 4 mm. Model-Australie
-
56234051670 Flat Washer M5. Model-AustralieFlat Washer M5. Model-Australie
-
58234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
59234062670 Flat WasherFlat Washer
-
70250000303 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
71250000348 Torx Truss Screw M6 X 16. Model-Australie, Brezil, EuropeTorx Truss Screw M6 X 16. Model-Australie, Brezil, Europe
-
72250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
74250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
77250000575 Torx-Truss M4 X 16. Model-AustralieTorx-Truss M4 X 16. Model-Australie
-
78250000577 Torx Screw K40 X 12. Model-North America, Europe, Australie, JaponTorx Screw K40 X 12. Model-North America, Europe, Australie, Japon
-
82250000630 Torx Truss Screw M6 X 25. Model-AustralieTorx Truss Screw M6 X 25. Model-Australie
-
83250000652 Socket Screw M5 X 16. Model-AustralieSocket Screw M5 X 16. Model-Australie
-
87250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
90250200024 Rubber Washer 5 mm. Model-RSRubber Washer 5 mm. Model-RS
-
102293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
103293250087 Gasket, Neoprene. Model-RSGasket, Neoprene. Model-RS
-
110293740028 Dual Lock Washer 3/4''Dual Lock Washer 3/4''
-
135414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
141517302785 Clip. Model-North America, Europe, Australie, JaponClip. Model-North America, Europe, Australie, Japon
-
144518324753 LH Rocker Panel Foam. Model-RSLH Rocker Panel Foam. Model-RS
-
148518325518 RH Upper Side Panel FoamRH Upper Side Panel Foam
-
152518327438 RH Lateral Panel FoamRH Lateral Panel Foam
-
154518327520 RH Rocker Panel Foam. Model-RSRH Rocker Panel Foam. Model-RS
-
156518327600 LH Upper Panel FoamLH Upper Panel Foam
-
223705001542 LH Rear Grill. Model-RSLH Rear Grill. Model-RS
-
225705001544 RH Rear Grill. Model-RSRH Rear Grill. Model-RS
-
231705001573 Yellow Rear Lateral Reflector. Model-Australie, Brezil, EuropeYellow Rear Lateral Reflector. Model-Australie, Brezil, Europe
-
231705001572 Red Rear Lateral Reflector. Model-North AmericaRed Rear Lateral Reflector. Model-North America
-
243705004657 Steel Black Rear Tip. Model-Steel Black Met.Steel Black Rear Tip. Model-Steel Black Met.
-
243705003894 Pearl White Rear Tip. Model-Vegas White PearlPearl White Rear Tip. Model-Vegas White Pearl
-
245705002092 Lower Belt GuardLower Belt Guard
-
256705002367 Licence Plate Support. Model-Australie, Brezil, EuropeLicence Plate Support. Model-Australie, Brezil, Europe
-
257705002369 LH Lateral GrillLH Lateral Grill
-
268705002509 Black RH Rear Panel FoamBlack RH Rear Panel Foam
-
270293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
271705002649 Quarter Turn ScrewQuarter Turn Screw
-
272705002650 WasherWasher
-
273705002651 Quarter Turn NutQuarter Turn Nut
-
280705002980 LH Reinforcement PlateLH Reinforcement Plate
-
281705002981 RH Reinforcement PlateRH Reinforcement Plate
-
288705003207 Plastic WasherPlastic Washer
-
296705003515 Service Center. Model-RSService Center. Model-RS
-
306705004666 Steel Black Rear Fender. Model-Steel Black Met. AustralieSteel Black Rear Fender. Model-Steel Black Met. Australie
-
306705004666 Steel Black Rear Fender. Model-Steel Black Met. BrezilSteel Black Rear Fender. Model-Steel Black Met. Brezil
-
306705004666 Steel Black Rear Fender. Model-Steel Black Met. EuropeSteel Black Rear Fender. Model-Steel Black Met. Europe
-
306705004660 Steel Black Rear Fender. Model-Steel Black Met. North AmericaSteel Black Rear Fender. Model-Steel Black Met. North America
-
306705003899 Pearl White Rear Fender. Model-Vegas White Pearl EuropePearl White Rear Fender. Model-Vegas White Pearl Europe
-
306705003900 Pearl White Rear Fender. Model-Vegas White Pearl North AmericaPearl White Rear Fender. Model-Vegas White Pearl North America
-
311705004636 LH Radiator MouldingLH Radiator Moulding
-
336705005261 RH Radiator MouldingRH Radiator Moulding
-
337705005262 LH Radiator GrillLH Radiator Grill
-
338705005263 RH Radiator GrillRH Radiator Grill
-
345705007326 Black RH Rear Panel. Model-Steel Black Met.Black RH Rear Panel. Model-Steel Black Met.
-
345705007759 Vegas White Pearl RH Rear Panel. Model-Vegas White PearlVegas White Pearl RH Rear Panel. Model-Vegas White Pearl
-
370705005410 RH Tank CoverRH Tank Cover
-
374705005414 RH Deflector PannelRH Deflector Pannel
-
375705005429 Passenger HandlePassenger Handle
-
378705005447 LH Skid PlateLH Skid Plate
-
382705005462 Heat DeflectorHeat Deflector
-
388705007325 Black LH Rear Panel. Model-Steel Black Met.Black LH Rear Panel. Model-Steel Black Met.
-
388705007012 White LH Rear Panel. Model-Vegas White PearlWhite LH Rear Panel. Model-Vegas White Pearl
-
393705005749 LH Deflector Pannel. Model-RSLH Deflector Pannel. Model-RS
-
408705006070 RH Rear Fender ReinforcementRH Rear Fender Reinforcement
-
409705006084 LH Rear Fender SupportLH Rear Fender Support
-
410705006085 RH Rear Fender SupportRH Rear Fender Support
-
413705006086 Rear Fender SupportRear Fender Support
-
416705006136 LH Rear Fender ReinforcementLH Rear Fender Reinforcement
-
422705006261 Black LH Upper Side Panel. Model-Steel Black Met. BrezilBlack LH Upper Side Panel. Model-Steel Black Met. Brezil
-
423705006256 Black RH Upper Side Panel. Model-Steel Black Met. BrezilBlack RH Upper Side Panel. Model-Steel Black Met. Brezil
-
424705006251 Black LH Side Panel. Model-Steel Black Met.Black LH Side Panel. Model-Steel Black Met.
-
424705006249 White LH Side Panel. Model-Vegas White PearlWhite LH Side Panel. Model-Vegas White Pearl
-
425705006242 Black RH Side Panel. Model-Steel Black Met.Black RH Side Panel. Model-Steel Black Met.
-
425705006241 White RH Side Panel. Model-Vegas White PearlWhite RH Side Panel. Model-Vegas White Pearl
-
445705006531 Upper Heat SealUpper Heat Seal
-
446705006532 Lower Heat SeatLower Heat Seat
-
452293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
456705006689 RH Rocker Panel. Model-RSRH Rocker Panel. Model-RS
-
461705006829 Under Tail Cover. Model-RS STDUnder Tail Cover. Model-RS STD
-
466705006981 LH Inner Heat DeflectorLH Inner Heat Deflector
-
467705006985 LH Rocker Panel. Model-RSLH Rocker Panel. Model-RS
-
468705007018 Backup Light Bracket. Model-AustralieBackup Light Bracket. Model-Australie
-
470705007053 Heat Shield Rocker PanelHeat Shield Rocker Panel
-
478705007213 Upper Belt GuardUpper Belt Guard
-
479705007743 Steel Black LH Upper Side Panel. Model-Steel Black Met. AustralieSteel Black LH Upper Side Panel. Model-Steel Black Met. Australie
-
479705007743 Steel Black LH Upper Side Panel. Model-Steel Black Met. EuropeSteel Black LH Upper Side Panel. Model-Steel Black Met. Europe
-
479705007743 Steel Black LH Upper Side Panel. Model-Steel Black Met. North AmericaSteel Black LH Upper Side Panel. Model-Steel Black Met. North America
-
479705007737 Vegas White LH Upper Side Panel. Model-Vegas White PearlVegas White LH Upper Side Panel. Model-Vegas White Pearl
-
480705007744 Steel Black RH Upper Side Panel. Model-Steel Black Met. AustralieSteel Black RH Upper Side Panel. Model-Steel Black Met. Australie
-
480705007744 Steel Black RH Upper Side Panel. Model-Steel Black Met. EuropeSteel Black RH Upper Side Panel. Model-Steel Black Met. Europe
-
480705007744 Steel Black RH Upper Side Panel. Model-Steel Black Met. North AmericaSteel Black RH Upper Side Panel. Model-Steel Black Met. North America
-
480705007738 Vegas White RH Upper Side Panel. Model-Vegas White PearlVegas White RH Upper Side Panel. Model-Vegas White Pearl
-
481705007329 LH Upper Side Panel. Model-North America, Europe, Australie, JaponLH Upper Side Panel. Model-North America, Europe, Australie, Japon
-
482705007330 RH Upper Side Panel. Model-North America, Europe, Australie, JaponRH Upper Side Panel. Model-North America, Europe, Australie, Japon
-
486705007496 Moulding. Model-RSMoulding. Model-RS
-
489705007646 Steel Black Center Pannel. Model-RS STD Steel Black Met.Steel Black Center Pannel. Model-RS STD Steel Black Met.
-
489705007863 Vegas White Center Pannel. Model-RS STD Vegas White PearlVegas White Center Pannel. Model-RS STD Vegas White Pearl
-
520708000759 Rubber StopperRubber Stopper
-
538710003349 License Plate Light. Model-AustralieLicense Plate Light. Model-Australie
-
539710003319 Reverse Light. Model-AustralieReverse Light. Model-Australie
