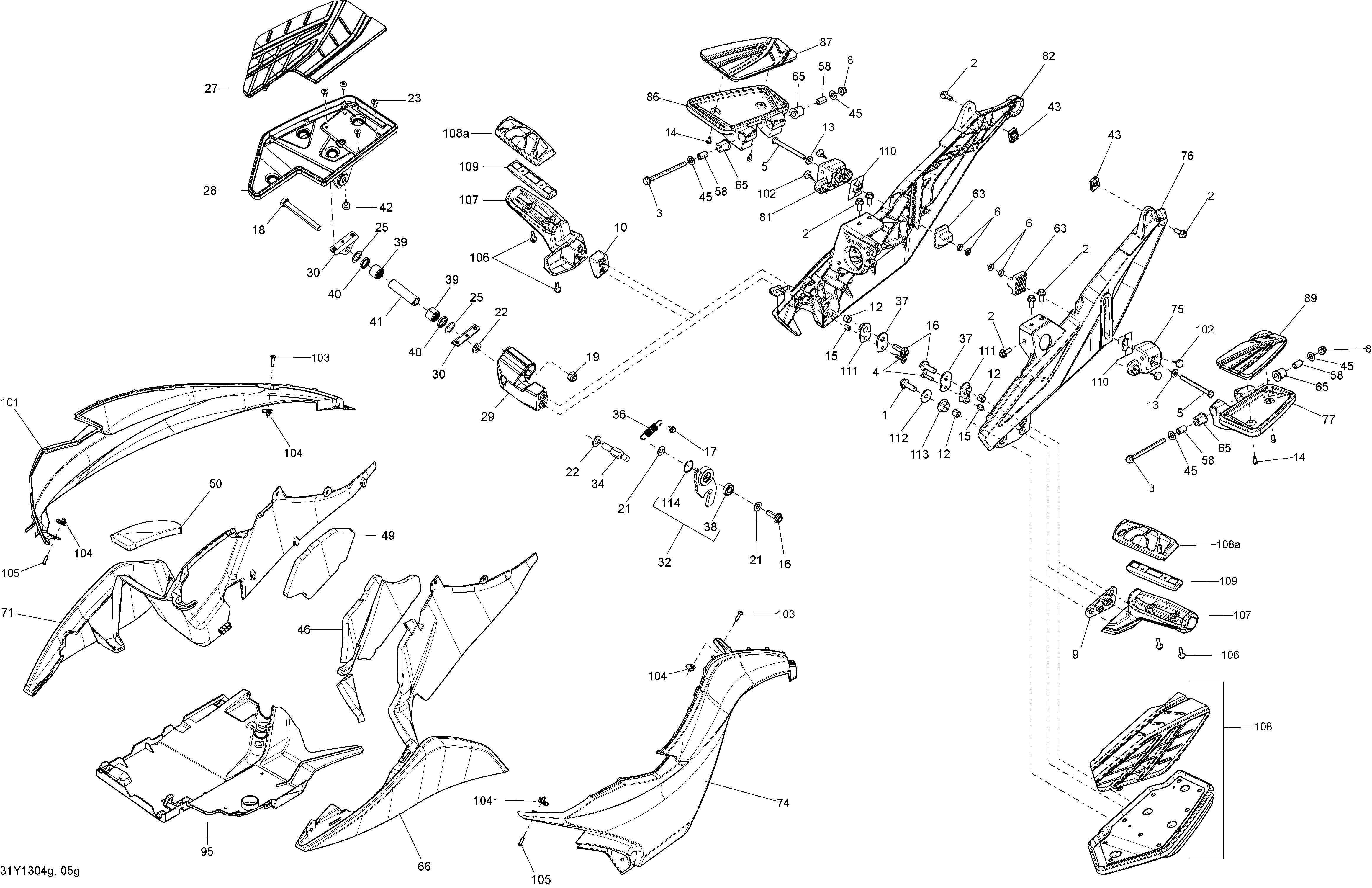

09- Body And Accessories G для BRP Spyder ST_STS SE5 - 2013
-
№АртикулНазвание
-
1207503044 Hex. Screw M10 X 1.5 X 30. TS SE5Hex. Screw M10 X 1.5 X 30. TS SE5
-
2207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. T, TSHex. Flanged Screw M8 X 20, Scotch Grip. T, TS
-
3230681034 Hex. Flanged Screw M8 X 110. T, TSHex. Flanged Screw M8 X 110. T, TS
-
4250000630 Torx Truss Screw M6 X 25. TTorx Truss Screw M6 X 25. T
-
5207189060 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
6232180600 Hex. Jam Nut M8. T, TSHex. Jam Nut M8. T, TS
-
8233281434 Hex. Flanged Elastic Nut M8. T, TSHex. Flanged Elastic Nut M8. T, TS
-
9705006423 LH Rubber Bushing. TLH Rubber Bushing. T
-
10705006424 RH Rubber Bushing. TRH Rubber Bushing. T
-
12705006555 Bushing. TBushing. T
-
13234281704 Spring Washer M8. T, TSSpring Washer M8. T, TS
-
14250000099 Allen Plastite Screw #12. T, TSAllen Plastite Screw #12. T, TS
-
15705006696 Bushing. TBushing. T
-
16207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
17207561044 Flanged Screw M6 X 10, Scotch Grip. TS SE5Flanged Screw M6 X 10, Scotch Grip. TS SE5
-
18230020586 Hexagonal Screw M12 X 105. TS SE5Hexagonal Screw M12 X 105. TS SE5
-
19232521416 Elastic Flanged Stop Nut M12. TS SE5Elastic Flanged Stop Nut M12. TS SE5
-
21234001410 Flat Washer 10 mm. TS SE5Flat Washer 10 mm. TS SE5
-
22234021430 Flat Washer. TS SE5Flat Washer. TS SE5
-
23250000223 Torx Screw M6 X 16. TS SE5Torx Screw M6 X 16. TS SE5
-
25250200136 Plastic Washer 20MM. TS SE5Plastic Washer 20MM. TS SE5
-
27705005333 RH Front Rubber Pad. TS SE5RH Front Rubber Pad. TS SE5
-
28705005334 RH Front Footrest Ass'y. TS SE5RH Front Footrest Ass'y. TS SE5
-
29705005723 Pivot Support. TS SE5Pivot Support. TS SE5
-
30705005861 Pivot Bracket. TS SE5Pivot Bracket. TS SE5
-
32705005367 Latch Ass'y. TS SE5Latch Ass'y. TS SE5
-
34705006428 Latch Pin M12 X 30. TS SE5Latch Pin M12 X 30. TS SE5
-
36705006533 Spring. TS SE5Spring. TS SE5
-
37705006557 Retaining Plate. TRetaining Plate. T
-
37705006557 Retaining Plate. T, TSRetaining Plate. T, TS
-
38705600458 BearingBearing
-
39706000447 Bearing. TS SE5Bearing. TS SE5
-
40706000448 Seal. TS SE5Seal. TS SE5
-
41706000731 Bushing. TS SE5Bushing. TS SE5
-
42708000759 Rubber Stopper. TS SE5Rubber Stopper. TS SE5
-
43250100069 Panet Nut M8 X 1.25. T, TSPanet Nut M8 X 1.25. T, TS
-
45503183800 Washer. T, TSWasher. T, TS
-
46518327010 LH Rocker Panel Foam. T, TSLH Rocker Panel Foam. T, TS
-
49518327011 RH Rocker Panel Foam. T, TSRH Rocker Panel Foam. T, TS
-
50518327438 RH Lateral Panel FoamRH Lateral Panel Foam
-
58705002153 Bushing. T, TSBushing. T, TS
-
63705003013 Adjuster Block. T, TSAdjuster Block. T, TS
-
65705003018 Rubber Bushing. T, TSRubber Bushing. T, TS
-
66705005266 LH Rocker Panel. T, TSLH Rocker Panel. T, TS
-
71705005267 RH Rocker Panel. T, TSRH Rocker Panel. T, TS
-
74705007668 LH Side Console, Steel Black. ST Steel Black MetLH Side Console, Steel Black. ST Steel Black Met
-
74705007674 LH Side Console, Magnesium. ST MagnesiumLH Side Console, Magnesium. ST Magnesium
-
74705007674 LH Side Console, Magnesium. ST-S MagnesiumLH Side Console, Magnesium. ST-S Magnesium
-
74705007682 LH Side Console, Yellow. Yellow CircuitLH Side Console, Yellow. Yellow Circuit
-
75705005337 LH Sliding Block. TLH Sliding Block. T
-
75705006799 LH Sliding Block, Black. TSLH Sliding Block, Black. TS
-
75705006799 LH Sliding Block, Black. TS SE5LH Sliding Block, Black. TS SE5
-
76705006796 LH Rear Foot Support. TS SE5LH Rear Foot Support. TS SE5
-
77705006798 LH Rear Footrest. TS SE5LH Rear Footrest. TS SE5
-
81705006801 RH Sliding Block, Black. TS SE5RH Sliding Block, Black. TS SE5
-
82705006794 RH Footrest Support, Black. TS SE5RH Footrest Support, Black. TS SE5
-
86705006800 RH Footrest Support, Black. TS SE5RH Footrest Support, Black. TS SE5
-
87705005350 RH Rear Rubber Pad. T, TSRH Rear Rubber Pad. T, TS
-
89705005351 LH Rear Rubber Pad. T, TSLH Rear Rubber Pad. T, TS
-
95705005413 LH Deflector Pannel. T, TSLH Deflector Pannel. T, TS
-
101705007665 RH Side Console, Steel Black. ST Steel Black MetRH Side Console, Steel Black. ST Steel Black Met
-
101705007676 RH Side Console, Magnesium. ST-S MagnesiumRH Side Console, Magnesium. ST-S Magnesium
-
101705007676 RH Side Console, Magnesium. ST MagnesiumRH Side Console, Magnesium. ST Magnesium
-
101705007683 RH Side Console, Yellow. Yellow CircuitRH Side Console, Yellow. Yellow Circuit
-
102708000759 Rubber Stopper. T, TSRubber Stopper. T, TS
-
103250000130 Torx Screw M5 X 20. T, TSTorx Screw M5 X 20. T, TS
-
104250000079 Panel Nut M5 X 0.8. T, TSPanel Nut M5 X 0.8. T, TS
-
104250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
105250000661 Socket Screw M5 X 16 F/. T, TSSocket Screw M5 X 16 F/. T, TS
-
106207562044 Flanged Screw M6 X 20, Scotch Grip. TFlanged Screw M6 X 20, Scotch Grip. T
-
107705005330 LH Front Footrest Ass'y. TS SE5LH Front Footrest Ass'y. TS SE5
-
107705006793 LH Front Footrest Ass'y. TS SM5LH Front Footrest Ass'y. TS SM5
-
107705006797 RH Front Footrest Ass'y. TS SM5RH Front Footrest Ass'y. TS SM5
-
108705005329 LH Front Rubber Pad. TS SE5LH Front Rubber Pad. TS SE5
-
108a705006297 LH Front Rubber PadLH Front Rubber Pad
-
109705006388 Vibration Dampener. TVibration Dampener. T
-
109705006388 Vibration Dampener. TVibration Dampener. T
-
110705007473 Lock PlateLock Plate
-
111705006556 Cushion. TCushion. T
-
111705006556 Cushion. TCushion. T
-
112234002600 Flat Washer 10 mm, Stainless. TFlat Washer 10 mm, Stainless. T
-
113705006554 Cushion. TCushion. T
