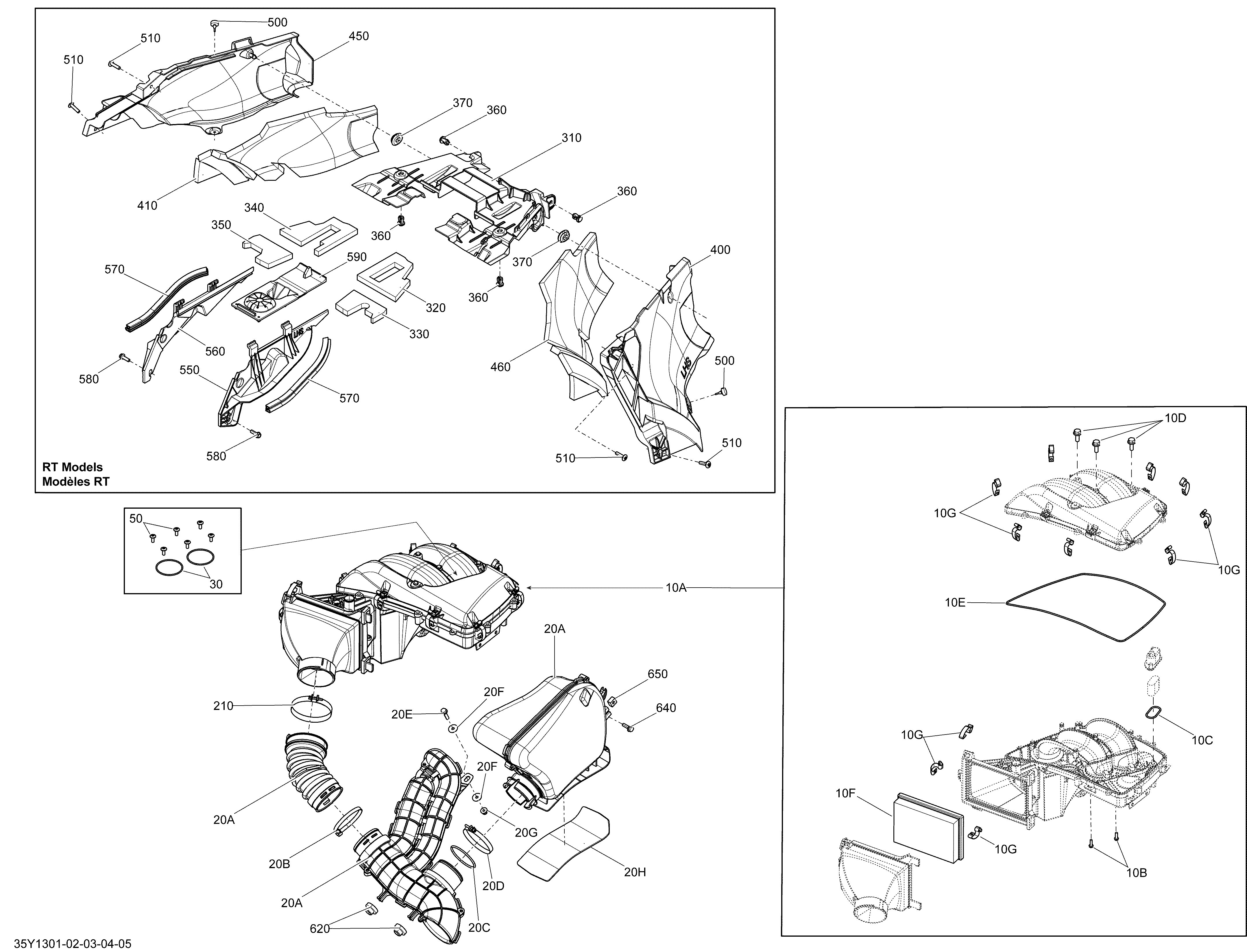

02- Air Intake для BRP Spyder ST_STS SE5 - 2013
-
№АртикулНазвание
-
10a707800466 Air Intake Ass'y. Includes 10A to 10GAir Intake Ass'y. Includes 10A to 10G
-
10b243141680 Hex. Screw M4.8 X 1.8Hex. Screw M4.8 X 1.8
-
10c707800462 GasketGasket
-
10d243141680 Hex. Screw M4.8 X 1.8Hex. Screw M4.8 X 1.8
-
10e707800491 GasketGasket
-
10f707800306 Air FilterAir Filter
-
10g707800342 Cover RetainerCover Retainer
-
20a707800472 Resonator A'ssy. Includes 20A to 20HResonator A'ssy. Includes 20A to 20H
-
20b509000165 Tie RapTie Rap
-
20c293300124 O-RingO-Ring
-
20d508000346 Gemi ClampGemi Clamp
-
20e207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
20f224060201 Flat WasherFlat Washer
-
20g233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20h707800464 Heat Shield FoilHeat Shield Foil
-
30707800198 O RingO Ring
-
50250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
210293650152 Gemi ClampGemi Clamp
-
620707800347 GrommetGrommet
-
640207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
650269500725 Nut Housing Ass'yNut Housing Ass'y
