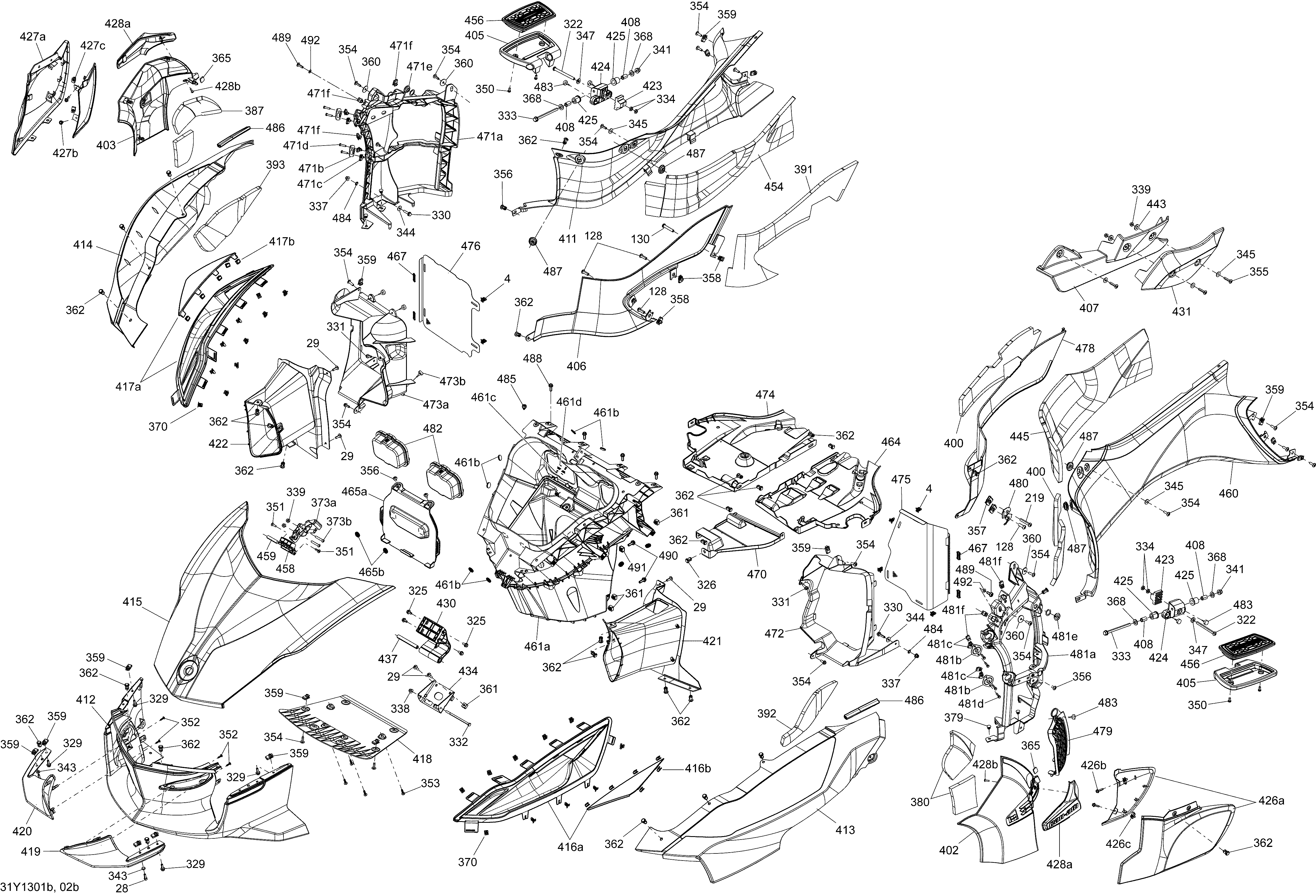

09- Body And Accessories Front для BRP Spyder RT_RTS SM5 - 2013

  • №
    Артикул
    Название
  • 4
    517302785 Clip
    Clip
  • 28
    205062044 Socket Head Screw M6 X 20
    Socket Head Screw M6 X 20
  • 29
    250000488 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 128
    205482060 Socket Head Screw M8 X 20
    Socket Head Screw M8 X 20
  • 130
    205484560 Socket Screw M8 X 45
    Socket Screw M8 X 45
  • 219
    205484560 Socket Screw M8 X 45
    Socket Screw M8 X 45
  • 322
    207189060 Hex. Screw M8 x 90
    Hex. Screw M8 x 90
  • 325
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 326
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 329
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 330
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 331
    210261680 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 332
    230061034 Hex. Screw M6 X 110
    Hex. Screw M6 X 110
  • 333
    230681034 Hex. Flanged Screw M8 X 110
    Hex. Flanged Screw M8 X 110
  • 334
    232180600 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 337
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 338
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 339
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 341
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 343
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 344
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 345
    234062670 Flat Washer
    Flat Washer
  • 347
    234281704 Spring Washer M8
    Spring Washer M8
  • 350
    250000099 Allen Plastite Screw #12
    Allen Plastite Screw #12
  • 351
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 352
    250000294 Torx Screw K40 X 16
    Torx Screw K40 X 16
  • 353
    250000297 Truss Head Torx Screw K50 X 20
    Truss Head Torx Screw K50 X 20
  • 354
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 355
    250000371 Torx Screw M6 X 30 Stainless
    Torx Screw M6 X 30 Stainless
  • 356
    250000454 Torx Screw M6 X 12
    Torx Screw M6 X 12
  • 357
    250100069 Panet Nut M8 X 1.25
    Panet Nut M8 X 1.25
  • 358
    250100111 Panel Nut M8
    Panel Nut M8
  • 359
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 360
    250200029 Washer M6
    Washer M6
  • 361
    269500725 Nut Housing Ass'y
    Nut Housing Ass'y
  • 362
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 365
    293830143 Rubber Pad
    Rubber Pad
  • 368
    503183800 Washer
    Washer
  • 370
    517302785 Clip. RT-STD-North America
    Clip. RT-STD-North America
  • 373a
    705007641 Latch Ass'y. Includes 373a to 373b
    Latch Ass'y. Includes 373a to 373b
  • 373b
    235563594 Torx Screw M6 X 35
    Torx Screw M6 X 35
  • 379
    518321954 Fastener Panel
    Fastener Panel
  • 380
    518324751 LH Side Panel Foam
    LH Side Panel Foam
  • 387
    518324752 RH Side Panel Foam
    RH Side Panel Foam
  • 391
    518324756 RH Lower Panel Foam
    RH Lower Panel Foam
  • 392
    518325855 LH Front Panel Foam
    LH Front Panel Foam
  • 393
    518325854 RH Front Panel Foam
    RH Front Panel Foam
  • 400
    518327490 LH Lower Panel Foam
    LH Lower Panel Foam
  • 402
    705006160 LH Lateral Side Panel, Red. Red Model
    LH Lateral Side Panel, Red. Red Model
  • 402
    705006151 LH Lateral Side Panel, Blue. Blue Model
    LH Lateral Side Panel, Blue. Blue Model
  • 402
    705006155 LH Lateral Side Panel, Magnesium. Magnesium Model
    LH Lateral Side Panel, Magnesium. Magnesium Model
  • 402
    705006311 LH Lateral Side Panel, Yellow. Yellow Model
    LH Lateral Side Panel, Yellow. Yellow Model
  • 403
    705006159 RH Lateral Side Panel, Red. Red Model
    RH Lateral Side Panel, Red. Red Model
  • 403
    705006152 RH Lateral Side Panel, Blue. Blue Model
    RH Lateral Side Panel, Blue. Blue Model
  • 403
    705006156 RH Lateral Side Panel, Magnesium. Magnesium Model
    RH Lateral Side Panel, Magnesium. Magnesium Model
  • 403
    705006306 RH Lateral Side Panel, Yellow. Yellow Model
    RH Lateral Side Panel, Yellow. Yellow Model
  • 405
    705005736 Rear Footrest. RT-STD
    Rear Footrest. RT-STD
  • 405
    705006839 Rear Footrest, Black. RT-S
    Rear Footrest, Black. RT-S
  • 406
    705006187 RH Lower Panel
    RH Lower Panel
  • 407
    705002092 Lower Belt Guard
    Lower Belt Guard
  • 408
    705002153 Bushing
    Bushing
  • 411
    705006179 RH Upper Lateral Panel, Red. Red Model
    RH Upper Lateral Panel, Red. Red Model
  • 411
    705006171 RH Upper Lateral Panel, Blue. Blue Model
    RH Upper Lateral Panel, Blue. Blue Model
  • 411
    705006176 RH Upper Lateral Panel, Magnesium. Magnesium Model
    RH Upper Lateral Panel, Magnesium. Magnesium Model
  • 411
    705006340 RH Upper Lateral Panel, Yellow. Yellow Model
    RH Upper Lateral Panel, Yellow. Yellow Model
  • 412
    705006185 Bumper Cover, Red. Red Model
    Bumper Cover, Red. Red Model
  • 412
    705006181 Bumper Cover, Blue. Blue Model
    Bumper Cover, Blue. Blue Model
  • 412
    705006183 Bumper Cover, Magnesium. Magnesium Model
    Bumper Cover, Magnesium. Magnesium Model
  • 412
    705006342 Bumper Cover, Yellow. Yellow Model
    Bumper Cover, Yellow. Yellow Model
  • 413
    705006197 LH Fronr Pannel, Red. Red Model
    LH Fronr Pannel, Red. Red Model
  • 413
    705006190 LH Fronr Pannel, Blue. Blue Model
    LH Fronr Pannel, Blue. Blue Model
  • 413
    705006193 LH Fronr Pannel, Magnesium. Magnesium Model
    LH Fronr Pannel, Magnesium. Magnesium Model
  • 413
    705006354 LH Fronr Pannel, Yellow. Yellow Model
    LH Fronr Pannel, Yellow. Yellow Model
  • 414
    705006198 RH Fronr Pannel, Red. Red Model
    RH Fronr Pannel, Red. Red Model
  • 414
    705006189 RH Fronr Pannel, Blue. Blue Model
    RH Fronr Pannel, Blue. Blue Model
  • 414
    705006194 RH Fronr Pannel, Magnesium. Magnesium Model
    RH Fronr Pannel, Magnesium. Magnesium Model
  • 414
    705006355 RH Fronr Pannel, Yellow. Yellow Model
    RH Fronr Pannel, Yellow. Yellow Model
  • 415
    705006150 Hood , Red. Red Model
    Hood , Red. Red Model
  • 415
    705006146 Hood , Blue. Blue Model
    Hood , Blue. Blue Model
  • 415
    219800224 Hood , Magnesium Met.. Magnesium Model
    Hood , Magnesium Met.. Magnesium Model
  • 415
    705006302 Hood , Yellow. Yellow Model
    Hood , Yellow. Yellow Model
  • 416a
    705003703 LH Air Duct Ass'y. Includes 416a to 416b, RT-STD-North America
    LH Air Duct Ass'y. Includes 416a to 416b, RT-STD-North America
  • 416b
    414479100 Clip. RT-STD-North America
    Clip. RT-STD-North America
  • 417a
    705003706 RH Air Duct Ass'y. Includes 417a to 417b, RT-STD-North America
    RH Air Duct Ass'y. Includes 417a to 417b, RT-STD-North America
  • 417b
    414479100 Clip. RT-STD-North America
    Clip. RT-STD-North America
  • 418
    705002837 Skid Plate
    Skid Plate
  • 419
    705007389 LH Front Wing. RT-STD
    LH Front Wing. RT-STD
  • 419
    705007393 LH Front Wing, Chrome. RT-S
    LH Front Wing, Chrome. RT-S
  • 420
    705007390 RH Front Wing. RT-STD
    RH Front Wing. RT-STD
  • 420
    705007394 RH Front Wing, Chrome. RT-S
    RH Front Wing, Chrome. RT-S
  • 421
    705007446 LH Lower Air Duct
    LH Lower Air Duct
  • 422
    705007447 RH Lower Air Duct
    RH Lower Air Duct
  • 423
    705003013 Adjuster Block
    Adjuster Block
  • 424
    705005735 Sliding Block. RT-STD
    Sliding Block. RT-STD
  • 424
    705006397 Sliding Block, Chrome
    Sliding Block, Chrome
  • 424
    705006840 Sliding Block, Black. RT-S
    Sliding Block, Black. RT-S
  • 425
    705003018 Rubber Bushing
    Rubber Bushing
  • 426a
    705003759 LH Water Deflector Ass'y. Includes 426a to 426c
    LH Water Deflector Ass'y. Includes 426a to 426c
  • 426b
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 426c
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 427a
    705003760 RH Water Deflector Ass'y. Includes 427a to 427c
    RH Water Deflector Ass'y. Includes 427a to 427c
  • 427b
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 427c
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 428a
    219400195 Side Panel Cap Kit, Chrome. Includes 428a to 428b
    Side Panel Cap Kit, Chrome. Includes 428a to 428b
  • 428b
    250000294 Torx Screw K40 X 16
    Torx Screw K40 X 16
  • 430
    705003248 Hood Arm
    Hood Arm
  • 431
    705003250 Belt Guard Cap
    Belt Guard Cap
  • 434
    705005434 Hood Pivot
    Hood Pivot
  • 437
    705003322 Spacer
    Spacer
  • 443
    705003696 Adhesive Spacer
    Adhesive Spacer
  • 445
    705003757 LH Upper Lateral Panel Foam
    LH Upper Lateral Panel Foam
  • 454
    705003758 RH Upper Lateral Panel Foam
    RH Upper Lateral Panel Foam
  • 456
    705004150 Rear Footrest Pad
    Rear Footrest Pad
  • 458
    705004468 Hood Guide
    Hood Guide
  • 459
    705004513 Bushing
    Bushing
  • 460
    705006180 LH Upper Lateral Panel, Red. Red Model
    LH Upper Lateral Panel, Red. Red Model
  • 460
    705006172 LH Upper Lateral Panel, Blue. Blue Model
    LH Upper Lateral Panel, Blue. Blue Model
  • 460
    705006175 LH Upper Lateral Panel, Magnesium. Magnesium Model
    LH Upper Lateral Panel, Magnesium. Magnesium Model
  • 460
    705006341 LH Upper Lateral Panel, Yellow. Yellow Model
    LH Upper Lateral Panel, Yellow. Yellow Model
  • 461a
    705007219 Storage Box Ass'y. Includes 461a to 461d
    Storage Box Ass'y. Includes 461a to 461d
  • 461b
    293740028 Dual Lock Washer 3/4''
    Dual Lock Washer 3/4''
  • 461c
    390401400 Rivet
    Rivet
  • 461d
    234031600 Flat Washer 3 mm, Stainless Steel
    Flat Washer 3 mm, Stainless Steel
  • 464
    705004610 LH Deflector Pannel
    LH Deflector Pannel
  • 465a
    705004628 Battery Cover Ass'Y. Includes 465a to 465b
    Battery Cover Ass'Y. Includes 465a to 465b
  • 465b
    293740028 Dual Lock Washer 3/4''
    Dual Lock Washer 3/4''
  • 467
    705004838 Flat Clip
    Flat Clip
  • 470
    705005447 LH Skid Plate
    LH Skid Plate
  • 471a
    705005449 RH Side Panel Support Ass'y. Includes 471a to 471f
    RH Side Panel Support Ass'y. Includes 471a to 471f
  • 471b
    705005055 Grommet Ass'y
    Grommet Ass'y
  • 471c
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 471d
    207152060 Hex. Screw M5 X 20
    Hex. Screw M5 X 20
  • 471e
    705003264 Grommet
    Grommet
  • 471f
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 472
    705005892 LH Radiator Moulding
    LH Radiator Moulding
  • 473a
    705006697 RH Radiator Moulding. Includes 473a to 473b
    RH Radiator Moulding. Includes 473a to 473b
  • 473b
    708000759 Rubber Stopper
    Rubber Stopper
  • 474
    705005911 RH Deflector Pannel
    RH Deflector Pannel
  • 475
    705006593 LH Painted Radiator Grille
    LH Painted Radiator Grille
  • 476
    705006594 RH Painted Radiator Grille
    RH Painted Radiator Grille
  • 478
    705006820 LH Lower Pannel
    LH Lower Pannel
  • 479
    705007307 LH Side Grill
    LH Side Grill
  • 480
    705007375 Panel Support
    Panel Support
  • 481a
    705006843 LH Side Panel Support Ass'y. Includes 481a to 481f
    LH Side Panel Support Ass'y. Includes 481a to 481f
  • 481b
    705005055 Grommet Ass'y
    Grommet Ass'y
  • 481c
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 481d
    207152060 Hex. Screw M5 X 20
    Hex. Screw M5 X 20
  • 481e
    705003264 Grommet
    Grommet
  • 481f
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 482
    705007483 Fuse Cover Ass'y
    Fuse Cover Ass'y
  • 483
    708000759 Rubber Stopper
    Rubber Stopper
  • 484
    250100163 Pressure Nut
    Pressure Nut
  • 485
    293830005 Rubber Plug
    Rubber Plug
  • 486
    293200020 Seal, Meter
    Seal, Meter
  • 487
    705000321 Oval Washer
    Oval Washer
  • 488
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 489
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 490
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 491
    269500725 Nut Housing Ass'y
    Nut Housing Ass'y
  • 492
    705003207 Plastic Washer
    Plastic Washer

Все узлы модели:
