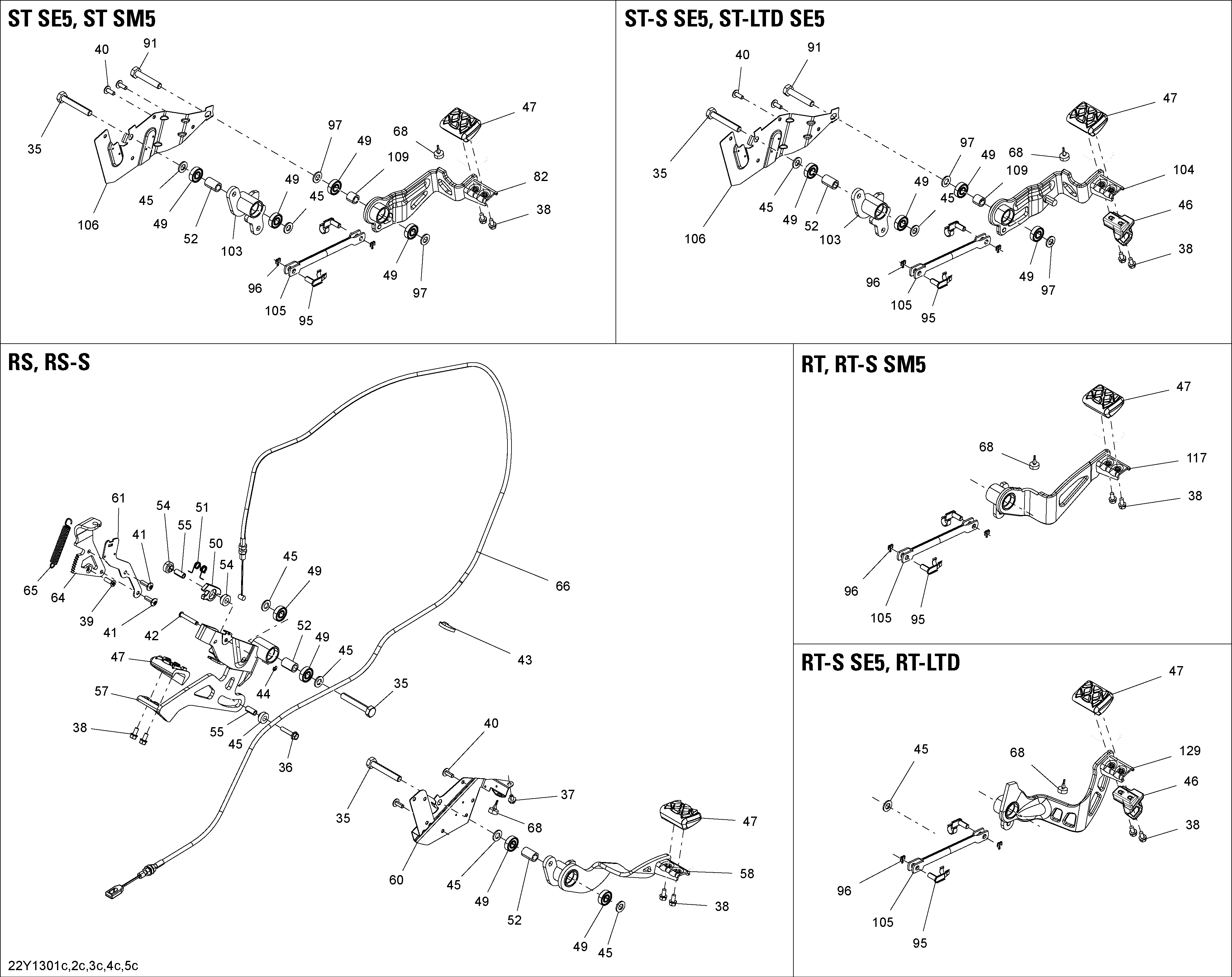

06- Hydraulic Brake Pedal для BRP Spyder RT_RTS SM5 - 2013

  • №
    Артикул
    Название
  • 35
    207206534 Hex. Screw M10 X 65, Scotch Grip
    Hex. Screw M10 X 65, Scotch Grip
  • 38
    210261280 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 43
    414115200 Tie-Rap 180 mm. RT
    Tie-Rap 180 mm. RT
  • 45
    503183800 Washer
    Washer
  • 46
    705601217 Pedal Guard. SE5
    Pedal Guard. SE5
  • 47
    705004933 Rubber Pad
    Rubber Pad
  • 49
    705600458 Bearing
    Bearing
  • 52
    705600541 Bushing
    Bushing
  • 66
    707001097 Parking Brake Cable. RT
    Parking Brake Cable. RT
  • 68
    708000759 Rubber Stopper
    Rubber Stopper
  • 91
    207205544 Hex. Screw M10 X 55, Scotch Grip. RT
    Hex. Screw M10 X 55, Scotch Grip. RT
  • 95
    250400062 Pin. RT
    Pin. RT
  • 96
    371800700 Cotter Pin. RT
    Cotter Pin. RT
  • 97
    503183800 Washer. RT
    Washer. RT
  • 103
    705600855 Rocker Arm. RT
    Rocker Arm. RT
  • 105
    705600959 Connecting Rod. RT
    Connecting Rod. RT
  • 106
    705600842 Tab Lock. RT
    Tab Lock. RT
  • 109
    705601083 Bushing. RT S SE5
    Bushing. RT S SE5
  • 109
    705600541 Bushing. RT S SM5
    Bushing. RT S SM5
  • 109
    705600541 Bushing. RT STD
    Bushing. RT STD
  • 117
    705601116 Brake Pedal. RT S SM5
    Brake Pedal. RT S SM5
  • 117
    705601114 Brake Pedal. RT STD SM5
    Brake Pedal. RT STD SM5
  • 129
    705601187 Brake Pedal. RT S SE5
    Brake Pedal. RT S SE5
  • 129
    705601114 Brake Pedal. RT STD SE5
    Brake Pedal. RT STD SE5
