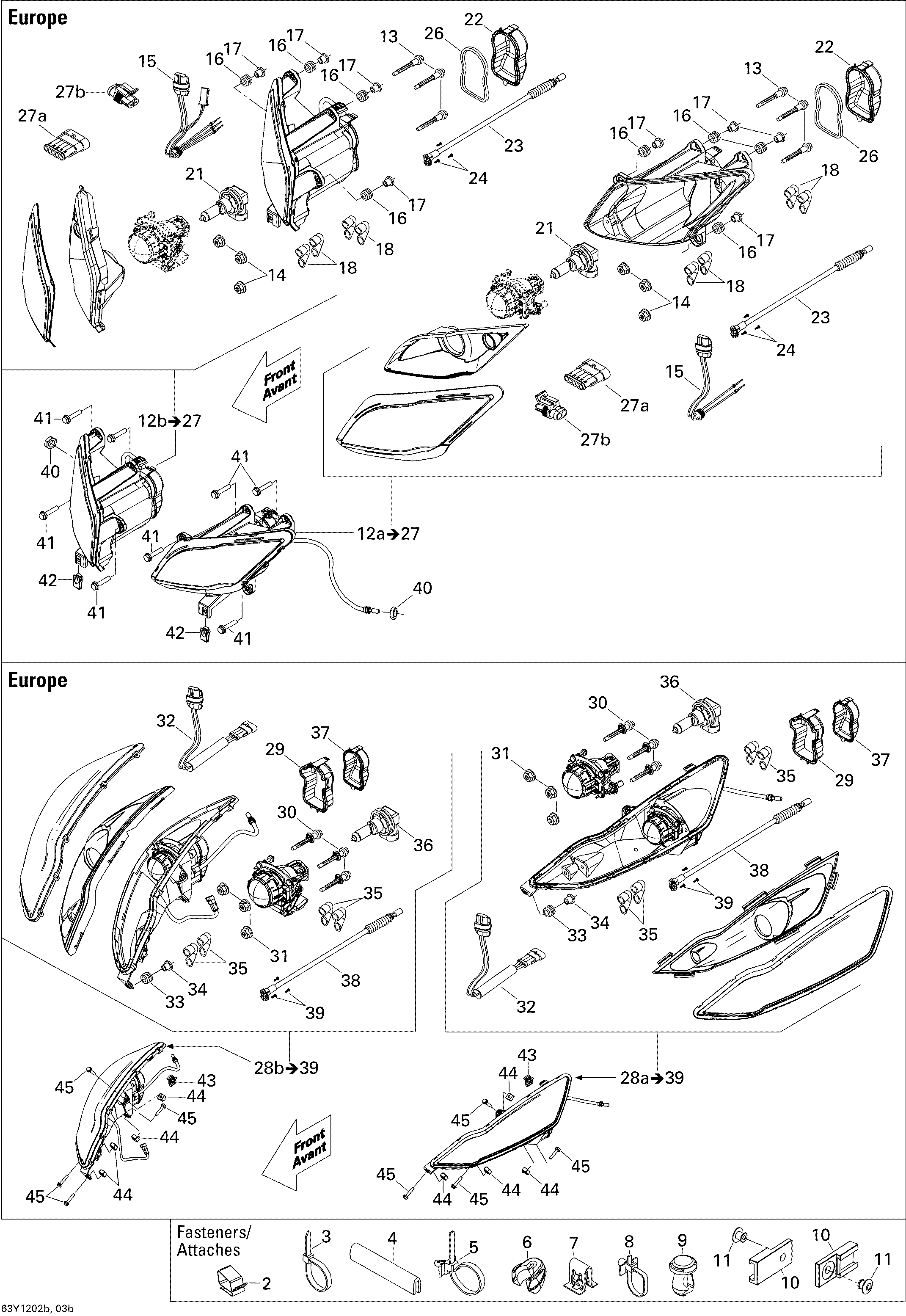

10- Lighting System , Europe для BRP Spyder RT SE5 - 2012
-
№АртикулНазвание
-
2414227300 Clip. SClip. S
-
3293750002 Tie-Rap 142 mm. STDTie-Rap 142 mm. STD
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515175220 Tie RapTie Rap
-
4271001530 TrimTrim
-
5293750009 Tie-Rap 173 mm. SE5Tie-Rap 173 mm. SE5
-
6710001452 Wire BracketWire Bracket
-
7517302785 Clip. EuropeClip. Europe
-
8710002197 Unlocking ClipUnlocking Clip
-
9293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
10270000141 ClipClip
-
11390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
12a710001384 LH High Beam Ass'y. EuropeLH High Beam Ass'y. Europe
-
12b710001386 RH High Beam Ass'y. EuropeRH High Beam Ass'y. Europe
-
16219800100 Antivibration. EuropeAntivibration. Europe
-
17219800099 Spacer. EuropeSpacer. Europe
-
18219800133 Rubber Ventilation. EuropeRubber Ventilation. Europe
-
21219800140 Halogen Bulb H9 65W. EuropeHalogen Bulb H9 65W. Europe
-
22219800174 Cover With Gasket. EuropeCover With Gasket. Europe
-
23219800111 Adjustement Cable. EuropeAdjustement Cable. Europe
-
24219800110 Chromed Screw 4X13. EuropeChromed Screw 4X13. Europe
-
26219800139 GasketGasket
-
27a710000779 Housing. EuropeHousing. Europe
-
27b710002160 Connector With PlugConnector With Plug
-
28a710001387 LH Low Beam Ass'y. EuropeLH Low Beam Ass'y. Europe
-
28b710001388 RH Low Beam Ass'y. EuropeRH Low Beam Ass'y. Europe
-
33219800100 Antivibration. EuropeAntivibration. Europe
-
34219800099 Spacer. EuropeSpacer. Europe
-
35219800101 Rubber VentilationRubber Ventilation
-
36415129249 Halogen BulbHalogen Bulb
-
37219800174 Cover With Gasket. EuropeCover With Gasket. Europe
-
38219800105 Adjustement CableAdjustement Cable
-
39219800110 Chromed Screw 4X13. EuropeChromed Screw 4X13. Europe
-
40232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
41207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
42250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
43517302785 Clip. EuropeClip. Europe
-
44269500725 Nut Housing Ass'y. EuropeNut Housing Ass'y. Europe
-
45207663044 Hex. Flanged Screw M6 X 30. EuropeHex. Flanged Screw M6 X 30. Europe
