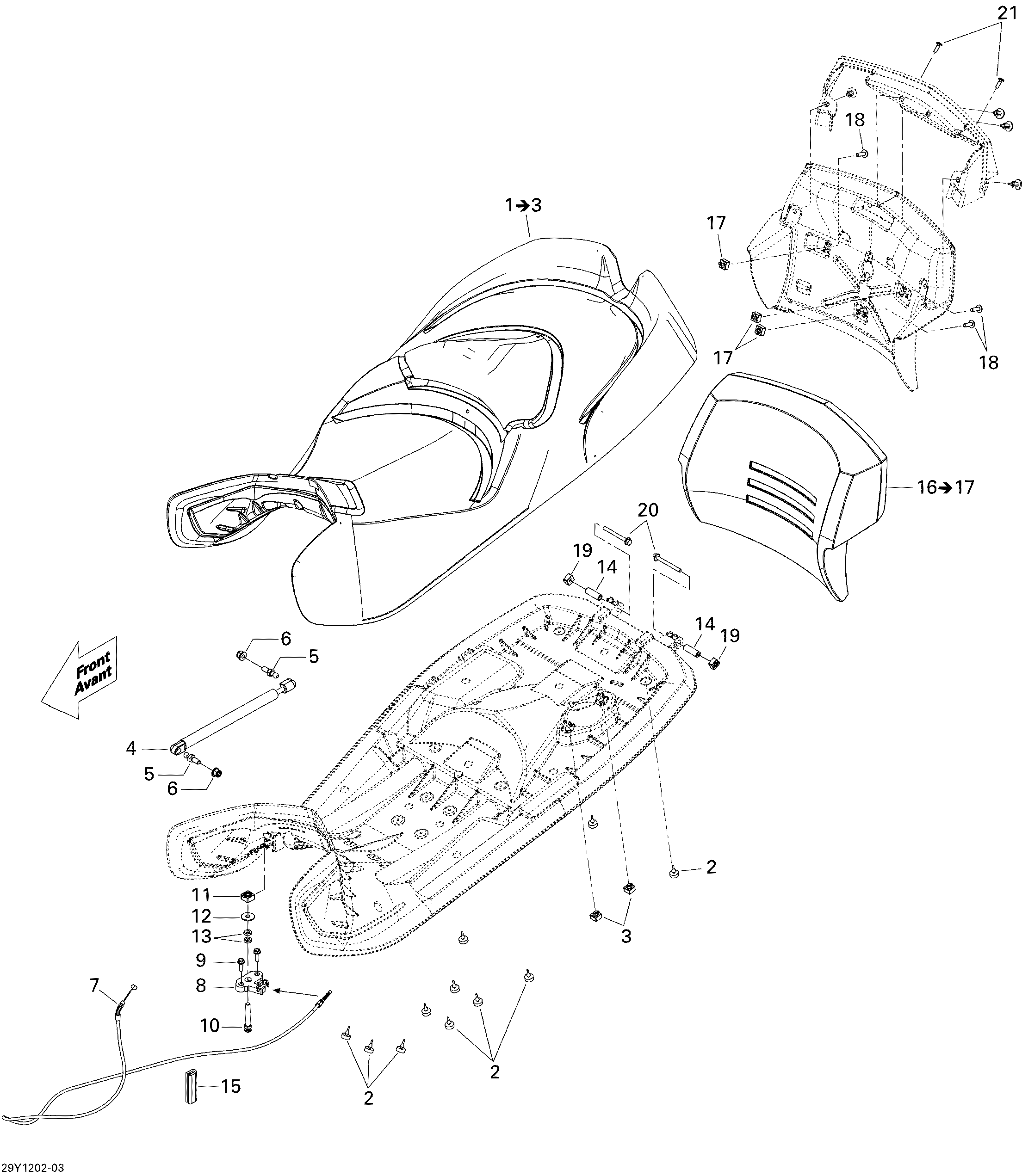

09- Seat для BRP Spyder RT SE5 - 2012
-
№АртикулНазвание
-
1708000911 Seat Ass'y. Includes 1 to 3Seat Ass'y. Includes 1 to 3
-
2708000759 Rubber StopperRubber Stopper
-
3269501166 Nut Housing Ass'yNut Housing Ass'y
-
4708000658 Gaz ShockGaz Shock
-
5250300039 Ball StudBall Stud
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7708000489 Cable SeatCable Seat
-
8705005904 LatchLatch
-
9210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
10705002223 LugLug
-
11269501387 Nut Housing Ass'yNut Housing Ass'y
-
12234082410 Flat Washer 8 mmFlat Washer 8 mm
-
13232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
14708000664 SpacerSpacer
-
15271001530 TrimTrim
-
16708000907 Backrest Ass'y. Includes 16 to 17Backrest Ass'y. Includes 16 to 17
-
17269501166 Nut Housing Ass'yNut Housing Ass'y
-
18250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19269500725 Nut Housing Ass'yNut Housing Ass'y
-
20250000397 Hex. Flanged Screw DIN.6921 M6 X 60Hex. Flanged Screw DIN.6921 M6 X 60
-
21250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
