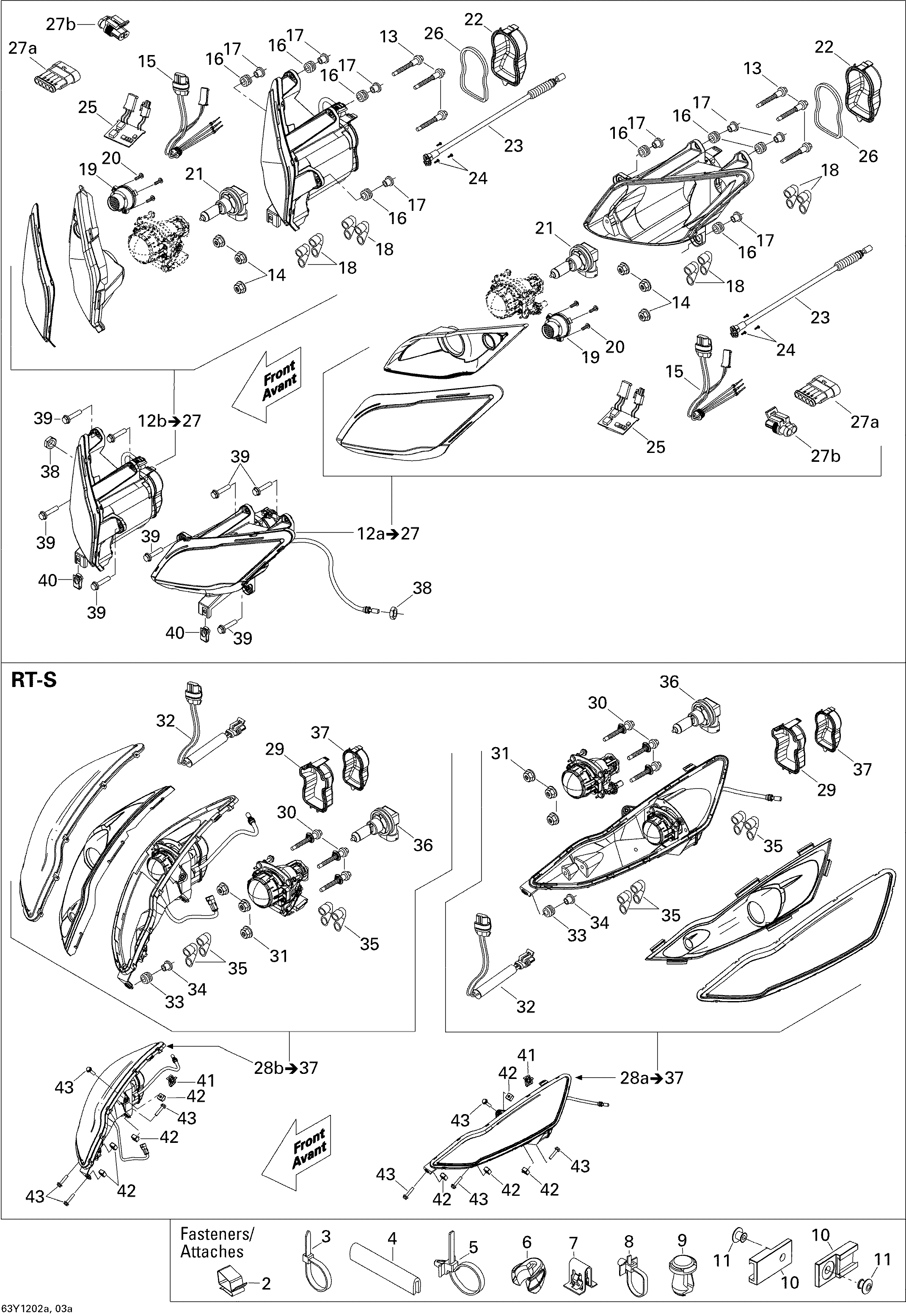

10- Lighting System , North America для BRP Spyder RT Limited - 2012
-
№АртикулНазвание
-
2414227300 Clip. LTDClip. LTD
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515175220 Tie RapTie Rap
-
4271001530 TrimTrim
-
5293750009 Tie-Rap 173 mm. SE5Tie-Rap 173 mm. SE5
-
6710001452 Wire BracketWire Bracket
-
7517302785 Clip. LTDClip. LTD
-
8710002197 Unlocking ClipUnlocking Clip
-
9293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
10270000141 ClipClip
-
11390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
12a710003098 LH Bi-Halogen Beam Ass'y. LTDLH Bi-Halogen Beam Ass'y. LTD
-
12b710003097 RH Bi-Halogen Beam Ass'y. LTDRH Bi-Halogen Beam Ass'y. LTD
-
12b710001386 RH High Beam Ass'yRH High Beam Ass'y
-
16219800100 Antivibration. LTDAntivibration. LTD
-
16219800100 AntivibrationAntivibration
-
17219800099 Spacer. LTDSpacer. LTD
-
17219800099 SpacerSpacer
-
18219800133 Rubber Ventilation. LTDRubber Ventilation. LTD
-
18219800133 Rubber VentilationRubber Ventilation
-
19710003096 Auxilary Light. LTDAuxilary Light. LTD
-
20219800134 Chromed Screw 4X19. LTDChromed Screw 4X19. LTD
-
20219800110 Chromed Screw 4X13Chromed Screw 4X13
-
21219800136 Halogen Bulb HB3 65W. LTDHalogen Bulb HB3 65W. LTD
-
21219800140 Halogen Bulb H9 65WHalogen Bulb H9 65W
-
22219800174 Cover With Gasket. LTDCover With Gasket. LTD
-
23219800111 Adjustement Cable. LTDAdjustement Cable. LTD
-
23219800111 Adjustement CableAdjustement Cable
-
24219800110 Chromed Screw 4X13. LTDChromed Screw 4X13. LTD
-
26219800174 Cover With Gasket. LTDCover With Gasket. LTD
-
26219800174 Cover With GasketCover With Gasket
-
26219800174 Cover With GasketCover With Gasket
-
27a710000779 Housing. LTDHousing. LTD
-
27a710000779 HousingHousing
-
27b710002160 Connector With PlugConnector With Plug
-
28a710002151 LH Fog Light. LTDLH Fog Light. LTD
-
28b710002150 RH Fog Light. LTDRH Fog Light. LTD
-
33219800100 Antivibration. LTDAntivibration. LTD
-
33219800100 Antivibration. LTDAntivibration. LTD
-
34219800099 Spacer. LTDSpacer. LTD
-
34219800099 Spacer. LTDSpacer. LTD
-
35219800101 Rubber Ventilation. LTDRubber Ventilation. LTD
-
35219800101 Rubber Ventilation. LTDRubber Ventilation. LTD
-
36219800149 Halogen Bulb H8 12V 35W. LTDHalogen Bulb H8 12V 35W. LTD
-
36219800149 Halogen Bulb H8 12V 35W. LTDHalogen Bulb H8 12V 35W. LTD
-
37219800174 Cover With Gasket. LTDCover With Gasket. LTD
-
37219800174 Cover With Gasket. LTDCover With Gasket. LTD
-
38232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
39207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
40250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
41517302785 Clip. LTDClip. LTD
-
42269500725 Nut Housing Ass'y. LTDNut Housing Ass'y. LTD
-
43207663044 Hex. Flanged Screw M6 X 30. LTDHex. Flanged Screw M6 X 30. LTD
