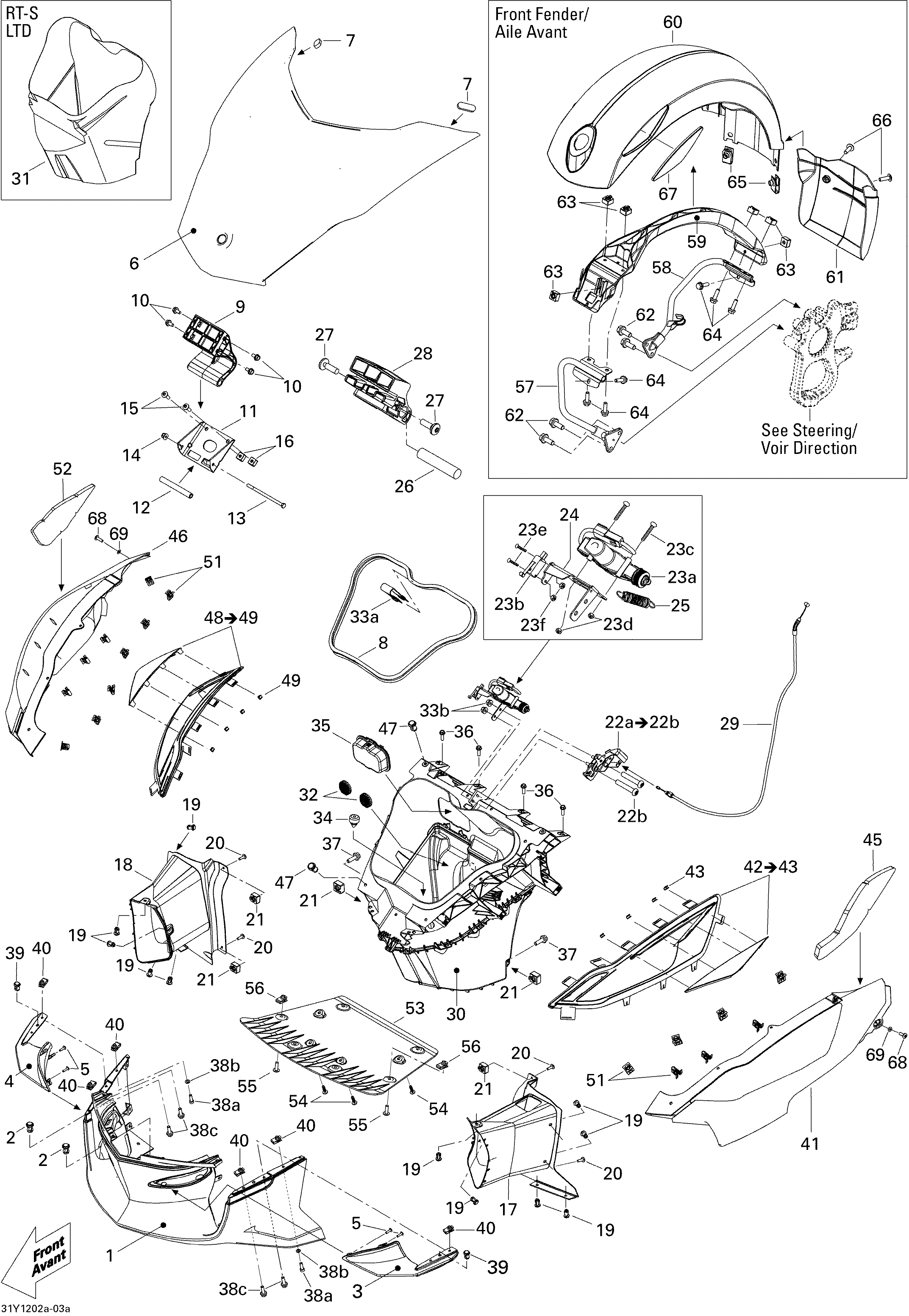

09- Body And Accessories Front для BRP Spyder RT Limited - 2012

№

Артикул

Название
1

705006181 Bumper Cover, Blue. Blue Model

Bumper Cover, Blue. Blue Model
1

705006182 Bumper Cover, Bronze. Bronze Model

Bumper Cover, Bronze. Bronze Model
1

705006183 Bumper Cover, Magnesium. Magnesium Model

Bumper Cover, Magnesium. Magnesium Model
1

705006184 Bumper Cover, White. White Model

Bumper Cover, White. White Model
1

705006185 Bumper Cover, Red. Red Model

Bumper Cover, Red. Red Model
2

293150089 Tuflok Plastic Rivet

Tuflok Plastic Rivet
3

705002845 LH Front Aileron. STD, Techno, Audio & Conv.

LH Front Aileron. STD, Techno, Audio & Conv.
3

705003308 LH Front Aileron, Chrome. S, LTD

LH Front Aileron, Chrome. S, LTD
4

705002846 RH Front Aileron. STD, Techno, Audio & Conv.

RH Front Aileron. STD, Techno, Audio & Conv.
4

705003310 RH Front Aileron, Chrome. S, LTD

RH Front Aileron, Chrome. S, LTD
5

250000294 Torx Screw K40 X 16

Torx Screw K40 X 16
6

705006146 Hood , Blue. Blue Model

Hood , Blue. Blue Model
6

705006147 Hood , Bronze. Bronze Model

Hood , Bronze. Bronze Model
6

705006148 Hood , Magnesium. Magnesium Model

Hood , Magnesium. Magnesium Model
6

705006149 Hood , White. White Model

Hood , White. White Model
6

705006150 Hood , Red. Red Model

Hood , Red. Red Model
7

705006824 Neoprene Pad

Neoprene Pad
8

293250047 Neoprene Seal

Neoprene Seal
9

705003248 Hood Arm

Hood Arm
10

207561244 Hex. Flanged Screw M6 X 12, Scotch Grip

Hex. Flanged Screw M6 X 12, Scotch Grip
11

705005434 Hood Pivot

Hood Pivot
12

705003322 Spacer

Spacer
13

230061034 Hex. Screw M6 X 110

Hex. Screw M6 X 110
14

233261434 Flanged Elastic Nut M6

Flanged Elastic Nut M6
15

250000488 Torx Truss Screw M6 X 20

Torx Truss Screw M6 X 20
16

269500725 Nut Housing Ass'y

Nut Housing Ass'y
17

705002982 LH Lower Air Intake Duct

LH Lower Air Intake Duct
18

705002983 RH Lower Air Intake Duct

RH Lower Air Intake Duct
19

293150089 Tuflok Plastic Rivet

Tuflok Plastic Rivet
20

250000488 Torx Truss Screw M6 X 20

Torx Truss Screw M6 X 20
21

269500725 Nut Housing Ass'y

Nut Housing Ass'y
22a

705004141 Latch Ass'y

Latch Ass'y
22b

235563594 Torx Screw M6 X 35

Torx Screw M6 X 35
23a

710001554 Actuator. Techno, Audio & Conv.

Actuator. Techno, Audio & Conv.
23a

710001554 Actuator. S, LTD

Actuator. S, LTD
23b

710001861 Position Sensor. Techno, Audio & Conv.

Position Sensor. Techno, Audio & Conv.
23b

710001861 Position Sensor. S, LTD

Position Sensor. S, LTD
23C

207144060 Hex. Screw M4 X 40

Hex. Screw M4 X 40
23D

232541600 Elastic Stop Nut M4

Elastic Stop Nut M4
23E

207132044 Hex Screw M3 X 20

Hex Screw M3 X 20
23F

232531423 Elastic Stop Nut M3

Elastic Stop Nut M3
24

705003691 Actuator Bracket. Techno, Audio & Conv.

Actuator Bracket. Techno, Audio & Conv.
24

705003691 Actuator Bracket. S, LTD

Actuator Bracket. S, LTD
25

705003692 Spring. Techno, Audio & Conv.

Spring. Techno, Audio & Conv.
25

705003692 Spring. S, LTD

Spring. S, LTD
26

705004513 Bushing

Bushing
27

250000146 Truss Head Torx Screw K50 X 16

Truss Head Torx Screw K50 X 16
28

705004468 Hood Guide

Hood Guide
29

517304413 Hood Cable

Hood Cable
30

705005905 Storage Box Ass'y

Storage Box Ass'y
31

219400166 Front Trunk Liner Kit. S, LTD

Front Trunk Liner Kit. S, LTD
33a

705004357 Holding Strap. STD, Techno, Audio & Conv.

Holding Strap. STD, Techno, Audio & Conv.
33b

233261494 Hex. Elastic Flanged Nut M6

Hex. Elastic Flanged Nut M6
34

293830005 Rubber Plug

Rubber Plug
35

705003626 Fuse Cap Ass'y

Fuse Cap Ass'y
36

210262080 Hex. Forming Screw M6 X 20

Hex. Forming Screw M6 X 20
37

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
38a

205062044 Socket Head Screw M6 X 20

Socket Head Screw M6 X 20
38b

234061410 Flat Washer 6 mm

Flat Washer 6 mm
38c

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
39

293150089 Tuflok Plastic Rivet

Tuflok Plastic Rivet
40

250100113 Panel Nut, M6 X 1.0

Panel Nut, M6 X 1.0
41

705006190 LH Fronr Pannel, Blue. Blue Model

LH Fronr Pannel, Blue. Blue Model
41

705006192 LH Fronr Pannel, Bronze. Bronze Model

LH Fronr Pannel, Bronze. Bronze Model
41

705006193 LH Fronr Pannel, Magnesium. Magnesium Model

LH Fronr Pannel, Magnesium. Magnesium Model
41

705006195 LH Fronr Pannel, White. White Model

LH Fronr Pannel, White. White Model
41

705006197 LH Fronr Pannel, Red. Red Model

LH Fronr Pannel, Red. Red Model
42

705003703 LH Air Duct Ass'y. North Am. STD, North Am. Audio & Conv.

LH Air Duct Ass'y. North Am. STD, North Am. Audio & Conv.
43

414479100 Clip

Clip
45

518325855 LH Front Panel Foam. North Am. STD, North Am. Audio & Conv.

LH Front Panel Foam. North Am. STD, North Am. Audio & Conv.
46

705006189 RH Fronr Pannel, Blue. Blue Model

RH Fronr Pannel, Blue. Blue Model
46

705006191 RH Fronr Pannel, Bronze. Bronze Model

RH Fronr Pannel, Bronze. Bronze Model
46

705006194 RH Fronr Pannel, Magnesium. Magnesium Model

RH Fronr Pannel, Magnesium. Magnesium Model
46

705006196 RH Fronr Pannel, White. White Model

RH Fronr Pannel, White. White Model
46

705006198 RH Fronr Pannel, Red. Red Model

RH Fronr Pannel, Red. Red Model
47

293150089 Tuflok Plastic Rivet

Tuflok Plastic Rivet
48

705003706 RH Air Duct Ass'y. North Am. STD, North Am. Audio & Conv.

RH Air Duct Ass'y. North Am. STD, North Am. Audio & Conv.
49

414479100 Clip. North Am. STD, North Am. Audio & Conv.

Clip. North Am. STD, North Am. Audio & Conv.
51

517302785 Clip. North Am. STD, North Am. Audio & Conv.

Clip. North Am. STD, North Am. Audio & Conv.
52

518325854 RH Front Panel Foam

RH Front Panel Foam
53

705002837 Skid Plate

Skid Plate
54

250000297 Truss Head Torx Screw K50 X 20

Truss Head Torx Screw K50 X 20
55

250000350 Torx Truss Screw M6 X 20

Torx Truss Screw M6 X 20
56

250100113 Panel Nut, M6 X 1.0

Panel Nut, M6 X 1.0
57

705003456 LH Fender Front Support

LH Fender Front Support
57

705003457 RH Fender Front Support

RH Fender Front Support
58

705003462 LH Fender Rear Support

LH Fender Rear Support
58

705003463 RH Fender Rear Support

RH Fender Rear Support
59

705002389 Central Front Fender Support

Central Front Fender Support
60

705003901 LH Front Fender, Quantum Blue. Blue Model

LH Front Fender, Quantum Blue. Blue Model
60

705003904 LH Front Fender, Pearl White. White Model

LH Front Fender, Pearl White. White Model
60

705004613 LH Front Fender, Metallic Magnesium. Magnesium Model

LH Front Fender, Metallic Magnesium. Magnesium Model
60

705005070 LH Front Fender, Viper Red. Red Model

LH Front Fender, Viper Red. Red Model
60

705005492 LH Front Fender, Bronze. Bronze Model

LH Front Fender, Bronze. Bronze Model
60

705003902 RH Front Fender, Quantum Blue. Blue Model

RH Front Fender, Quantum Blue. Blue Model
60

705003903 RH Front Fender, Pearl White. White Model

RH Front Fender, Pearl White. White Model
60

705004614 RH Front Fender, Metallic Magnesium. Magnesium Model

RH Front Fender, Metallic Magnesium. Magnesium Model
60

705005071 RH Front Fender, Viper Red. Red Model

RH Front Fender, Viper Red. Red Model
60

705005493 RH Front Fender, Bronze. Bronze Model

RH Front Fender, Bronze. Bronze Model
61

705001767 LH Mudguard

LH Mudguard
61

705001768 RH Mudguard

RH Mudguard
62

207582034 Hex. Flanged Screw, Scotch Grip

Hex. Flanged Screw, Scotch Grip
63

269500725 Nut Housing Ass'y

Nut Housing Ass'y
64

207662084 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20
65

250100113 Panel Nut, M6 X 1.0

Panel Nut, M6 X 1.0
66

250000350 Torx Truss Screw M6 X 20

Torx Truss Screw M6 X 20
67

705002423 Amber Lateral Reflector

Amber Lateral Reflector
68

250000350 Torx Truss Screw M6 X 20

Torx Truss Screw M6 X 20
69

705003207 Plastic Washer

Plastic Washer
