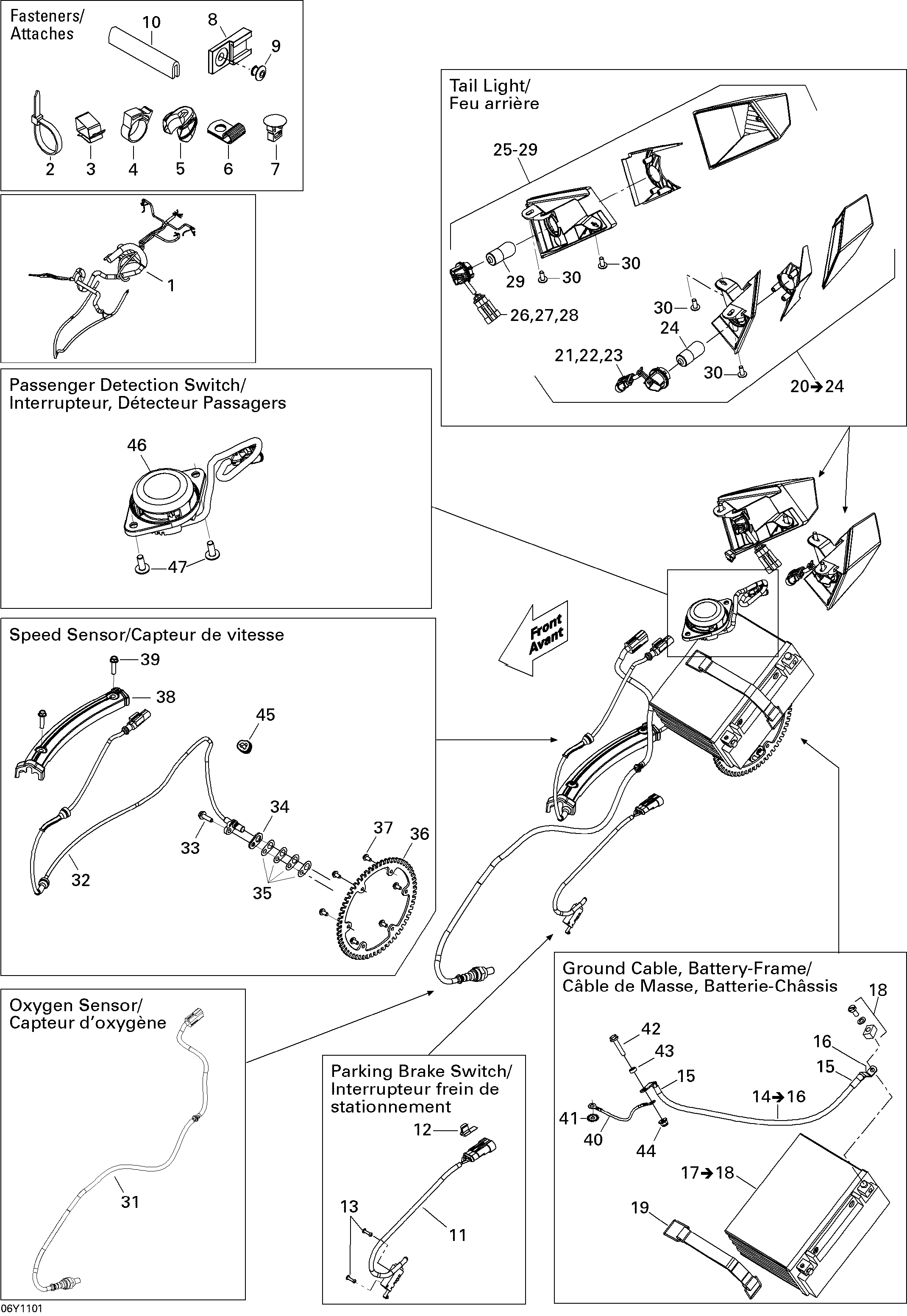

10- Electrical Accessories, Rear SM5 для BRP Spyder RS Roadster SM5 - 2011
-
№АртикулНазвание
-
1710001730 Frame Harness. SM5Frame Harness. SM5
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3414227300 Clip. SM5Clip. SM5
-
4293650082 ClampClamp
-
5710001452 Wire BracketWire Bracket
-
6415052400 AttacheAttache
-
7293750044 Tie Rap MountTie Rap Mount
-
8270000141 ClipClip
-
9390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
10271001530 TrimTrim
-
11710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
12710001343 ClipClip
-
13293150150 Pop RivetPop Rivet
-
14710000830 Ground Cable, Battery/frame. Includes 14 to 16Ground Cable, Battery/frame. Includes 14 to 16
-
15710000483 Shrink TubingShrink Tubing
-
16710000518 Open BarrelOpen Barrel
-
17410922962 Battery, 12 Volts, 21 Amperes. Includes 17 to 18Battery, 12 Volts, 21 Amperes. Includes 17 to 18
-
18295500849 Battery Fastener KitBattery Fastener Kit
-
19515176044 Battery StrapBattery Strap
-
20710000706 Tail Light Ass'y. Includes 20 to 24Tail Light Ass'y. Includes 20 to 24
-
21710000568 HousingHousing
-
22409012900 Male TerminalMale Terminal
-
23278001013 Wire SealWire Seal
-
24520000758 BulbBulb
-
25710000869 Tail Light Ass'y. Includes 25 to 29Tail Light Ass'y. Includes 25 to 29
-
26710000568 HousingHousing
-
27409012900 Male TerminalMale Terminal
-
28278001013 Wire SealWire Seal
-
29520000758 BulbBulb
-
30250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
31707600557 Oxygen SensorOxygen Sensor
-
32706200560 Speed SensorSpeed Sensor
-
33210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
34710002024 ShimShim
-
35710002023 ShimShim
-
36705600573 Tone WheelTone Wheel
-
37207551034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
38710001035 ProtectorProtector
-
39250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
40710001165 Ground HarnessGround Harness
-
41250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
42207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
43293900054 BushingBushing
-
44233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
45293720084 GrommetGrommet
-
46710001346 Passenger Detection SwitchPassenger Detection Switch
-
47250000261 Torx Screw M6 X 16Torx Screw M6 X 16
