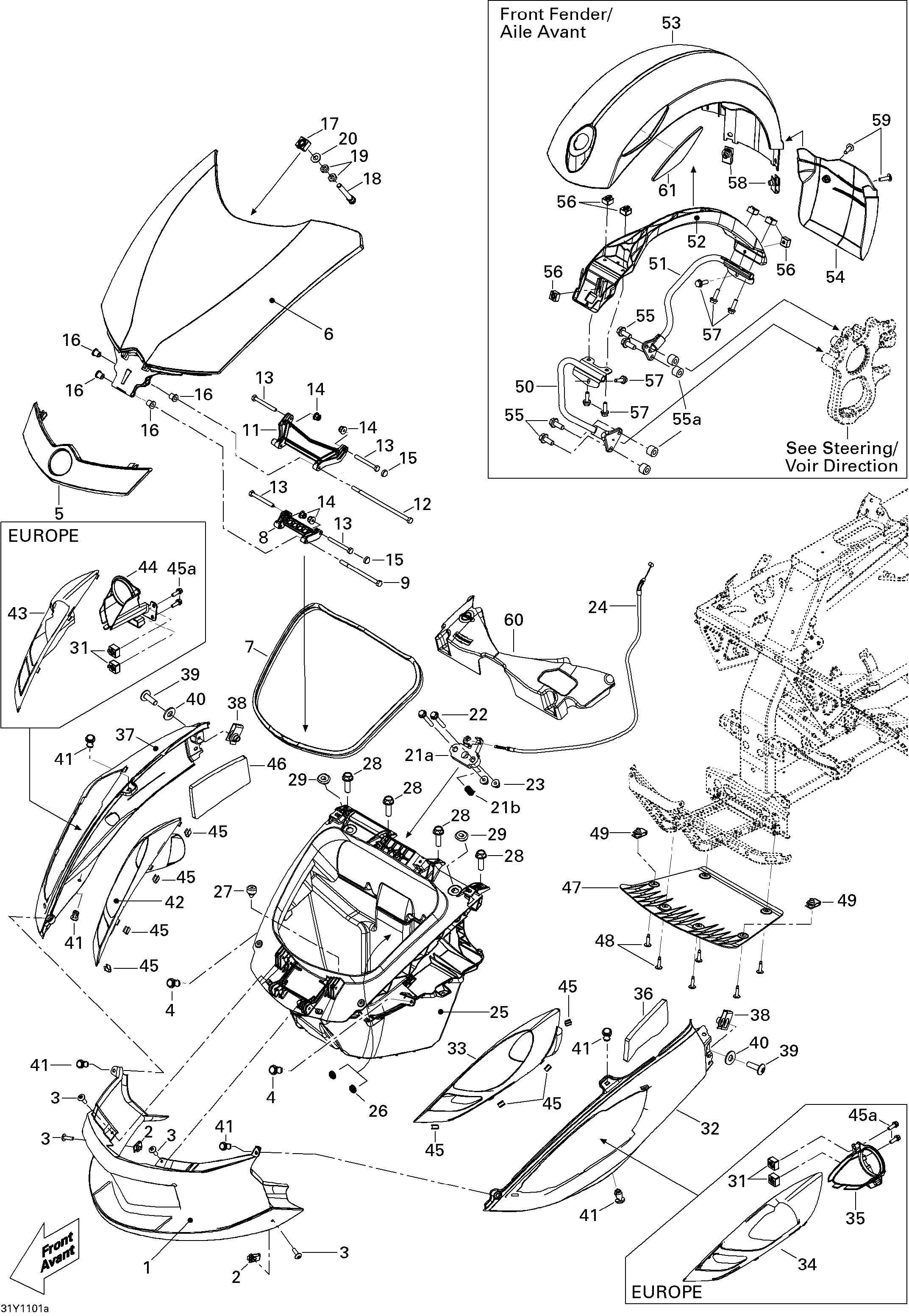

09- Body And Accessories Front SM5 для BRP Spyder RS Roadster SM5 - 2011

  • №
    Артикул
    Название
  • 1
    705001391 Bumper Cover. RS
    Bumper Cover. RS
  • 1
    705004568 Bumper Cover, Magnesium Color. RS-S Magnesium-Black Model
    Bumper Cover, Magnesium Color. RS-S Magnesium-Black Model
  • 1
    705004569 Bumper Cover, Alloy Orange. RS-S Alloy Orange-Black Model
    Bumper Cover, Alloy Orange. RS-S Alloy Orange-Black Model
  • 2
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 3
    250000446 Torx Screw Scotch Grip, M6 X 20
    Torx Screw Scotch Grip, M6 X 20
  • 4
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 5
    705004571 Front Fascia, Metallic Magnesium. RS Magnesium-Black Model
    Front Fascia, Metallic Magnesium. RS Magnesium-Black Model
  • 5
    705004572 Front Fascia, Steel Black. RS-S Magnesium-Black Model
    Front Fascia, Steel Black. RS-S Magnesium-Black Model
  • 5
    705004573 Front Fascia, Flat Black. RS-S Alloy Orange-Black Model
    Front Fascia, Flat Black. RS-S Alloy Orange-Black Model
  • 6
    705004574 Hood, Metallic Magnesium. RS Magnesium-Black Model
    Hood, Metallic Magnesium. RS Magnesium-Black Model
  • 6
    705004575 Hood, Steel Black. RS-S Magnesium-Black Model
    Hood, Steel Black. RS-S Magnesium-Black Model
  • 6
    705004583 Hood, Metallic Black. RS-S Alloy Orange-Black Model
    Hood, Metallic Black. RS-S Alloy Orange-Black Model
  • 7
    293250240 Neoprene seal
    Neoprene seal
  • 8
    269501482 Front Arm
    Front Arm
  • 9
    230060060 Hex. Screw M6 X 100
    Hex. Screw M6 X 100
  • 11
    269501481 Rear Arm
    Rear Arm
  • 12
    230065060 Hex. Screw M6 X 150
    Hex. Screw M6 X 150
  • 13
    207065544 Hex. Screw M6 X 55
    Hex. Screw M6 X 55
  • 14
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 15
    414436900 Snap Cap, Black
    Snap Cap, Black
  • 16
    269500706 Sleeve
    Sleeve
  • 17
    269501387 Nut Housing Ass'y
    Nut Housing Ass'y
  • 18
    705002223 Lug
    Lug
  • 19
    232180600 Nut M8
    Nut M8
  • 20
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 21a
    705002224 Latch
    Latch
  • 21b
    705003911 Spring
    Spring
  • 22
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 23
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 24
    517303484 Hood Cable
    Hood Cable
  • 25
    705004816 Front Storage Compartment
    Front Storage Compartment
  • 26
    293740028 Dual Lock Washer 3/4''
    Dual Lock Washer 3/4''
  • 27
    293830005 Rubber Plug
    Rubber Plug
  • 28
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 29
    705005156 Oblong Washer
    Oblong Washer
  • 31
    269501387 Nut Housing Ass'y. Europe
    Nut Housing Ass'y. Europe
  • 32
    705004596 LH Front Panel, Metallic Magnesium. Magnesium-Black Model
    LH Front Panel, Metallic Magnesium. Magnesium-Black Model
  • 32
    705004600 LH Front Panel, Alloy Orange. RS-S Alloy Orange-Black Model
    LH Front Panel, Alloy Orange. RS-S Alloy Orange-Black Model
  • 33
    705001541 LH Air Duct. North America
    LH Air Duct. North America
  • 34
    705001469 LH Headlamp Bezel. Europe
    LH Headlamp Bezel. Europe
  • 35
    705004796 Headlamp Support, Black. Europe
    Headlamp Support, Black. Europe
  • 36
    518325515 LH Front Panel Foam
    LH Front Panel Foam
  • 37
    705004597 RH Front Panel, Metallic Magnesium. Magnesium-Black Model
    RH Front Panel, Metallic Magnesium. Magnesium-Black Model
  • 37
    705004601 RH Front Panel, Alloy Orange. RS-S Alloy Orange-Black Model
    RH Front Panel, Alloy Orange. RS-S Alloy Orange-Black Model
  • 38
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 39
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 40
    705003207 Plastic Washer
    Plastic Washer
  • 41
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 42
    705001543 RH Air Duct. North America
    RH Air Duct. North America
  • 43
    705001470 RH Headlamp Bezel. Europe
    RH Headlamp Bezel. Europe
  • 44
    705004797 RH Headlamp Support, Black. Europe
    RH Headlamp Support, Black. Europe
  • 45
    414479100 Clip
    Clip
  • 45a
    207682544 Hex. Flanged Screw M8 X 25. Europe
    Hex. Flanged Screw M8 X 25. Europe
  • 46
    518325516 RH Front Panel Foam
    RH Front Panel Foam
  • 47
    705002837 Skid Plate
    Skid Plate
  • 48
    250000081 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 49
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 50
    705003456 LH Fender Front Support
    LH Fender Front Support
  • 50
    705003457 RH Fender Front Support
    RH Fender Front Support
  • 51
    705003462 LH Fender Rear Support
    LH Fender Rear Support
  • 51
    705003463 RH Fender Rear Support
    RH Fender Rear Support
  • 52
    705002389 Central Front Fender Support
    Central Front Fender Support
  • 53
    705004613 LH Front Fender, Metallic Magnesium. RS Magnesium-Black Model
    LH Front Fender, Metallic Magnesium. RS Magnesium-Black Model
  • 53
    705004615 LH Front Fender, Steel Black. RS-S Magnesium-Black Model
    LH Front Fender, Steel Black. RS-S Magnesium-Black Model
  • 53
    705004617 LH Front Fender, Matte Black. RS-S Alloy Orange-Black Model
    LH Front Fender, Matte Black. RS-S Alloy Orange-Black Model
  • 53
    705004614 RH Front Fender, Metallic Magnesium. RS Magnesium-Black Model
    RH Front Fender, Metallic Magnesium. RS Magnesium-Black Model
  • 53
    705004616 RH Front Fender, Steel Black. RS-S Magnesium-Black Model
    RH Front Fender, Steel Black. RS-S Magnesium-Black Model
  • 53
    705004618 RH Front Fender, Matte Black. RS-S Alloy Orange-Black Model
    RH Front Fender, Matte Black. RS-S Alloy Orange-Black Model
  • 54
    705001767 LH Mudguard
    LH Mudguard
  • 54
    705001768 RH Mudguard
    RH Mudguard
  • 55
    207583534 Hex. Flanged Screw, S.Grip, M8 X 35
    Hex. Flanged Screw, S.Grip, M8 X 35
  • 55a
    705600837 Bushing
    Bushing
  • 56
    269500725 Nut Housing Ass'y
    Nut Housing Ass'y
  • 57
    207662084 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 58
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 59
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 60
    705003025 Service Center
    Service Center
  • 61
    705002423 Amber Lateral Reflector
    Amber Lateral Reflector
