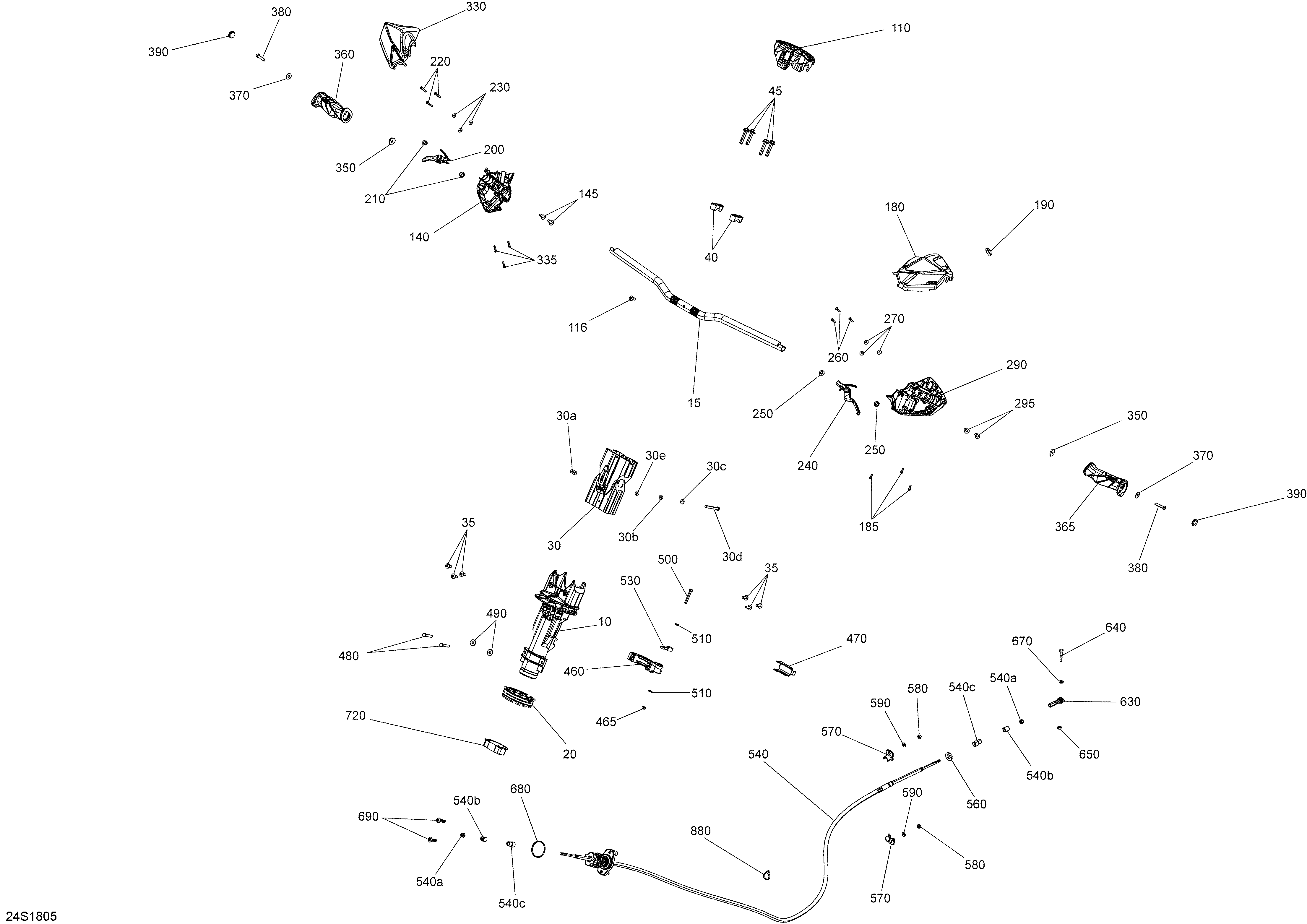

07- Steering Spark - Trixx для BRP SPARK - 2017
-
№АртикулНазвание
-
10277001998 Steering ColumnSteering Column
-
15277002016 HandlebarHandlebar
-
20277001874 Wear RingWear Ring
-
30277002093 Adjustable Riser Block. Includes 30 to 30bAdjustable Riser Block. Includes 30 to 30b
-
30a506153045 Compression BlocCompression Bloc
-
30b506152820 SpringSpring
-
35250000922 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
40506152751 Steering SupportSteering Support
-
45250000834 Screw-Hex.Flange DIN.6921 S.GripScrew-Hex.Flange DIN.6921 S.Grip
-
110277002005 Steering Pad, Deep BlackSteering Pad, Deep Black
-
140277002007 Lower Housing RHLower Housing RH
-
145250000922 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
180277002003 LH CoverLH Cover
-
185241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
190277001887 Red Knob SwitchRed Knob Switch
-
200277001944 Throttle HandleThrottle Handle
-
210293900091 BushingBushing
-
220241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
230234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
240277001945 Reverse HandleReverse Handle
-
250293900091 BushingBushing
-
260241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
270234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
275241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
276234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
290277002006 Lower Housing LHLower Housing LH
-
295250000922 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
330277002004 RH CoverRH Cover
-
335241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
350277001863 Insert Grip HandleInsert Grip Handle
-
360277002014 Handle Grip RHHandle Grip RH
-
365277002015 Handle Grip LHHandle Grip LH
-
390277000203 Black CapBlack Cap
-
460277002019 Support Ass'ySupport Ass'y
-
465232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
470277001654 SpacerSpacer
-
480207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
510234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
530277001180 Ball JointBall Joint
-
540277002065 Steering Cable. Includes 540 to 540cSteering Cable. Includes 540 to 540c
-
540a211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
540b277001582 Small BootSmall Boot
-
540c277001583 Large BootLarge Boot
-
560293830063 Rubber WasherRubber Washer
-
570277001856 Ring HalvesRing Halves
-
580232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
590234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
630277000775 Ball JointBall Joint
-
640207663560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
650232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
670234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680293300176 O-RingO-Ring
-
690250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
720277001741 Wear RingWear Ring
-
880414115200 Tie-Rap 180 mmTie-Rap 180 mm
