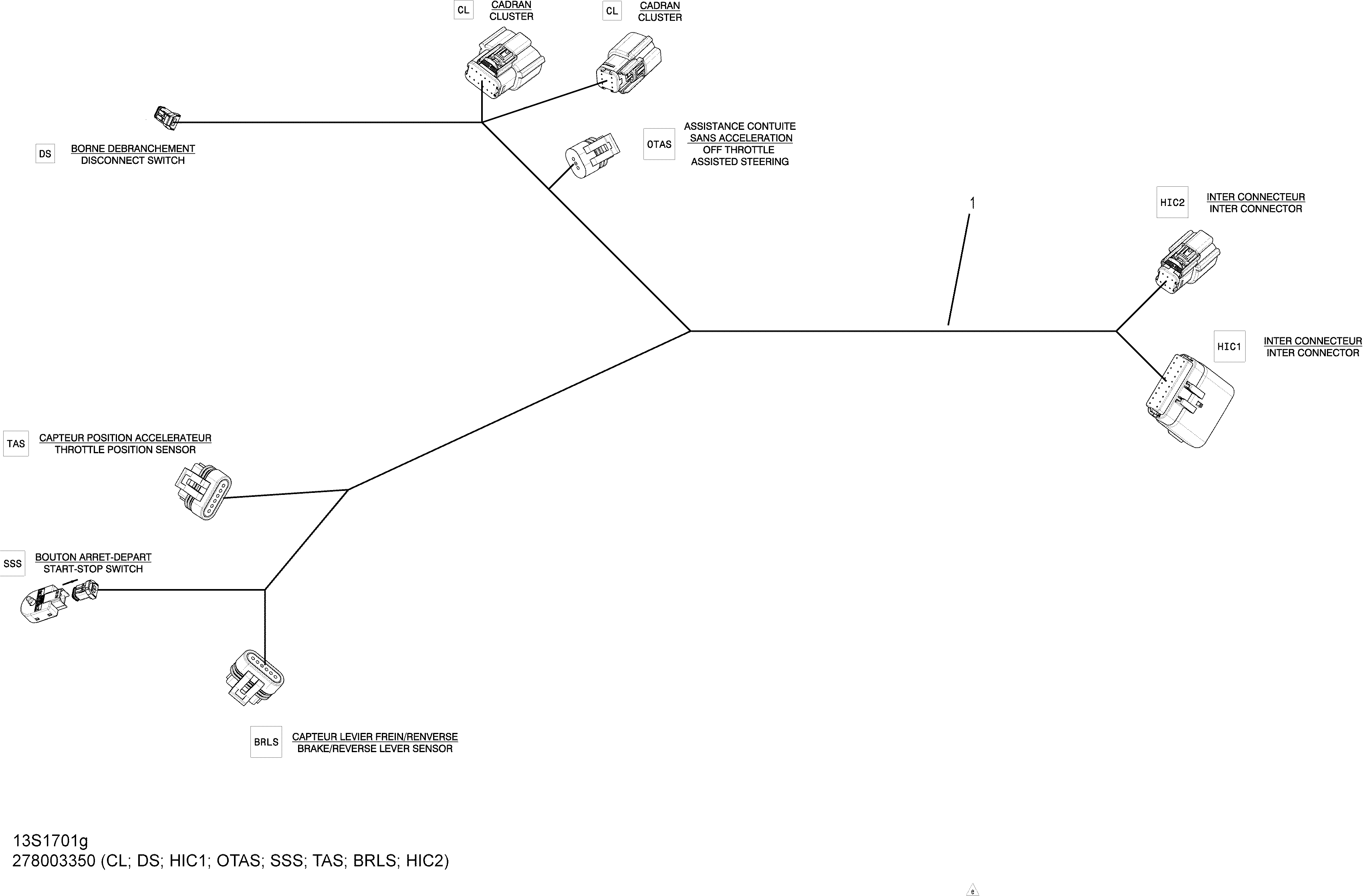

10- Electrical Harness - Steering, Package Base with iBR для BRP SPARK - 2017
-
№АртикулНазвание
-
1278003350 Steering Harness Ass'ySteering Harness Ass'y
-
BRLS278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
BRLS710001119 Female TerminalFemale Terminal
-
CL278002994 Housing, 12 CircuitsHousing, 12 Circuits
-
CL278002457 Seal PlugSeal Plug
-
CL278002453 Female TerminalFemale Terminal
-
DS278002856 Housing JAE, 2 CircuitsHousing JAE, 2 Circuits
-
DS278002857 Female TerminalFemale Terminal
-
HIC1278002852 Housing, 20 CircuitsHousing, 20 Circuits
-
HIC1278002457 Seal PlugSeal Plug
-
HIC1278002454 Male TerminalMale Terminal
-
HIC2278002894 Housing, 6 CircuitsHousing, 6 Circuits
-
HIC2278002453 Female TerminalFemale Terminal
-
OTAS278002064 Connector, 3 CircuitsConnector, 3 Circuits
-
OTAS710001119 Female TerminalFemale Terminal
-
SSS278002856 Housing JAE, 2 CircuitsHousing JAE, 2 Circuits
-
SSS278002676 Switch Start/StopSwitch Start/Stop
-
SSS278002857 Female TerminalFemale Terminal
-
TAS278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
TAS710001119 Female TerminalFemale Terminal
