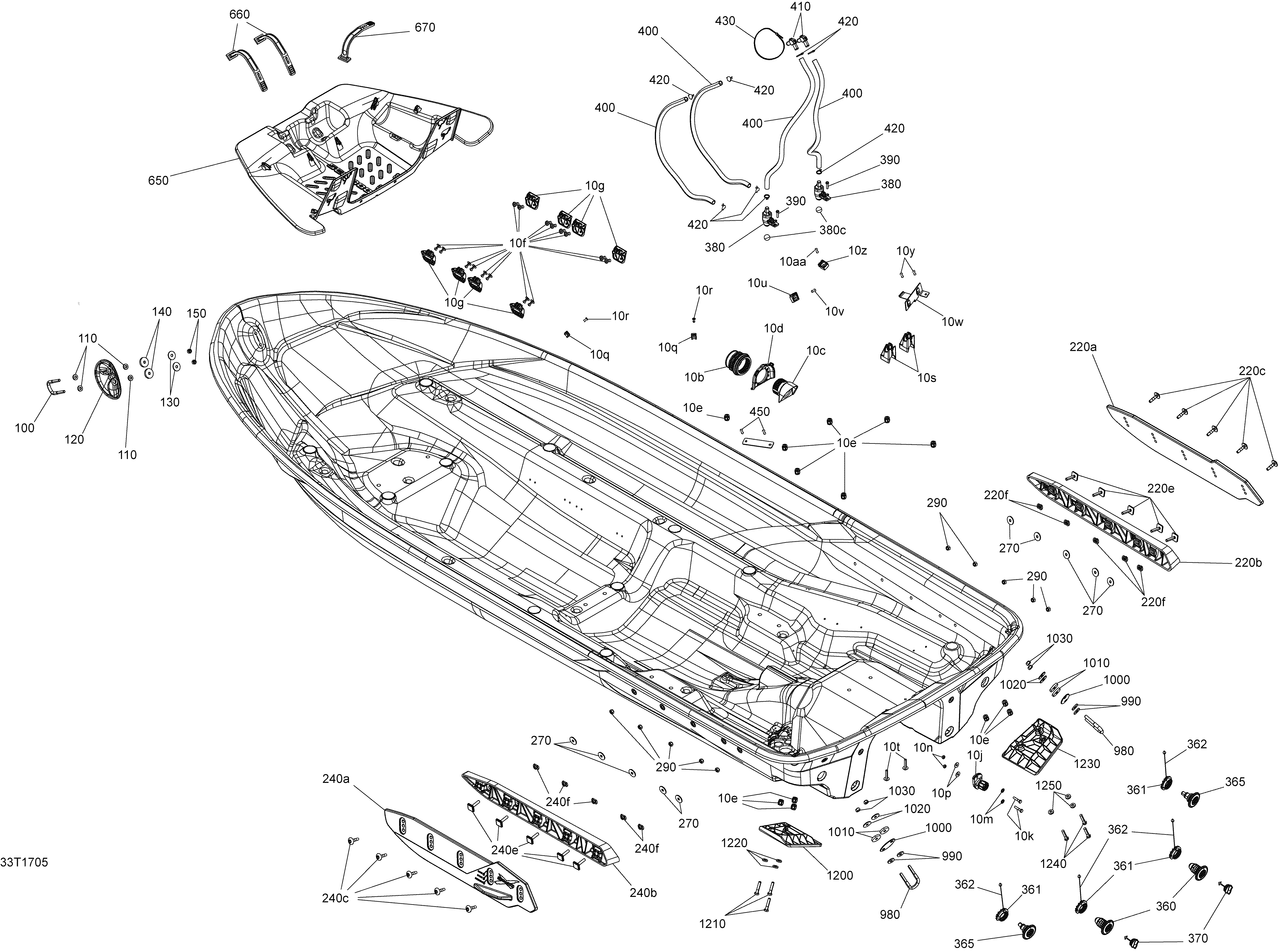

09- Hull - All Models для BRP RXP - 2017
-
№АртикулНазвание
-
10b293450340 Hull InsertHull Insert
-
10c293450335 Hull InsertHull Insert
-
10d293450356 Hull InsertHull Insert
-
10f293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
10g270000933 Strap RetainingStrap Retaining
-
10j277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
10k207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
10m250200114 Sealing WasherSealing Washer
-
10n232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
10p234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10q293750026 Tie Rap MountTie Rap Mount
-
10r293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
10s270000988 Strap AnchorStrap Anchor
-
10t250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
10u270000854 Strap AnchorStrap Anchor
-
10v293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
10w270000977 Strap AnchorStrap Anchor
-
10y293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
10z270000854 Strap AnchorStrap Anchor
-
10aa293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
100292000933 U-ClampU-Clamp
-
110293050001 Flat WasherFlat Washer
-
120292001837 Black ShellBlack Shell
-
130250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
140293830037 Rubber WasherRubber Washer
-
150232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
220a292001871 RH SponsonRH Sponson
-
220b292001873 RH Spacer SponsonRH Spacer Sponson
-
220c250000572 Torx-Head Screw M8 X 35Torx-Head Screw M8 X 35
-
220e292001471 Square Head StudSquare Head Stud
-
220f292001503 Push NutPush Nut
-
240a292001872 Sponson LHSponson LH
-
240b292001874 Spacer Sponson LHSpacer Sponson LH
-
240c250000572 Torx-Head Screw M8 X 35Torx-Head Screw M8 X 35
-
240e292001471 Square Head StudSquare Head Stud
-
240f292001503 Push NutPush Nut
-
270250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
290232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
360292001580 Drain Ass'yDrain Ass'y
-
361292001825 Plastic NutPlastic Nut
-
365292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
370292001583 Plug Ass'yPlug Ass'y
-
380>380c292001636 Bailer Pick-up Ass'y. Includes 380 to 380cBailer Pick-up Ass'y. Includes 380 to 380c
-
380c293830080 Floating BallFloating Ball
-
390211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
400275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
410293710152 Fitting Elbow 90°Fitting Elbow 90°
-
420293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
430293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
450293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
650292001868 Trunk ShieldTrunk Shield
-
660269500408 StrapStrap
-
670269500408 StrapStrap
-
980292000933 U-ClampU-Clamp
-
990279000164 Flat WasherFlat Washer
-
1000291001386 Black Finition PlateBlack Finition Plate
-
1010293830037 Rubber WasherRubber Washer
-
1020250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1030232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1200292001430 Trim Tab LHTrim Tab LH
-
1210207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
1220293050001 Flat WasherFlat Washer
-
1230292001431 TrimTab RHTrimTab RH
-
1240207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
1250293050001 Flat WasherFlat Washer
