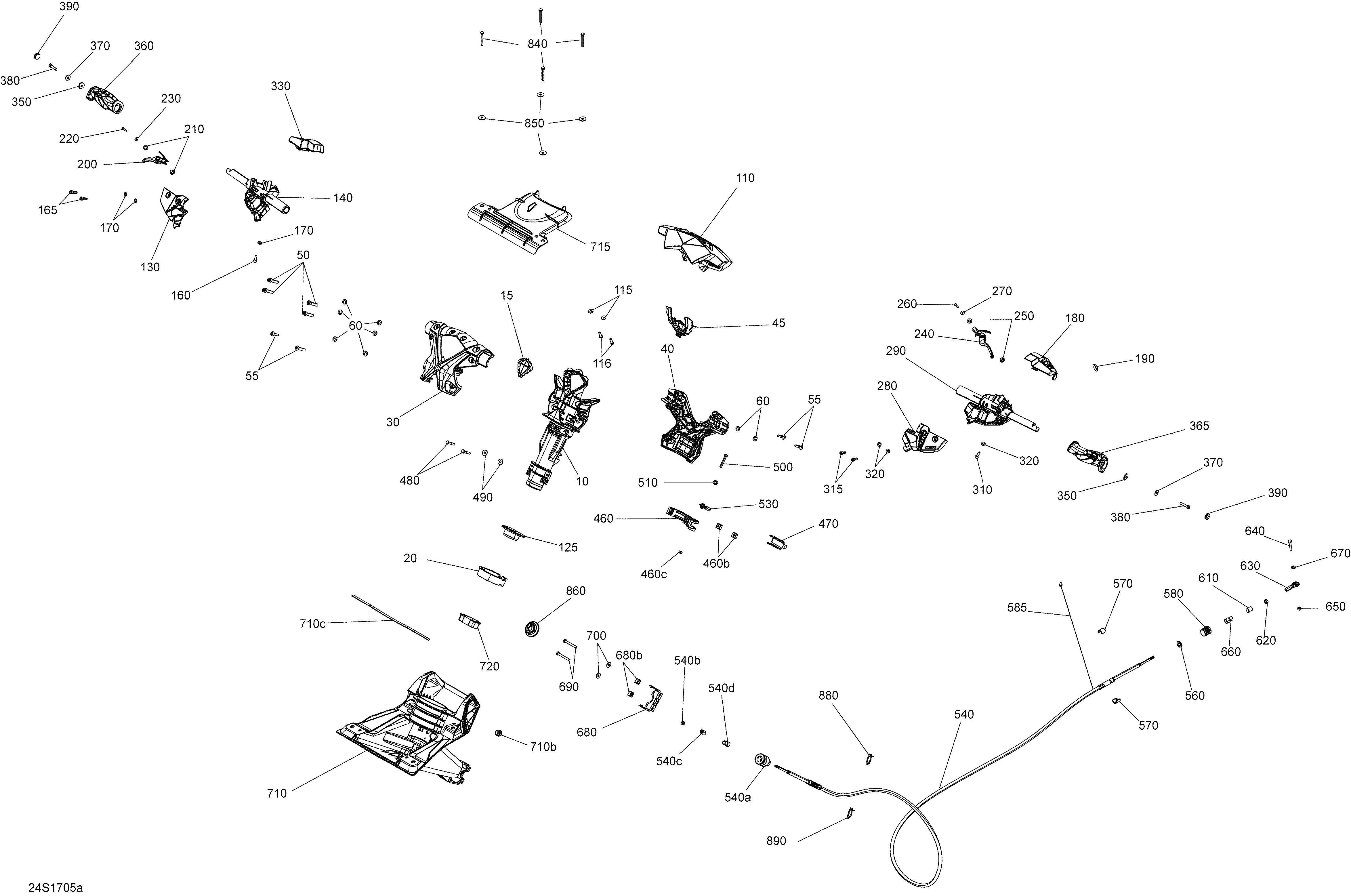

07- Steering - All Models для BRP RXP - 2017

  • №
    Артикул
    Название
  • 10
    277001685 Steering Column
    Steering Column
  • 15
    277001919 Aesthetic Cap
    Aesthetic Cap
  • 20
    277001653 Wear Ring
    Wear Ring
  • 30
    277001909 Front Extension Bloc
    Front Extension Bloc
  • 40
    277001926 Rear Extension Block
    Rear Extension Block
  • 45
    277001920 Radio Frequency Key Support
    Radio Frequency Key Support
  • 50
    205084060 Socket Head Screw M8 X 40
    Socket Head Screw M8 X 40
  • 55
    250000845 Torx-Button M/S M8 X 40 Stlss S.Gri
    Torx-Button M/S M8 X 40 Stlss S.Gri
  • 60
    234080600 Flat Washer M8, Stainless
    Flat Washer M8, Stainless
  • 110
    277001683 Handle Pad
    Handle Pad
  • 115
    234052600 Flat Washer 5 mm, Stainless
    Flat Washer 5 mm, Stainless
  • 116
    211000023 Hex. Screw 10-14 X 7/8''
    Hex. Screw 10-14 X 7/8''
  • 125
    293720086 Grommet
    Grommet
  • 130
    277001688 Upper Housing RH
    Upper Housing RH
  • 140
    277001966 Lower Housing RH
    Lower Housing RH
  • 160
    205061660 Socket Screw M6 X 16
    Socket Screw M6 X 16
  • 165
    205562060 Socket Head Screw M6 X 20, Scotch Grip
    Socket Head Screw M6 X 20, Scotch Grip
  • 170
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 180
    277001794 Housing Cover LH
    Housing Cover LH
  • 190
    277001887 Red Knob Switch
    Red Knob Switch
  • 200
    277001944 Throttle Handle
    Throttle Handle
  • 210
    293900091 Bushing
    Bushing
  • 220
    241142560 Hex. Flanged Screw K40 X 25
    Hex. Flanged Screw K40 X 25
  • 230
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 240
    277001945 Reverse Handle
    Reverse Handle
  • 250
    293900091 Bushing
    Bushing
  • 260
    241142560 Hex. Flanged Screw K40 X 25
    Hex. Flanged Screw K40 X 25
  • 270
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 280
    277001686 Upper Housing LH
    Upper Housing LH
  • 290
    277001965 Lower Housing LH
    Lower Housing LH
  • 310
    205061660 Socket Screw M6 X 16
    Socket Screw M6 X 16
  • 315
    205562060 Socket Head Screw M6 X 20, Scotch Grip
    Socket Head Screw M6 X 20, Scotch Grip
  • 320
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 330
    277001718 RH Housing Cover
    RH Housing Cover
  • 350
    277001863 Insert Grip Handle
    Insert Grip Handle
  • 360
    277001946 Handle Grip RH
    Handle Grip RH
  • 365
    277001958 Handle Grip LH
    Handle Grip LH
  • 370
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 380
    250000002 Hex. Screw M6 X 30, Scotch Grip
    Hex. Screw M6 X 30, Scotch Grip
  • 390
    277000203 Black Cap
    Black Cap
  • 460>460c
    277001872 Steering Arm Support Ass'y. Includes 460 to 460c
    Steering Arm Support Ass'y. Includes 460 to 460c
  • 460b
    269501166 Nut Housing Ass'y
    Nut Housing Ass'y
  • 460c
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 470
    277001654 Spacer
    Spacer
  • 480
    207163560 Hex. Screw M6 X 35
    Hex. Screw M6 X 35
  • 490
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 500
    207064060 Hex. Screw M6 X 40
    Hex. Screw M6 X 40
  • 510
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 530
    277000775 Ball Joint
    Ball Joint
  • 540>540d
    277001578 Steering Cable Ass'y. Includes 540 to 540d
    Steering Cable Ass'y. Includes 540 to 540d
  • 540a
    277000782 Ajustment Knob
    Ajustment Knob
  • 540b
    211100056 Hex. Nut 1/4''-28
    Hex. Nut 1/4''-28
  • 540c
    277001582 Small Boot
    Small Boot
  • 540d
    277001583 Large Boot
    Large Boot
  • 560
    293830063 Rubber Washer
    Rubber Washer
  • 570
    277001527 Half Ring
    Half Ring
  • 580
    277001729 Steering Cable Lock
    Steering Cable Lock
  • 585
    293800013 Loctite, Pipe Sealant, 250 ml
    Loctite, Pipe Sealant, 250 ml
  • 610
    277001582 Small Boot
    Small Boot
  • 620
    211100056 Hex. Nut 1/4''-28
    Hex. Nut 1/4''-28
  • 630
    277000775 Ball Joint
    Ball Joint
  • 640
    207063560 Hex. Screw M6 X 35
    Hex. Screw M6 X 35
  • 650
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 660
    277001583 Large Boot
    Large Boot
  • 670
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 680>680b
    277001655 Thrust Support Ass'y. Includes 680 to 680b
    Thrust Support Ass'y. Includes 680 to 680b
  • 680b
    269501166 Nut Housing Ass'y
    Nut Housing Ass'y
  • 690
    207165060 Hex. Screw M6 X 50
    Hex. Screw M6 X 50
  • 700
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 710>710c
    277001913 Steering Support Ass'y. Includes 710 to 710c
    Steering Support Ass'y. Includes 710 to 710c
  • 710b
    517302716 Cap
    Cap
  • 710c
    293250008 Gasket
    Gasket
  • 715
    293000117 Deflector
    Deflector
  • 720
    277001741 Wear Ring
    Wear Ring
  • 840
    245064560 Hex Cap Screw M6X1.0X45 S.Grip
    Hex Cap Screw M6X1.0X45 S.Grip
  • 850
    250200022 Flat Washer M6.6 X 22
    Flat Washer M6.6 X 22
  • 860
    293720090 Cable Grommet
    Cable Grommet
  • 880
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 890
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
