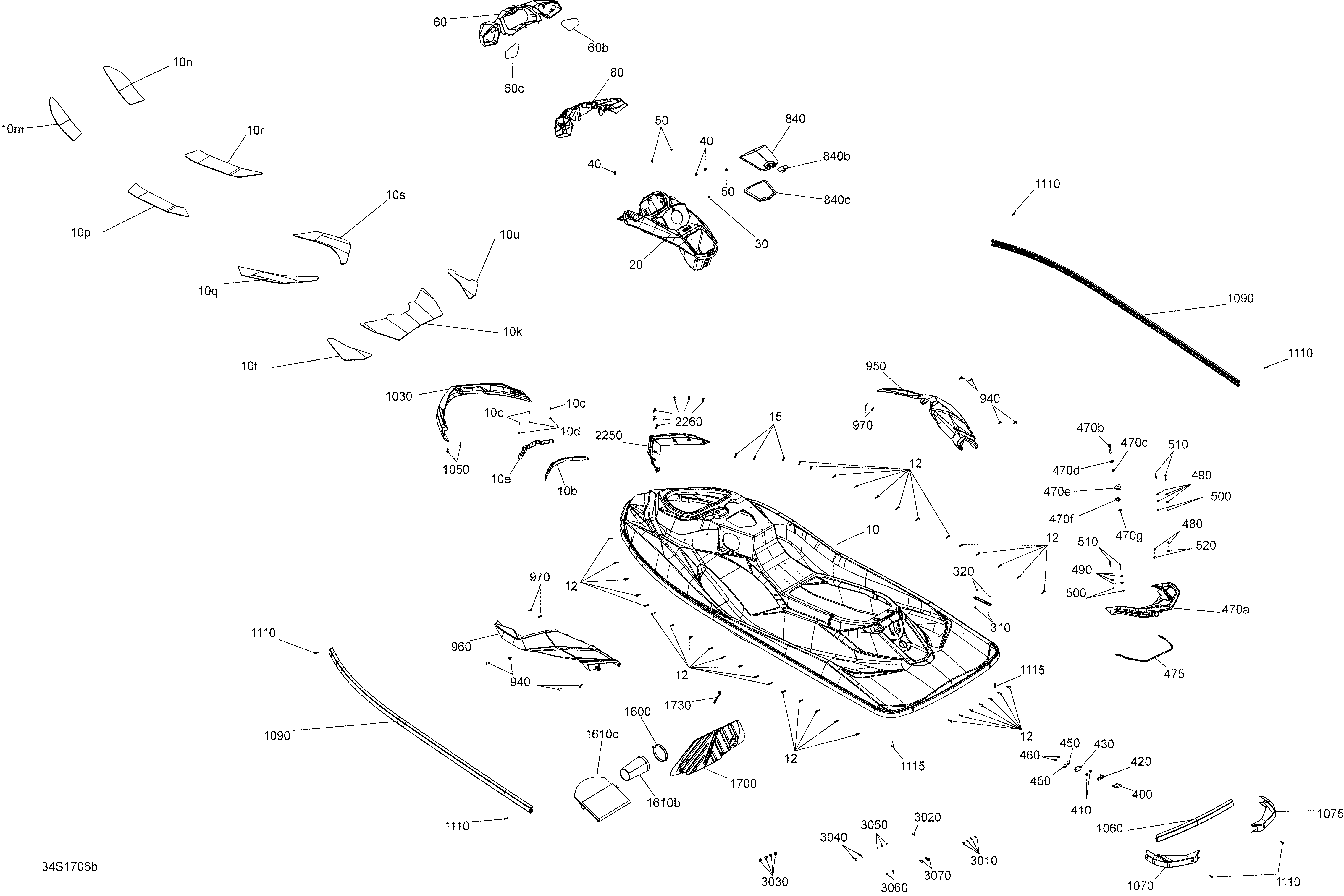

09- Body - Except GTR-X для BRP GTI-GTR-GTS - 2017
-
№АртикулНазвание
-
10b291003897 Deck Nose. Model without Engine 900HO ACEDeck Nose. Model without Engine 900HO ACE
-
10c241142560 Hex. Flanged Screw K40 X 25. Model without Engine 900HO ACEHex. Flanged Screw K40 X 25. Model without Engine 900HO ACE
-
10d234042600 Flat Washer 4 mm, Stainless. Model without Engine 900HO ACEFlat Washer 4 mm, Stainless. Model without Engine 900HO ACE
-
10e291003704 Bumper Support. Model without Engine 900HO ACEBumper Support. Model without Engine 900HO ACE
-
10k291003057 Swim Platform Carpet. Model GTI, GTI 155, GTSSwim Platform Carpet. Model GTI, GTI 155, GTS
-
10k291003096 Swim Platform Carpet. Model GTI SE, GTI SE 130, GTI SE 155, GTI LTD 155, GTRSwim Platform Carpet. Model GTI SE, GTI SE 130, GTI SE 155, GTI LTD 155, GTR
-
10m291003058 Front Carpet LH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTSFront Carpet LH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTS
-
10m291003573 Front Carpet LH. Model GTR, GTI LTD 155Front Carpet LH. Model GTR, GTI LTD 155
-
10n291003059 Front Carpet RH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTSFront Carpet RH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTS
-
10n291003574 Front Carpet RH. Model GTR, GTI LTD 155Front Carpet RH. Model GTR, GTI LTD 155
-
10p291003060 Front Center Carpet LH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTSFront Center Carpet LH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTS
-
10p291003575 Front Center Carpet LH. Model GTR, GTI LTD 155Front Center Carpet LH. Model GTR, GTI LTD 155
-
10q291003329 Rear Center Carpet LH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTSRear Center Carpet LH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTS
-
10q291003577 Rear Center Carpet LH. Model GTR, GTI LTD 155Rear Center Carpet LH. Model GTR, GTI LTD 155
-
10r291003061 Front Center Carpet RH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTSFront Center Carpet RH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTS
-
10r291003576 Front Center Carpet RH. Model GTR, GTI LTD 155Front Center Carpet RH. Model GTR, GTI LTD 155
-
10s291003330 Rear Center Carpet RH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTSRear Center Carpet RH. Model GTI, GTI 155, GTI SE, GTI SE 130, GTI SE 155, GTS
-
10s291003578 Rear Center Carpet RH. Model GTR, GTI LTD 155Rear Center Carpet RH. Model GTR, GTI LTD 155
-
10t291003062 Rear Carpet LHRear Carpet LH
-
10u291003063 Rear Carpet RHRear Carpet RH
-
12250000879 Screw-Plastite Torx M6.81X30. Model with Engine 900HO ACEScrew-Plastite Torx M6.81X30. Model with Engine 900HO ACE
-
15250000879 Screw-Plastite Torx M6.81X30. Model with Engine 900HO ACEScrew-Plastite Torx M6.81X30. Model with Engine 900HO ACE
-
20291004276 ConsoleConsole
-
30293830005 Rubber BumperRubber Bumper
-
40293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
50293150186 Pop Rivet 3/16Pop Rivet 3/16
-
60>60c291004261 Black Bezel Ass'y. Includes 60 to 60cBlack Bezel Ass'y. Includes 60 to 60c
-
60>60c291004265 White Bezel Ass'y. Includes 60 to 60cWhite Bezel Ass'y. Includes 60 to 60c
-
60>60c291004488 Gulfstream Blue Bezel Ass'y. Includes 60 to 60cGulfstream Blue Bezel Ass'y. Includes 60 to 60c
-
60>60c291004489 Mango Orange Bezel Ass'y. Includes 60 to 60cMango Orange Bezel Ass'y. Includes 60 to 60c
-
60b291003090 Mirror RHMirror RH
-
60c291003091 Mirror LHMirror LH
-
80291004271 Mirror SupportMirror Support
-
310293150016 Rivet 1/8''Rivet 1/8''
-
320293000014 Black Snap CapBlack Snap Cap
-
400292000933 U-ClampU-Clamp
-
410293050001 Flat WasherFlat Washer
-
420291002351 Hook. Model GTI LTD 155Hook. Model GTI LTD 155
-
430291001386 Black Finition PlateBlack Finition Plate
-
450234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
460232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
470a291004625 Black Rear HandleBlack Rear Handle
-
470a291004626 White Rear HandleWhite Rear Handle
-
470b291003877 Stud SeatStud Seat
-
470c232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
470d234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
470e269002125 Seat Stud SpacerSeat Stud Spacer
-
470f269002126 Seat Stud SupportSeat Stud Support
-
470g232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
475293250218 GasketGasket
-
480207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
510207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
520250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
850>840c269502140 Glove Door Ass'yGlove Door Ass'y
-
840b264000091 Latch, BlackLatch, Black
-
840c293250236 GasketGasket
-
940293730006 Black DartBlack Dart
-
950269502167 Deep Pewter RH Cosmetic Panel. Model GTI LTD 155Deep Pewter RH Cosmetic Panel. Model GTI LTD 155
-
950269502189 Manta Green RH Cosmetic Panel. Model GTI, GTI 155Manta Green RH Cosmetic Panel. Model GTI, GTI 155
-
950269502284 Blue RH Cosmetic Panel. Model GTRBlue RH Cosmetic Panel. Model GTR
-
950269502191 White RH Cosmetic Panel. Model GTS, GTI SE, GTI SE 130, GTI SE 155White RH Cosmetic Panel. Model GTS, GTI SE, GTI SE 130, GTI SE 155
-
960269502168 Deep Pewter LH Cosmetic Panel. Model GTI LTD 155Deep Pewter LH Cosmetic Panel. Model GTI LTD 155
-
960269502190 Manta Green LH Cosmetic Panel. Model GTI, GTI 155Manta Green LH Cosmetic Panel. Model GTI, GTI 155
-
960269502285 Blue LH Cosmetic Panel. Model GTRBlue LH Cosmetic Panel. Model GTR
-
960269502192 White LH Cosmetic Panel. Model GTS, GTI SE, GTI SE 130, GTI SE 155White LH Cosmetic Panel. Model GTS, GTI SE, GTI SE 130, GTI SE 155
-
970211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
1030291004277 Front BumperFront Bumper
-
1050250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1060291004451 Side BumperSide Bumper
-
1070291004278 Corner BumperCorner Bumper
-
1075291004279 Corner BumperCorner Bumper
-
1090291004451 Side BumperSide Bumper
-
1110250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
1115250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1600280000598 Cover. Model GTI LTD 155Cover. Model GTI LTD 155
-
1610b295100330 Safety Kit. Model GTI LTD 155Safety Kit. Model GTI LTD 155
-
1610c269001936 Bag. Model GTI LTD 155Bag. Model GTI LTD 155
-
1700291004572 Divider Ass'yDivider Ass'y
-
1730269502111 Holding StrapHolding Strap
-
2250291004273 Body DeflectorBody Deflector
-
2260250000828 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
3010250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
3020250000735 Torx Screw K40 X 16Torx Screw K40 X 16
-
3030293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
3040207153060 Hex. Flanged Screw M5 X 30Hex. Flanged Screw M5 X 30
-
3050211200035 Flat WasherFlat Washer
-
3060232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
3070293150089 Tuflok Plastic RivetTuflok Plastic Rivet
