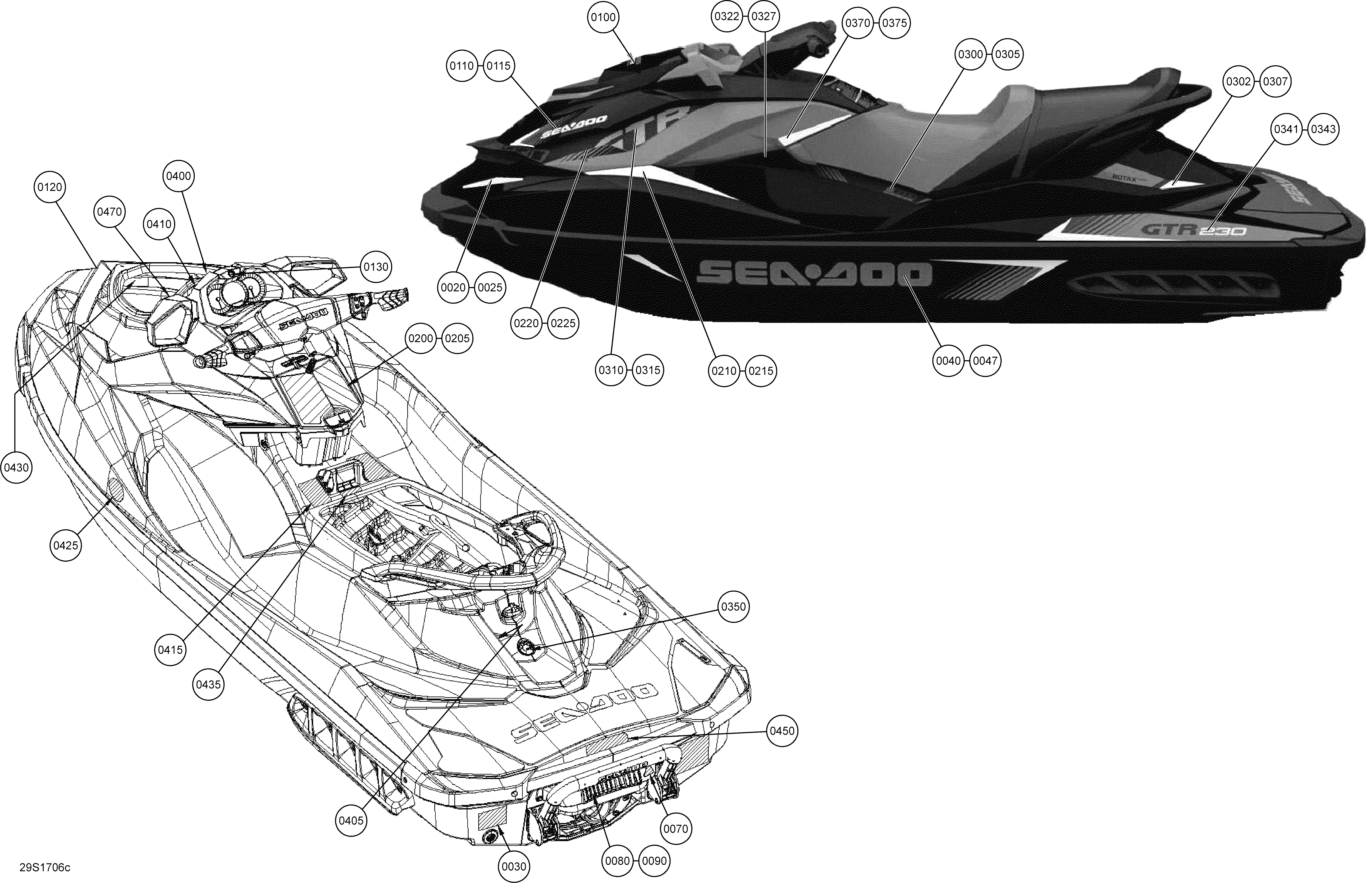

09- Decals - GTR для BRP GTI-GTR-GTS - 2017
-
№АртикулНазвание
-
20219904978 Front Lateral Decal LHFront Lateral Decal LH
-
25219904979 Front Lateral Decal RHFront Lateral Decal RH
-
30219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
40219904930 Sea-Doo Hull Decal LHSea-Doo Hull Decal LH
-
47219904931 Sea-Doo Hull Decal RHSea-Doo Hull Decal RH
-
70219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
80219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
90219904804 Pictogram Foot Gate LabelPictogram Foot Gate Label
-
100219904932 Deflector DecalDeflector Decal
-
110219904941 Sea-Doo Front Decal LHSea-Doo Front Decal LH
-
115219904942 Sea-Doo Front Decal RHSea-Doo Front Decal RH
-
120516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
130516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
200219904484 Warning LabelWarning Label
-
205219903448 RH Warning Decal, SecurityRH Warning Decal, Security
-
210219904966 Front Lateral Decal LHFront Lateral Decal LH
-
215219904967 Front Lateral Decal RHFront Lateral Decal RH
-
220219904968 Cover Decal LHCover Decal LH
-
225219904969 Cover Decal RHCover Decal RH
-
300219904980 iBR Decal LHiBR Decal LH
-
302219904935 Rear Decal LHRear Decal LH
-
305219904981 iBR Decal RHiBR Decal RH
-
307219904936 Rear Decal RHRear Decal RH
-
310219904937 Front Side Decal LHFront Side Decal LH
-
315219904938 Front Side Decal RHFront Side Decal RH
-
322219903416 Center Decal LHCenter Decal LH
-
327219903417 Center Decal RHCenter Decal RH
-
341219904939 Rear Decal Lateral LHRear Decal Lateral LH
-
343219904940 Rear Decal Lateral RHRear Decal Lateral RH
-
350516006887 BRP Logo, 48 mmBRP Logo, 48 mm
-
370219904989 Center Decal RHCenter Decal RH
-
375219904990 Center Decal LHCenter Decal LH
-
400219903082 Warning Decal, BatteryWarning Decal, Battery
-
405219904272 Decal, ExemptionDecal, Exemption
-
410219903501 Warning Decal, FuelWarning Decal, Fuel
-
415219904829 Engine Oil LabelEngine Oil Label
-
425219902679 Decal, Emission ControlDecal, Emission Control
-
430219903502 Warning Decal, StorageWarning Decal, Storage
-
435219903132 Caution Decal, SecurityCaution Decal, Security
-
450219904576 Decal Warning, Re-BoardDecal Warning, Re-Board
-
470219903127 Notice Decal, Gasoline-OctaneNotice Decal, Gasoline-Octane
