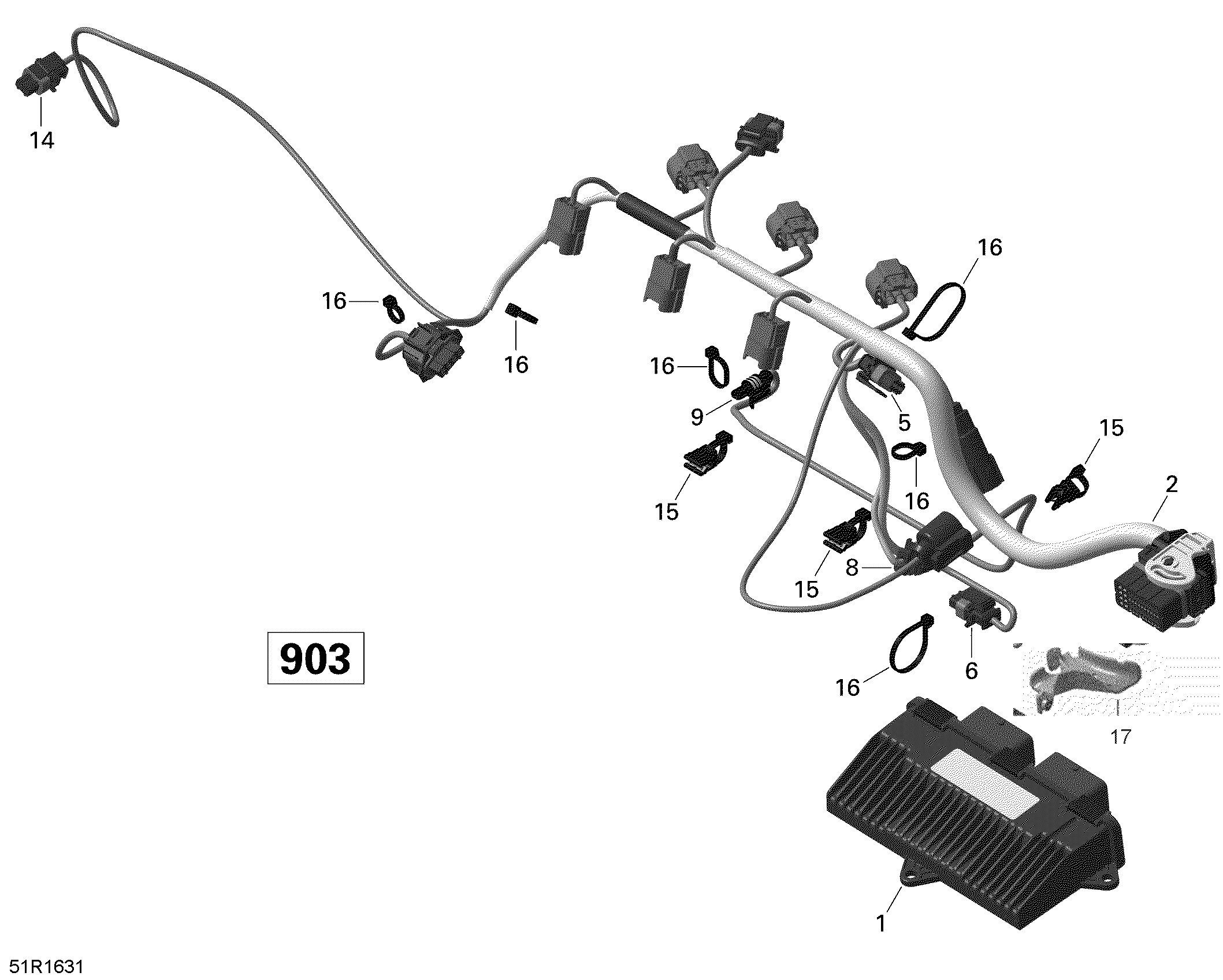

10- Engine Harness and Electronic Module - 900 ACE для BRP SPARK - 2016
-
№АртикулНазвание
-
1420666268 ECM Connector. Engine ACE 900ECM Connector. Engine ACE 900
-
2420666252 Engine Wiring Harness Ass'y. Includes 2 to 14Engine Wiring Harness Ass'y. Includes 2 to 14
-
5278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
6278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
8278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
9278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
14278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15420951650 Cable ClampCable Clamp
-
16420866714 Tie RapTie Rap
-
17278003424 Harness BracketHarness Bracket
