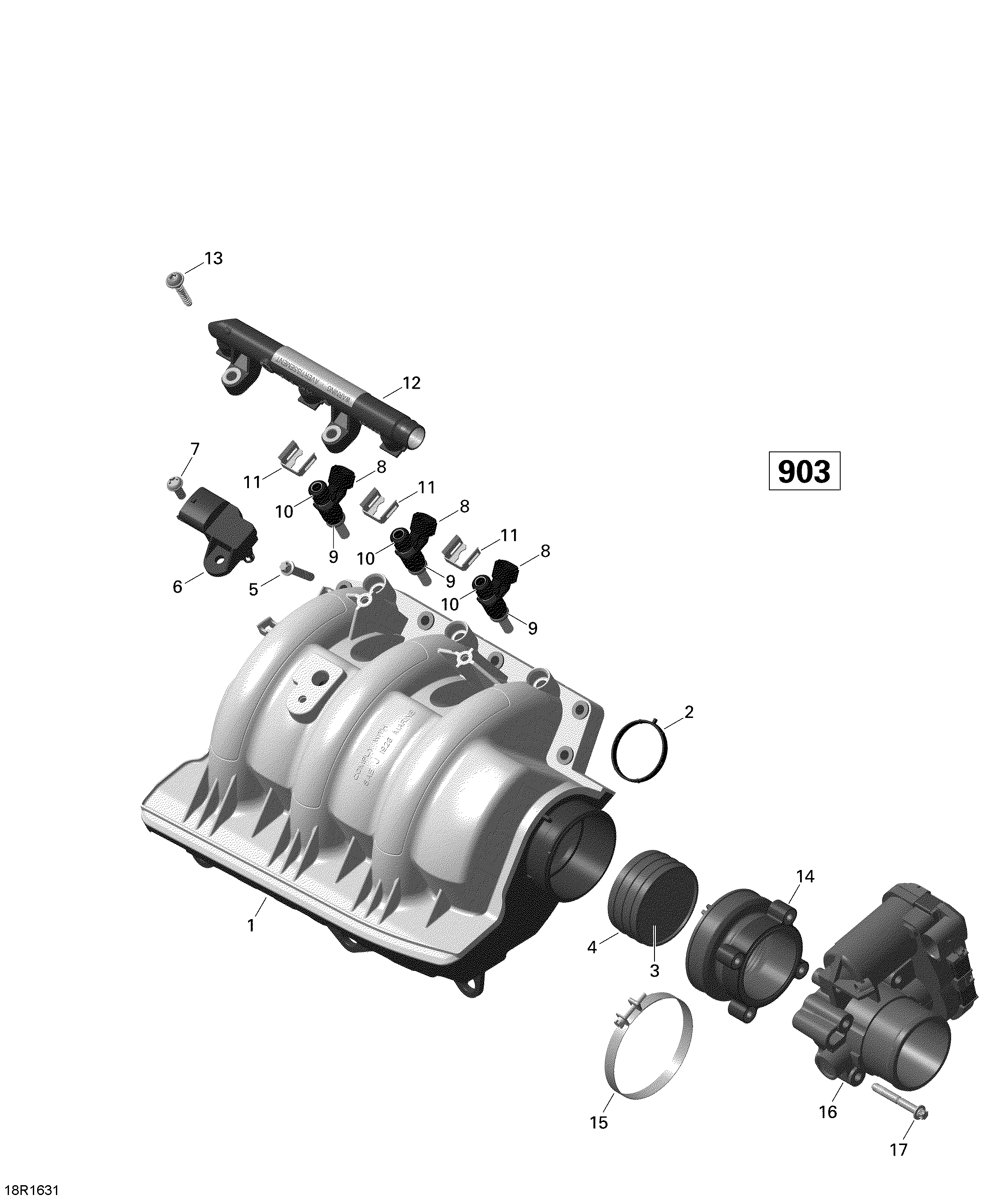

02- Air Intake Manifold and Throttle Body - 900-900 HO ACE для BRP SPARK - 2016

  • №
    Артикул
    Название
  • 1
    420867366 Air Intake Manifold Ass'y. Includes 1 to 4
    Air Intake Manifold Ass'y. Includes 1 to 4
  • 2
    420431662 Gasket
    Gasket
  • 3
    420667710 Flame Arrestor
    Flame Arrestor
  • 4
    420201210 Profile Ring
    Profile Ring
  • 5
    420840663 Flanged Torx Screw M6 X 30
    Flanged Torx Screw M6 X 30
  • 6
    707000995 Pressure And Temperature Sensor
    Pressure And Temperature Sensor
  • 7
    420641588 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 8
    420874838 Injection Valve Ass'y. Includes 8 to 10
    Injection Valve Ass'y. Includes 8 to 10
  • 9
    420431890 O-Ring
    O-Ring
  • 10
    420631220 O-Ring
    O-Ring
  • 11
    420853030 Clip
    Clip
  • 12
    420874965 Fuel Rail
    Fuel Rail
  • 13
    420441573 Flanged Torx Screw M6 X 30
    Flanged Torx Screw M6 X 30
  • 14
    420867090 Connector
    Connector
  • 15
    420251483 Hose Clamp
    Hose Clamp
  • 16
    420893144 Throttle Body
    Throttle Body
  • 17
    420441588 Flanged Torx Screw M6 X 50
    Flanged Torx Screw M6 X 50
