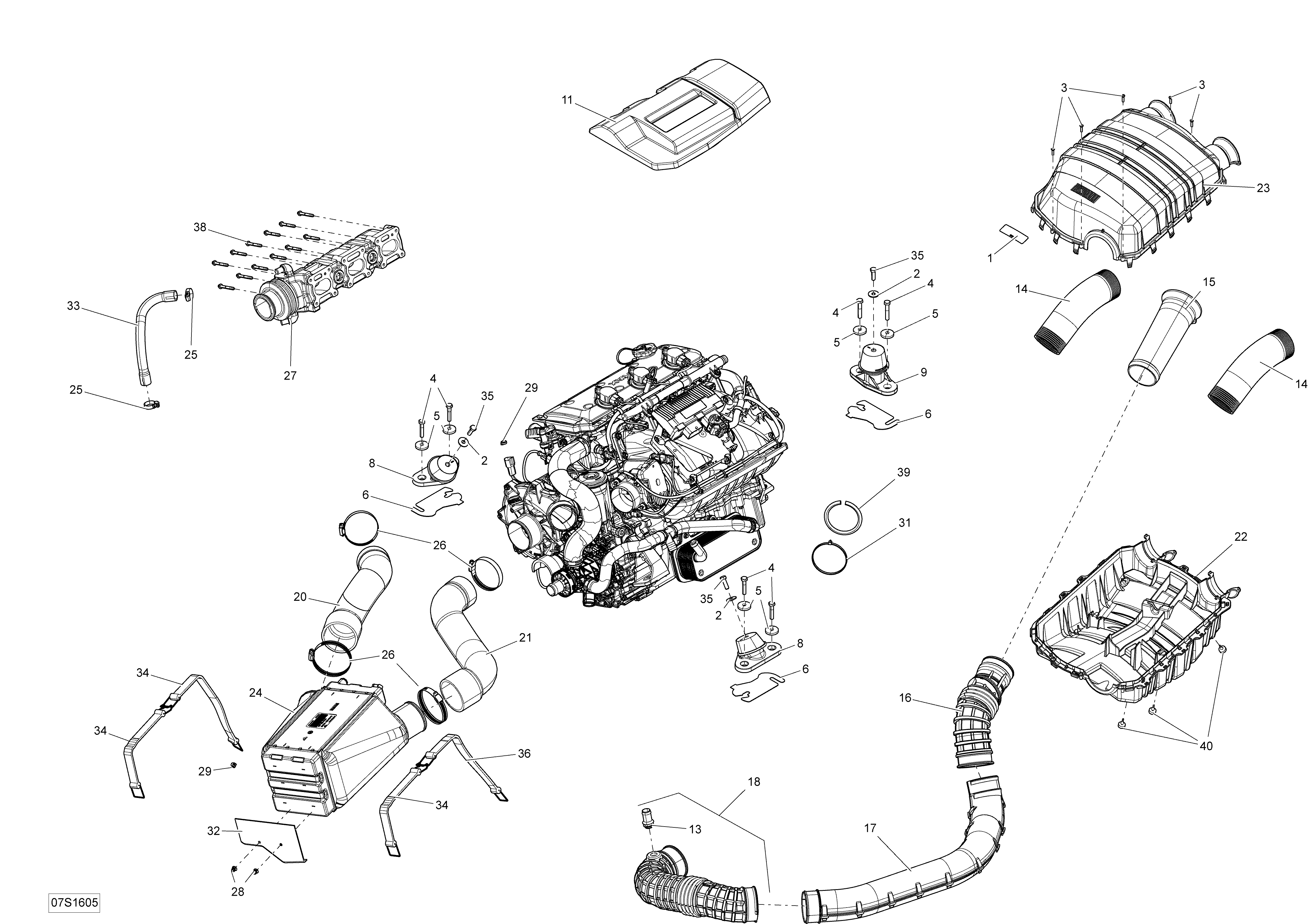

01- Engine - RXP-X 300 для BRP RXP - 2016
-
№АртикулНазвание
-
1219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
2234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
3250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
4250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
5250200018 Cone WasherCone Washer
-
6270000762 Shim 1.3 mmShim 1.3 mm
-
8270000882 Rubber MountRubber Mount
-
9270000885 Rubber MountRubber Mount
-
11270001002 Cover Ass'yCover Ass'y
-
13273000234 BreatherBreather
-
14273000290 Air Silencer HoseAir Silencer Hose
-
15273000359 Intake HoseIntake Hose
-
16273000306 Hose ConnectorHose Connector
-
17273000311 Intake Hose, CenterIntake Hose, Center
-
18273000328 Hose Intake, RearHose Intake, Rear
-
20273000338 Inlet HoseInlet Hose
-
21273000339 Outlet HoseOutlet Hose
-
22273000342 Airbox BaseAirbox Base
-
23273000343 Airbox CoverAirbox Cover
-
24276000335 Intercooler. Incl Zinc Anode 271001942Intercooler. Incl Zinc Anode 271001942
-
25293650051 Tridon Gear ClampTridon Gear Clamp
-
26293650179 Tridon ClampTridon Clamp
-
26293650244 Tridon Gear ClampTridon Gear Clamp
-
27274001553 Engine Exhaust ManifoldEngine Exhaust Manifold
-
28293730016 Dart, BlackDart, Black
-
29293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
31293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
32293830178 Pad-RubberPad-Rubber
-
33270000950 Formed HoseFormed Hose
-
34293850093 Strap. 2 RingsStrap. 2 Rings
-
34293850094 Fuel Tank Strap. 1 Hook 1 RingFuel Tank Strap. 1 Hook 1 Ring
-
35207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
36293850095 Fuel Tank StrapFuel Tank Strap
-
38420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
39415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
40708000759 Rubber StopperRubber Stopper
