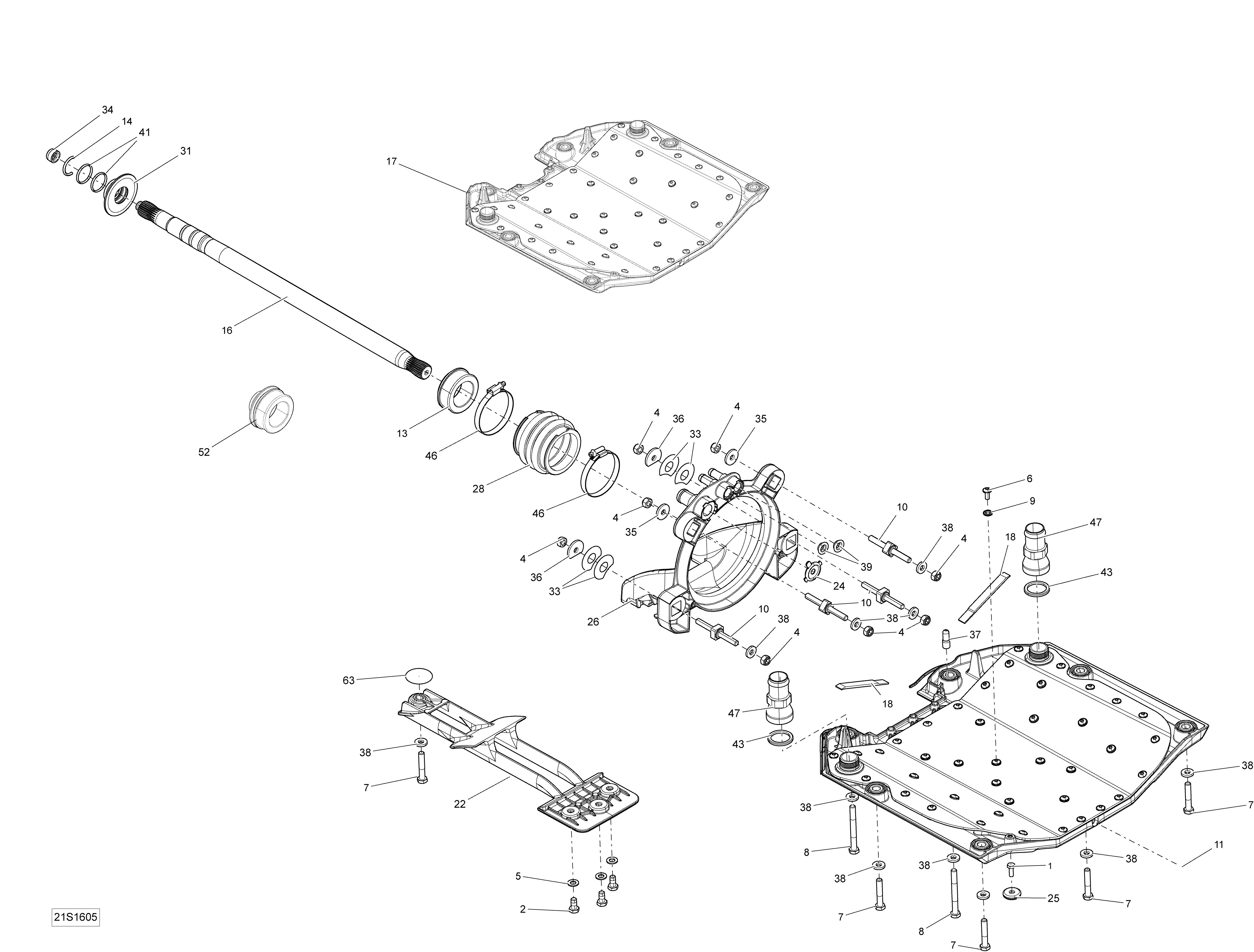

05- Propulsion для BRP RXP - 2016
‹-+›
-
№АртикулНазвание
-
1207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
2207381660 Hex. Screw M8 X 16, Scotch GripHex. Screw M8 X 16, Scotch Grip
-
4232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
5234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
7250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
8250000812 Hexagonal Head Cap Screw M8 X 75Hexagonal Head Cap Screw M8 X 75
-
9250200114 Sealing WasherSealing Washer
-
10250300046 Square StudSquare Stud
-
11250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
13271001420 Carbon RingCarbon Ring
-
14271001577 C-ClipC-Clip
-
16271001719 Drive ShaftDrive Shaft
-
17271001750 Riding Plate Ass'yRiding Plate Ass'y
-
18293250087 Gasket, NeopreneGasket, Neoprene
-
22271001867 Anodis Pump GridAnodis Pump Grid
-
24271001928 ReducerReducer
-
25271001920 Anode ZincAnode Zinc
-
26271001931 Pump SupportPump Support
-
28271001933 BellowBellow
-
31295501153 Carbon Ring KitCarbon Ring Kit
-
33272000053 Shim, 0.3 mmShim, 0.3 mm
-
34272000173 Drive Shaft PlugDrive Shaft Plug
-
35279000164 Flat WasherFlat Washer
-
36279000326 Flat WasherFlat Washer
-
37293000105 Cap PlugCap Plug
-
38293050001 Flat WasherFlat Washer
-
39293250084 Watertight SealWatertight Seal
-
41293300107 O-RingO-Ring
-
43293300121 O-RingO-Ring
-
46293650079 Norma ClampNorma Clamp
-
47293710111 Straight Plastic FittingStraight Plastic Fitting
-
52295501153 Carbon Ring KitCarbon Ring Kit
-
63293830047 Protector DiskProtector Disk
