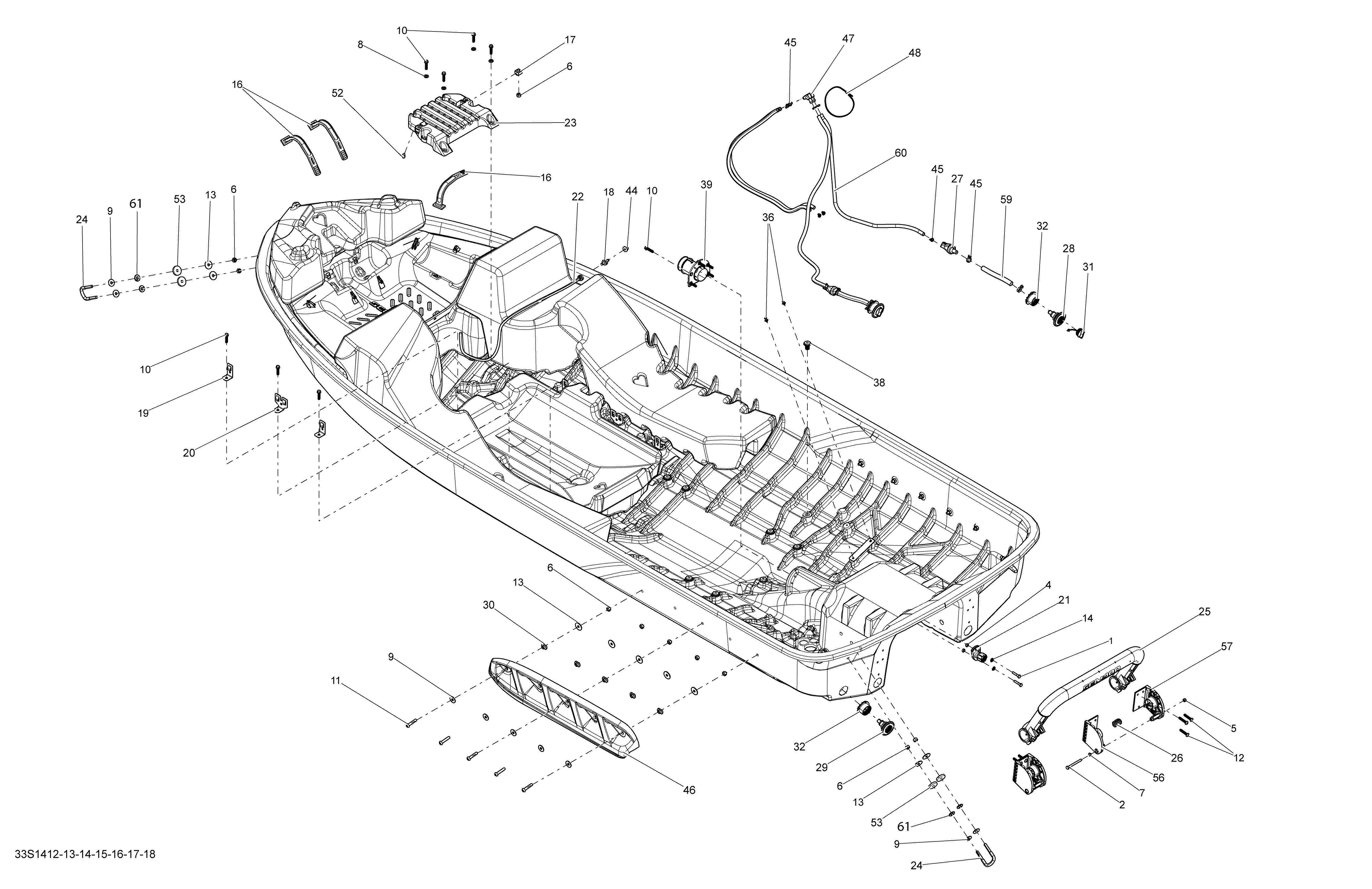

09- Hull _33S1414_LFI для BRP GTI SE 155 - 2014
-
№АртикулНазвание
-
1207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
4232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
5232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
6232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
7234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
9234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
10243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
10243163060 Flanged Hex. Screw M6.81 X 30Flanged Hex. Screw M6.81 X 30
-
11250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
12250000468 Torx ScrewTorx Screw
-
13250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14250200114 Sealing WasherSealing Washer
-
16269500408 StrapStrap
-
17269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
18275500499 Check ValveCheck Valve
-
19275500743 Strap Clip 90°Strap Clip 90°
-
20275500798 Double Strap Clip 90°Double Strap Clip 90°
-
21277001881 Cable Adaptor Ass'yCable Adaptor Ass'y
-
22275500446 Hose 6 mmHose 6 mm
-
23278002866 Battery Base Ass'yBattery Base Ass'y
-
24292000933 U-ClampU-Clamp
-
25292001204 Overmolded BarOvermolded Bar
-
26292001259 SpringSpring
-
27292001310 Bailer Ass'yBailer Ass'y
-
28292001315 Drain Neck Ass'yDrain Neck Ass'y
-
29292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
30292001349 Spacer SponsonSpacer Sponson
-
31292001352 Plug Drain Ass'yPlug Drain Ass'y
-
32292001371 BushingBushing
-
36293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
38293450290 Insert Capuchon M8Insert Capuchon M8
-
39293450304 Hull InsertHull Insert
-
44293720029 GrommetGrommet
-
45293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
46292001514 RH SponsonRH Sponson
-
46292001513 LH SponsonLH Sponson
-
47293710117 Elbow Fitting 90°Elbow Fitting 90°
-
48293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
52293830005 Rubber BumperRubber Bumper
-
53293830037 Rubber WasherRubber Washer
-
56292001509 A Section SupportA Section Support
-
57292001510 B Section SupportB Section Support
-
59275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
60415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
