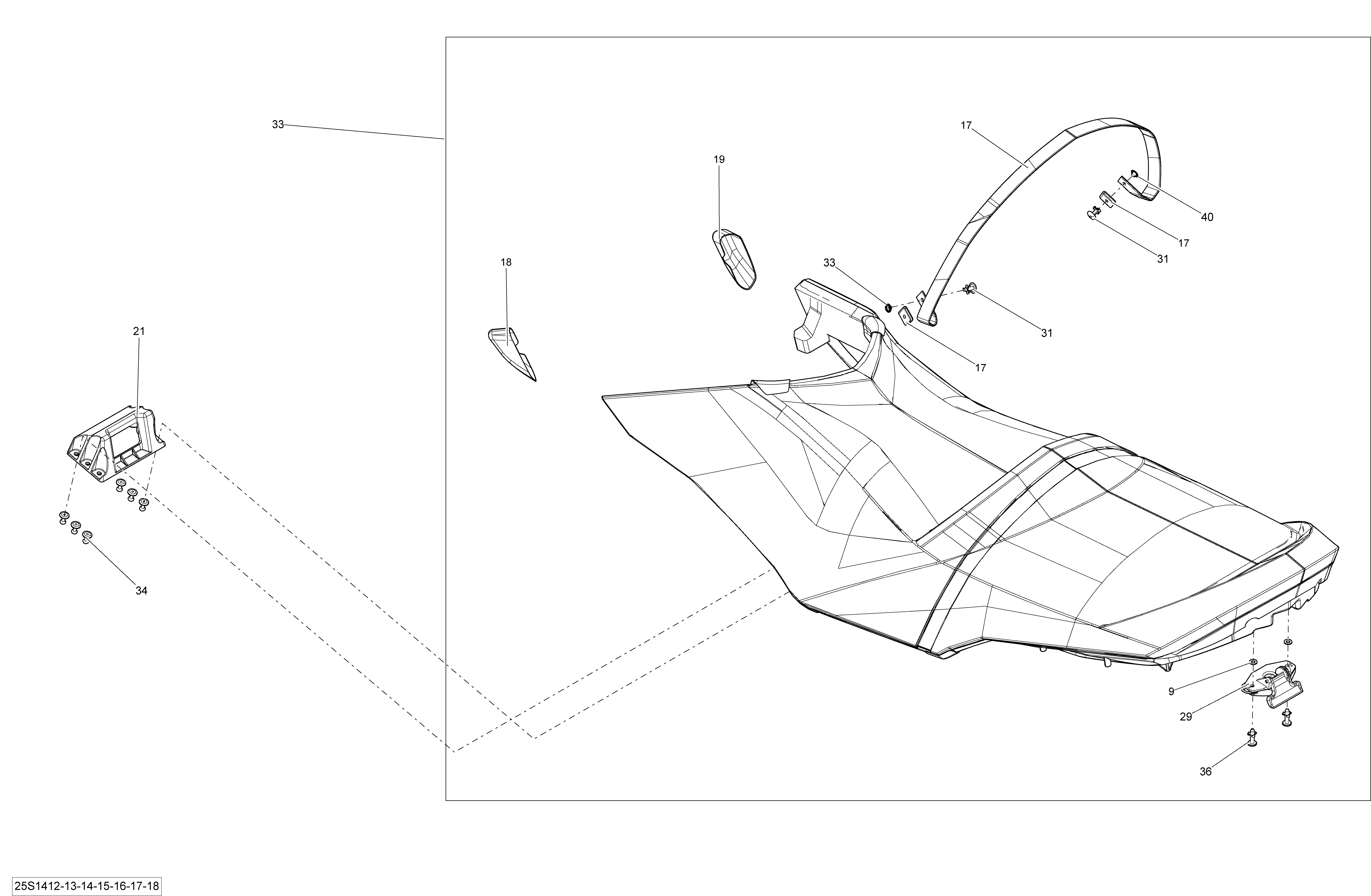

09- Seat _25S1414 для BRP GTI SE 155 - 2014
-
№АртикулНазвание
-
9234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
17269002087 Silver Seat StrapSilver Seat Strap
-
18269001937 LH Seat ProtectorLH Seat Protector
-
19269001994 RH Seat ProtectorRH Seat Protector
-
21269002151 Seat ReceptacleSeat Receptacle
-
29269700109 Latch Ass'yLatch Ass'y
-
31293150067 RivetRivet
-
33269002804 Seat Ass'ySeat Ass'y
-
34293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
36293150151 Rivet 1/4''Rivet 1/4''
-
40293720067 GrommetGrommet
