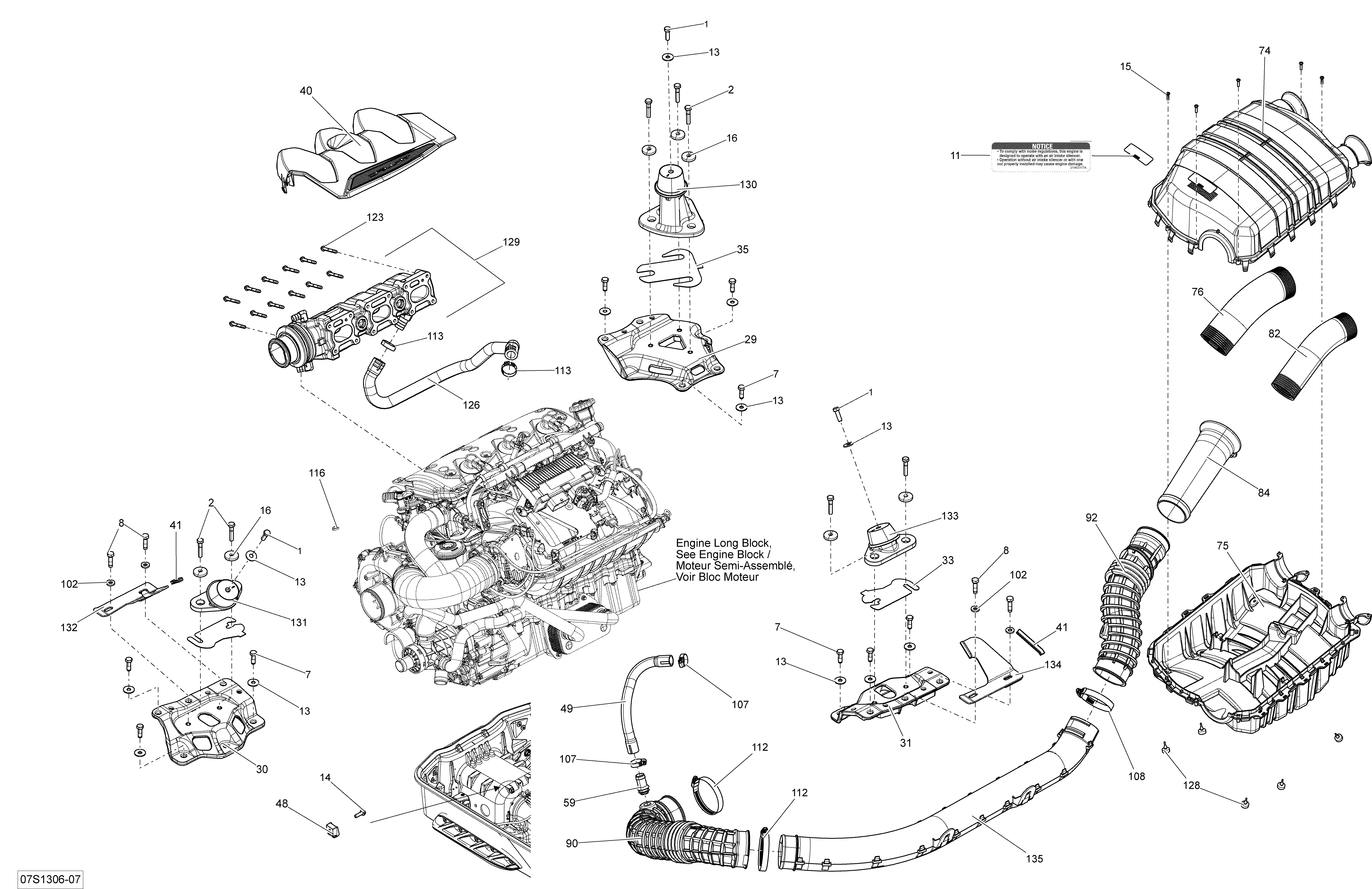

01- Engine And Air Intake Silencer для BRP WAKE PRO 215 - 2013
-
№АртикулНазвание
-
1207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
2207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
7250000525 Hex. Screw M8 X 25, Scotch Grip. GTX, RXT, WAKE PRO 215Hex. Screw M8 X 25, Scotch Grip. GTX, RXT, WAKE PRO 215
-
8250000526 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
11219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
13234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14243162060 Hex. Flanged Screw M6.81 x 20Hex. Flanged Screw M6.81 x 20
-
15250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
16250200018 Cone WasherCone Washer
-
29270000767 SpacerSpacer
-
30270000763 SpacerSpacer
-
31270000766 SpacerSpacer
-
33270000762 Shim 1.3 mmShim 1.3 mm
-
35270000770 Shim 1.3 mmShim 1.3 mm
-
40270000804 Engine CoverEngine Cover
-
41204610371 Trim, BlackTrim, Black
-
48270000854 Strap AnchorStrap Anchor
-
49270000864 Formed HoseFormed Hose
-
59273000234 BreatherBreather
-
74273000288 Air Silencer UpperAir Silencer Upper
-
75273000289 Air Silencer LowAir Silencer Low
-
76273000290 Air Silencer HoseAir Silencer Hose
-
82273000299 Air Silencer TubeAir Silencer Tube
-
84273000301 Intake HoseIntake Hose
-
90273000317 Rear Hose IntakeRear Hose Intake
-
92273000322 Hose ConnectorHose Connector
-
102293050001 Flat WasherFlat Washer
-
107293650051 Tridon Gear ClampTridon Gear Clamp
-
108293650179 Tridon ClampTridon Clamp
-
112293650179 Tridon ClampTridon Clamp
-
113293650217 Crimp ClampCrimp Clamp
-
116293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
123420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
126420822174 Formed HoseFormed Hose
-
128708000759 Rubber StopperRubber Stopper
-
129274001434 Exhaust ManifoldExhaust Manifold
-
130270000886 Rubber MountRubber Mount
-
131270000882 Rubber MountRubber Mount
-
132270000796 LH StopperLH Stopper
-
133270000882 Rubber MountRubber Mount
-
134270000799 RH StopperRH Stopper
-
135273000233 Hose IntakeHose Intake
