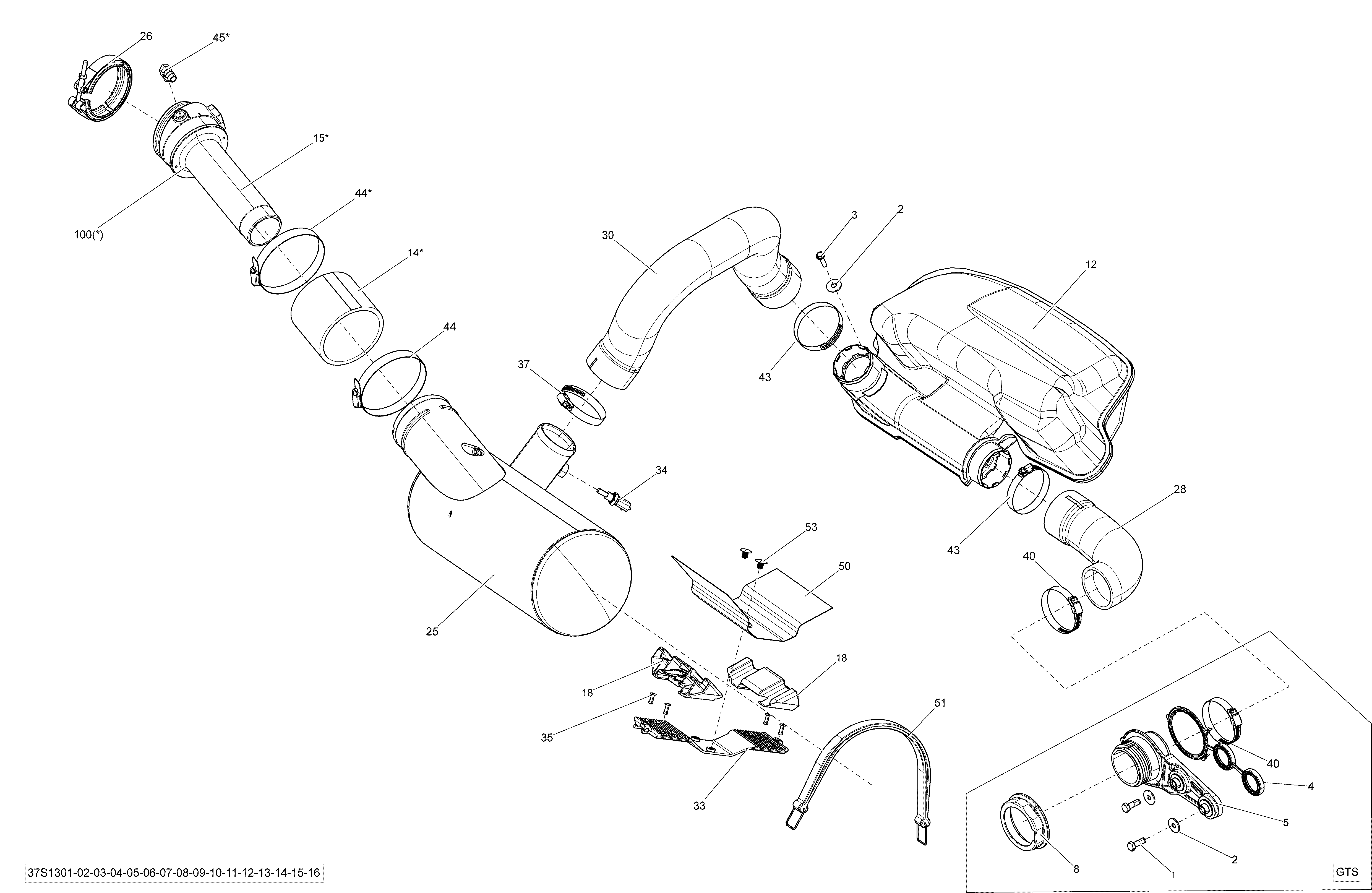

01- Exhaust System для BRP WAKE PRO 215 - 2013

  • №
    Артикул
    Название
  • 1
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 2
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 3
    243162560 Hex. Flanged Screw M6.81 X 25, Plastite
    Hex. Flanged Screw M6.81 X 25, Plastite
  • 4
    268000105 RH Formed Seal
    RH Formed Seal
  • 5
    268000130 RH Fixing Plate Ass'y
    RH Fixing Plate Ass'y
  • 8
    274000224 Nut 72 mm
    Nut 72 mm
  • 12
    274001366 Resonator
    Resonator
  • 14
    274001348 Hose
    Hose
  • 15
    274001354 Head Pipe Ass'y
    Head Pipe Ass'y
  • 18
    274001358 Stopper
    Stopper
  • 25
    274001384 Muffler
    Muffler
  • 26
    274001417 Exhaust Clamp
    Exhaust Clamp
  • 28
    274001423 Exhaust Hose, Rear. GTI, GTR, GTS, WAKE 155
    Exhaust Hose, Rear. GTI, GTR, GTS, WAKE 155
  • 28
    274001423 Exhaust Hose, Rear. GTX, RXT, RXT-X, WAKE PRO 215
    Exhaust Hose, Rear. GTX, RXT, RXT-X, WAKE PRO 215
  • 28
    274001447 Rear Exhaust Hose. RXP
    Rear Exhaust Hose. RXP
  • 30
    274001458 Front Formed Exhaust Hose
    Front Formed Exhaust Hose
  • 33
    274001479 Exhaust Muffler Support
    Exhaust Muffler Support
  • 34
    278002895 Temperature sensor
    Temperature sensor
  • 35
    293150043 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 37
    293650179 Tridon Clamp
    Tridon Clamp
  • 40
    293650179 Tridon Clamp
    Tridon Clamp
  • 43
    293650179 Tridon Clamp
    Tridon Clamp
  • 44
    293650202 Gear Clamp
    Gear Clamp
  • 45
    293700023 Elbow Fitting 90°
    Elbow Fitting 90°
  • 50
    293830153 Pad Rubber
    Pad Rubber
  • 51
    293850093 Strap
    Strap
  • 53
    414939500 Dart
    Dart
  • 100
    274001489 Head Pipe Ass'y
    Head Pipe Ass'y
