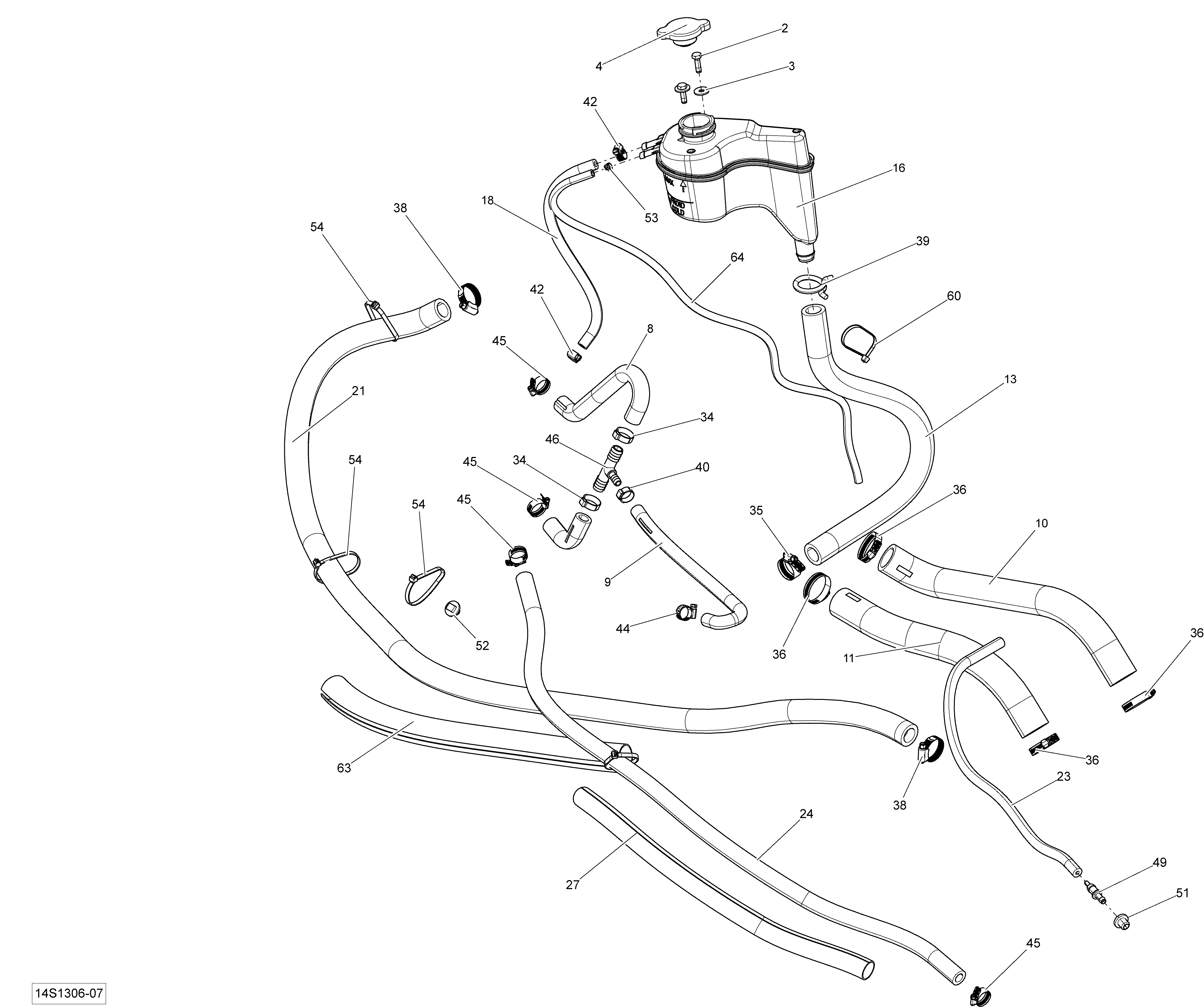

01- Cooling System для BRP WAKE PRO 215 - 2013
-
№АртикулНазвание
-
2207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
3234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
4276000100 Pressure CapPressure Cap
-
8276000244 Formed HoseFormed Hose
-
9276000246 Formed HoseFormed Hose
-
10276000240 Radiator HoseRadiator Hose
-
11276000241 Radiator HoseRadiator Hose
-
13276000099 Hose 19 mmHose 19 mm
-
16276000265 Coolant TankCoolant Tank
-
18275500549 Hose 1/4''Hose 1/4''
-
21276000099 Hose 19 mmHose 19 mm
-
24276000151 Hose 12.5 mmHose 12.5 mm
-
27409902200 Tubing 25 mmTubing 25 mm
-
34293650012 Oetiker ClampOetiker Clamp
-
35293650019 Tridon Gear ClampTridon Gear Clamp
-
36293650185 Tridon Gear ClampTridon Gear Clamp
-
38293650051 Tridon Gear ClampTridon Gear Clamp
-
39293650115 Spring ClampSpring Clamp
-
40293650030 Oetiker ClampOetiker Clamp
-
42293650170 Tridon Gear ClampTridon Gear Clamp
-
44293650171 Tridon Gear ClampTridon Gear Clamp
-
45293650172 Tridon Gear ClampTridon Gear Clamp
-
46293710116 T-FittingT-Fitting
-
49293710133 Fitting StraigFitting Straig
-
51293720029 GrommetGrommet
-
52293730040 Mount DartMount Dart
-
53293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
54293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
60414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
63409902200 Tubing 25 mmTubing 25 mm
-
64415080200 Hose, PolyurethaneHose, Polyurethane
