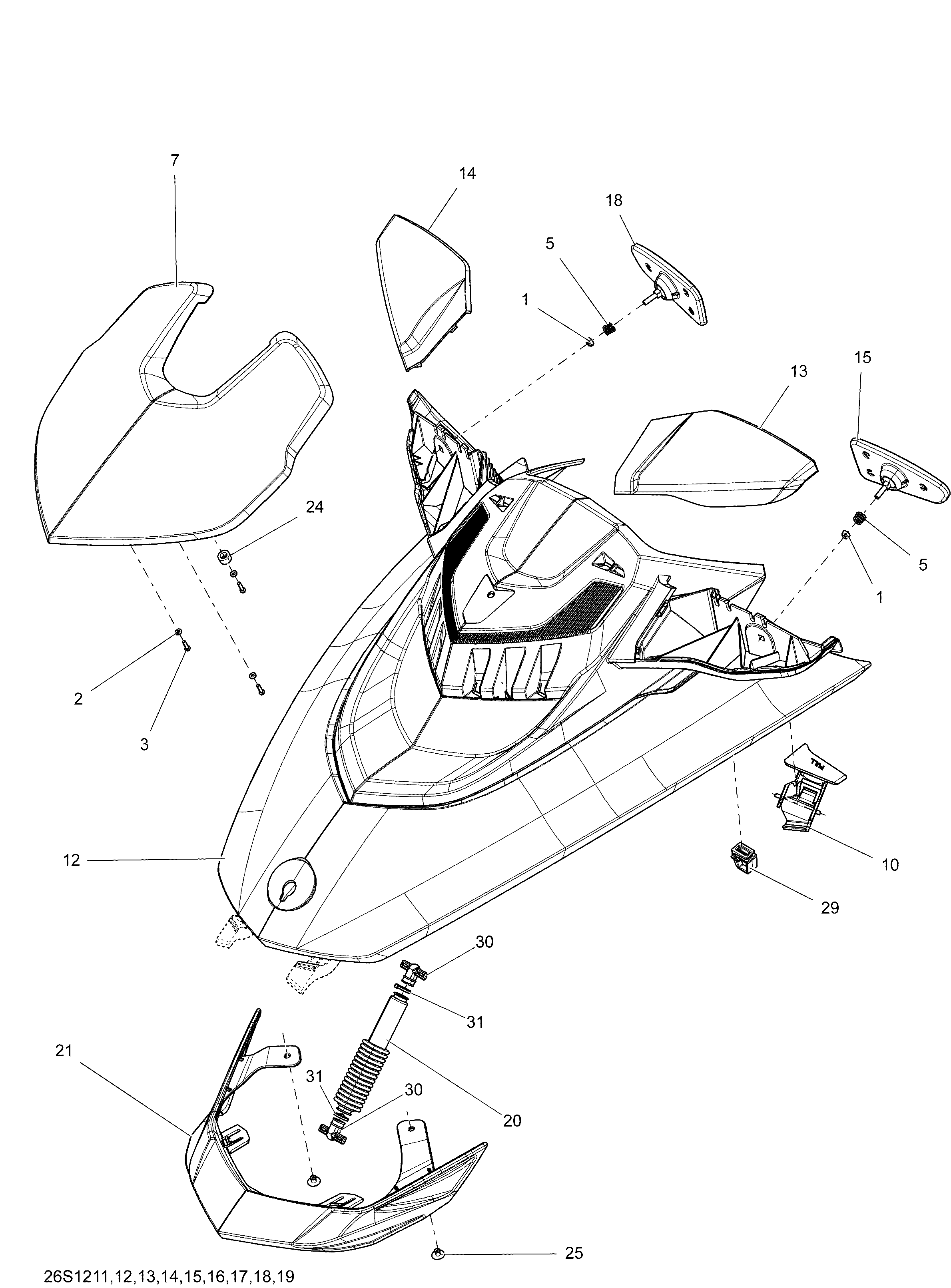

09- Front Cover для BRP RXT-X aS 260 & RS. 2012 - 2012

  • №
    Артикул
    Название
  • 1
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 2
    234041600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 3
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 5
    269500453 Mirror Spring
    Mirror Spring
  • 7
    269501888 Front Upper Deflector, Yellow. X, XRS
    Front Upper Deflector, Yellow. X, XRS
  • 10
    269501697 LH Latch
    LH Latch
  • 10
    269501702 RH Latch
    RH Latch
  • 12
    269501843 Hood Ass'y, Black. RXT aS
    Hood Ass'y, Black. RXT aS
  • 13
    269501772 LH Mirror Housing, Black. X, XRS
    LH Mirror Housing, Black. X, XRS
  • 14
    269501771 RH Mirror Housing, Black. X, XRS
    RH Mirror Housing, Black. X, XRS
  • 15
    269501918 LH Mirror Ass'y
    LH Mirror Ass'y
  • 18
    269501920 RH Mirror Ass'y
    RH Mirror Ass'y
  • 20
    269501664 Shock Absorber. Includes 30 and 31
    Shock Absorber. Includes 30 and 31
  • 24
    291001203 Spacer
    Spacer
  • 29
    293830135 Rubber Bumper
    Rubber Bumper
  • 30
    269501717 Shock End Piece
    Shock End Piece
  • 31
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
