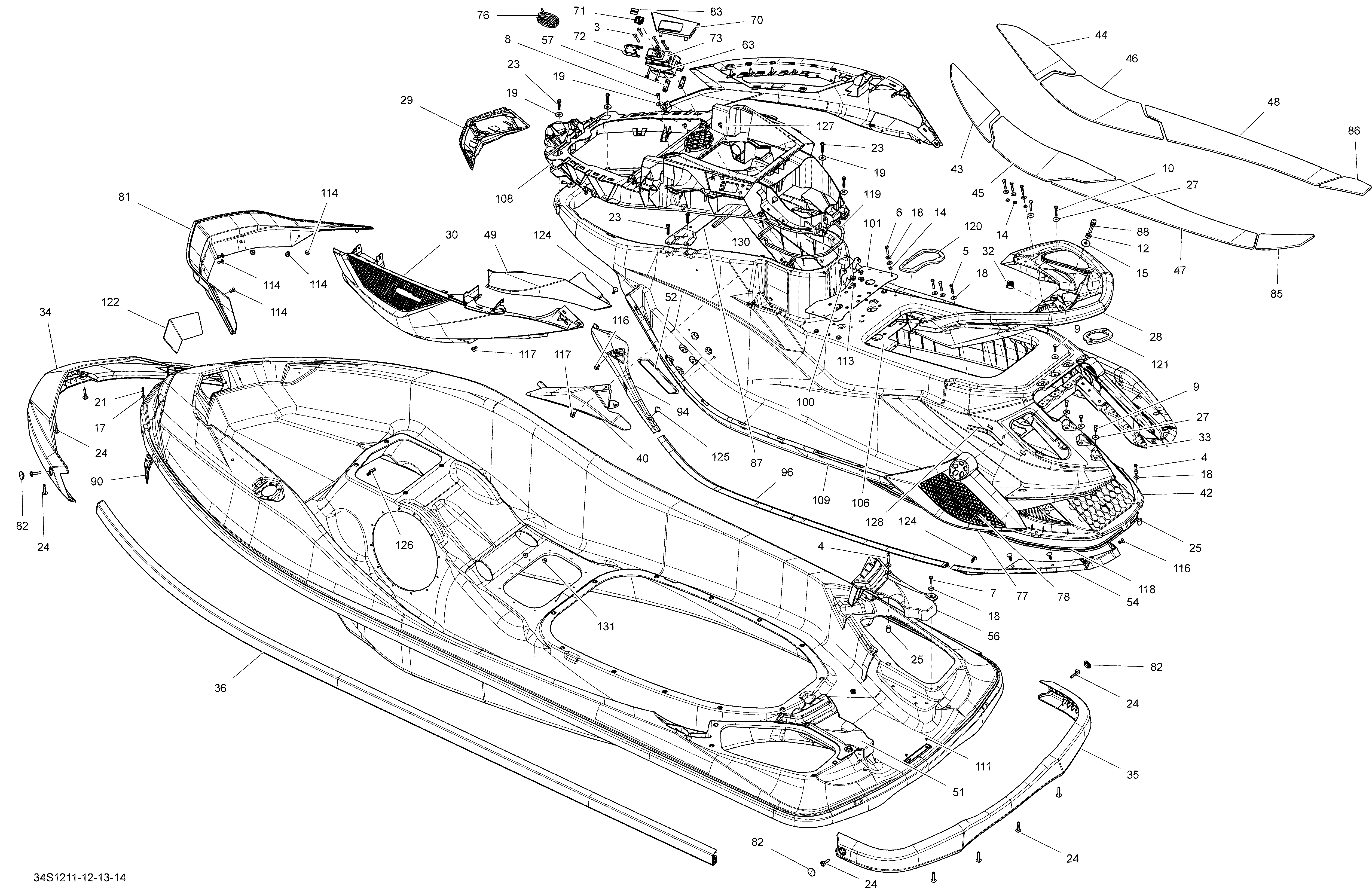

09- Body для BRP RXT-X aS 260 & RS. 2012 - 2012

  • №
    Артикул
    Название
  • 4
    205463560 Socket Head Screw M6 X 35
    Socket Head Screw M6 X 35
  • 5
    207063060 Hex. Screw M6 X 30
    Hex. Screw M6 X 30
  • 6
    207162560 Hex. Screw M6 X 25
    Hex. Screw M6 X 25
  • 7
    207162560 Hex. Screw M6 X 25
    Hex. Screw M6 X 25
  • 8
    207361660 Hex. Screw M6 X 16, Scotch Grip
    Hex. Screw M6 X 16, Scotch Grip
  • 9
    207362060 Hex. Screw M6 X 20, Scotch Grip
    Hex. Screw M6 X 20, Scotch Grip
  • 10
    207363560 Screw Hex. M6 X 35, Scotch Grip
    Screw Hex. M6 X 35, Scotch Grip
  • 12
    232100600 Hex. Jam Nut M10
    Hex. Jam Nut M10
  • 14
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 15
    234002600 Flat Washer 10 mm, Stainless
    Flat Washer 10 mm, Stainless
  • 17
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 18
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 19
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 21
    241142560 Hex. Flanged Screw K40 X 25
    Hex. Flanged Screw K40 X 25
  • 23
    243163560 Plastite Hex. Screw M6.8 X 35
    Plastite Hex. Screw M6.8 X 35
  • 24
    250000399 Hexagonal Cap Screw M6 X35
    Hexagonal Cap Screw M6 X35
  • 25
    250100150 Expansion Nut M6 X 1
    Expansion Nut M6 X 1
  • 27
    250200022 Flat Washer M6.6 X 22
    Flat Washer M6.6 X 22
  • 28
    291004621 Black Rear Handle
    Black Rear Handle
  • 29
    269501797 Front Grid
    Front Grid
  • 30
    291003504 RH Front Moulding Ass'y
    RH Front Moulding Ass'y
  • 30
    291003507 LH Front Moulding Ass'y
    LH Front Moulding Ass'y
  • 32
    271001732 Elastic Nut M10 Housing
    Elastic Nut M10 Housing
  • 33
    279000214 Rear Pivot Ass'y
    Rear Pivot Ass'y
  • 34
    291002588 Front Bumber
    Front Bumber
  • 35
    291002592 Rear Bumber
    Rear Bumber
  • 36
    291003050 Lateral Bumper
    Lateral Bumper
  • 40
    291003192 RH Seat Pad, Black
    RH Seat Pad, Black
  • 40
    291003193 LH Seat Pad, Black
    LH Seat Pad, Black
  • 42
    291002763 Deck Extension Ass'y
    Deck Extension Ass'y
  • 43
    291002607 LH Front Carpet
    LH Front Carpet
  • 44
    291002608 RH Front Carpet
    RH Front Carpet
  • 45
    291003463 LH Center Front Carpet
    LH Center Front Carpet
  • 46
    291003464 RH Center Front Carpet
    RH Center Front Carpet
  • 47
    291003465 LH Center Rear Carpet
    LH Center Rear Carpet
  • 48
    291003466 RH Center Rear Carpet
    RH Center Rear Carpet
  • 49
    291002920 LH Upper Cap
    LH Upper Cap
  • 49
    291002922 RH Upper Cap
    RH Upper Cap
  • 51
    291002658 LH Rear Grill
    LH Rear Grill
  • 52
    291002694 LH Footrest Cover
    LH Footrest Cover
  • 52
    291002695 RH Footrest Cover
    RH Footrest Cover
  • 54
    291002696 LH Rear Scraper Joint
    LH Rear Scraper Joint
  • 54
    291002697 RH Rear Scraper Joint
    RH Rear Scraper Joint
  • 56
    291002698 RH Rear Grill
    RH Rear Grill
  • 70
    291002756 Front Rewinder Cap
    Front Rewinder Cap
  • 77
    291002739 LH Lateral Rear Trim
    LH Lateral Rear Trim
  • 77
    291002741 RH Lateral Rear Trim
    RH Lateral Rear Trim
  • 78
    291002740 LH Rear Side Grille
    LH Rear Side Grille
  • 78
    291002742 RH Rear Side Grille
    RH Rear Side Grille
  • 81
    291003081 Body Deflector
    Body Deflector
  • 82
    291002744 Bumber Cap
    Bumber Cap
  • 83
    291002754 Button Cap
    Button Cap
  • 85
    291002775 LH Rear Carpet
    LH Rear Carpet
  • 86
    291002776 RH Rear Carpet
    RH Rear Carpet
  • 87
    291002778 Module Stifner
    Module Stifner
  • 88
    291002784 Seat Stud
    Seat Stud
  • 90
    291002818 Deck Nose
    Deck Nose
  • 94
    291002837 LH Front Scraper Joint
    LH Front Scraper Joint
  • 94
    291002838 RH Front Scraper Joint
    RH Front Scraper Joint
  • 96
    291002839 Midle Sraper Joint
    Midle Sraper Joint
  • 100
    291002865 Seat Pivot
    Seat Pivot
  • 101
    291003305 Upper Reinforcement
    Upper Reinforcement
  • 106
    291003306 Central Reinforcement
    Central Reinforcement
  • 108
    291003680 Front Module
    Front Module
  • 109
    291003462 Upper Body Ass'y
    Upper Body Ass'y
  • 111
    293000014 Snap Cap, Black
    Snap Cap, Black
  • 113
    293150186 Pop Rivet 3/16
    Pop Rivet 3/16
  • 114
    293150123 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 116
    293150186 Pop Rivet 3/16
    Pop Rivet 3/16
  • 117
    293150123 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 118
    293250185 Lip Seal
    Lip Seal
  • 119
    293250200 Neoprene Seal
    Neoprene Seal
  • 120
    293250205 Lip Seal
    Lip Seal
  • 121
    293250209 Lip Seal
    Lip Seal
  • 122
    293250231 Gasket
    Gasket
  • 124
    293730006 Dart, Black
    Dart, Black
  • 125
    293730010 Dart, Black
    Dart, Black
  • 126
    293750025 Tie-Rap Mount
    Tie-Rap Mount
  • 127
    293830005 Rubber Plug
    Rubber Plug
  • 128
    293250087 Gasket, Neoprene
    Gasket, Neoprene
  • 130
    271000110 Protection Trim
    Protection Trim
  • 131
    572051500 Cap
    Cap
  • 131
    293000112 Double Cap
    Double Cap
